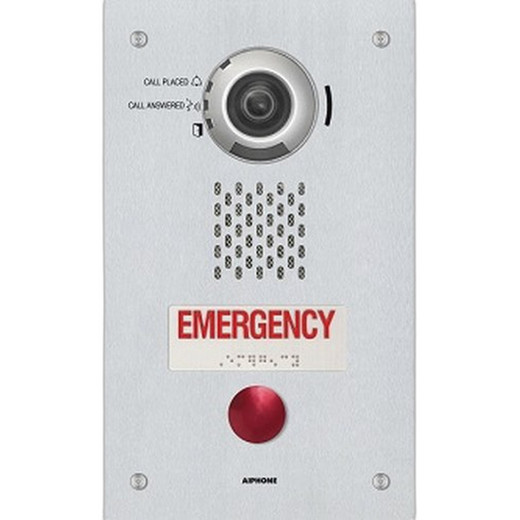

Aiphone IX-DVF-RA IP Video Emergency Call Station

Aiphone IX-DVF-RA IP Video Emergency Call Station

Overview

The Aiphone IX-DVF-RA is a flush-mounted, IP-based video emergency call station engineered for outdoor and high-traffic environments where weather resistance and vandal protection are non-negotiable. Built around a 1.23 megapixel fixed color camera with two-way audio, the unit delivers video documentation of emergency situations while enabling direct network communication to response teams via SIP and ONVIF protocols. Stainless steel construction with raised lettering and Braille signage satisfies ADA requirements for rescue assistance, making it suitable for public facilities, campus security perimeters, parking structures, loading docks, and secure building entrances where reliability under stress is expected.

Key Features

• 1.23 Megapixel Fixed Color Camera: A ⅓" CMOS sensor captures clear still and video documentation of emergency situations. Vertical lens adjustment at installation (+15°, 0°, or -8°) lets you fine-tune the viewing angle to match the deployment height and incident zone — critical in tight spaces like call stations mounted on poles or building corners where a few degrees of tilt determines whether the caller's face is in frame.
• IP65 Weather and Vandal Resistant: IP65 ingress protection and IK08 impact resistance means this unit survives direct rain, salt spray, and deliberate strikes without requiring additional weatherproof housings. Skip this if you need full submersion protection (that requires IP67 or higher), but for outdoor wall mounts, uncovered loading docks, and coastal environments, IP65 is your baseline.
• PoE+ Power with Pass-Through: Draws 5.28W nominal via IEEE 802.3at Type 2 PoE+, eliminating the need for a separate power supply or conduit run. The integrated PoE pass-through allows you to daisy-chain another networked device on the same cable pair — useful when pairing with an access control reader or additional sensor on the same pole or mounting surface, reducing labor and cabling costs.
• SIP Compliant with ONVIF Profile S: Native SIP integration connects directly to your hosted phone system or on-premises PBX without middleware. ONVIF Profile S support opens the door to third-party video management platforms (Milestone, Genetec, Hanwha, etc.), avoiding vendor lock-in and allowing the unit to slot into existing VMS infrastructure.
• Audio and Video Recording to microSD Card: A microSD card slot (card not included) enables local capture and storage of live conversations directly on the station — useful for compliance documentation, incident review, and sites where a connection to a central NVR is unreliable or not yet deployed. No external recorder needed; incidents are timestamped and preserved onboard.
• ADA Compliant Emergency Button: Raised lettering, Braille signage, and a clearly marked button trigger audible and visual feedback (green call, orange communication, blue door release). This design meets accessibility standards and provides immediate tactile and audio confirmation that the call was received — eliminating confusion in high-stress moments.
• Dual Contact Outputs and Six Trigger Inputs: Two programmable relay outputs support door unlock, paging system activation, or external alarm integration. Six trigger inputs enable logic-based responses to button press, station status, or external sensor (motion, door position, emergency override) — turning the call station into a lightweight automation node for perimeter access or mass notification scenarios.
• Stainless Steel Faceplate and Mounting Options: Corrosion-resistant construction rated for salt-spray environments and high-wear locations. Flush-mount design uses an included back box, or choose optional surface-mount enclosures (SBX-IDVFRA, WB-CA, WB-HA, WB-CE, WB-HE) for installations where cutting a hole in structural material is not feasible or desired.
• Wide Operating Temperature Range: Rated -40°F to 140°F (-40°C to 60°C), permitting deployment in unheated parking structures, outdoor loading docks, and extreme climates without supplemental thermal management — a real advantage in northern or desert sites where standard equipment degrades rapidly.
• H.264 and Motion JPEG Dual Compression: H.264 encoding keeps bandwidth and storage overhead low on congested networks; Motion JPEG mode delivers frame-by-frame clarity for forensic review when bandwidth is not the constraint. Minimum illumination of 5 lux supports low-light operation at dusk or under inadequate outdoor lighting, though supplemental IR or white-light illumination improves detection of facial details.
• 802.1X Network Authentication: Port-level authentication prevents unauthorized devices from joining your network, integrating with enterprise access control policies and reducing exposure to rogue endpoints on shared cabling runs.
• Programmable Call Routing and Paging: Configurable to call up to 20 stations with customizable audio prompts — enabling hierarchical escalation (first attempt to security, then to facility management, then to emergency services) without manual intervention. A 600Ω output supports integration with facility-wide paging or IP-based communication systems, bridging voice and data in unified emergency workflows.

Integration and Compatibility

The IX-DVF-RA integrates seamlessly with Aiphone's IX and IXG series device ecosystem, supporting mixed deployments of intercoms, door stations, and emergency endpoints across a single network. ONVIF Profile S compliance enables integration with industry-standard video management platforms, ensuring the unit can coexist in multi-vendor surveillance architectures. SIP compliance allows direct connection to hosted phone systems (Microsoft Teams, Cisco Webex Calling, Vonage, etc.) or on-premises PBX infrastructure, routing emergency calls through your existing voice network rather than requiring a separate emergency-only circuit.

Deployment Considerations

Vertical lens adjustment at installation is a one-time task — there is no remote pan/tilt capability, so camera angle must be set during commissioning. The 1.23MP resolution is adequate for incident documentation and caller identification in typical emergency scenarios, but facial detail recognition over distance of 15+ feet requires close attention to lighting and lens angle. Plan supplemental white-light or IR illumination if the call station will be used at night or in shadowed locations. MicroSD card capacity and frame rate settings directly affect local storage duration; a 256GB card at 30 fps H.264 typically holds 4–7 days of continuous recording, depending on motion and bitrate tuning.

Why Choose This Model

Select the IX-DVF-RA if you need a hardened, all-in-one emergency communication endpoint for outdoor or high-traffic environments where weather and vandal resistance are not optional. The combination of PoE+ power, SIP and ONVIF integration, local recording, and ADA-compliant button design eliminate the need for external power supplies, separate recording infrastructure, or custom mounting. The stainless steel construction and -40°F to 140°F operating range make it suitable for unheated structures and coastal salt-spray exposure where standard plastic-housed equipment fails within years. If your deployment is indoor-only, climate-controlled, and does not require emergency call functionality, consider a lower-cost IP camera variant. If you need pan/tilt remote camera control, look to Aiphone's PTZ-equipped models in the IX series.

Frequently Asked Questions

Q: Does the IX-DVF-RA require a separate NVR or VMS to store video?

A: No. The built-in microSD card slot allows local video and audio recording directly on the station, independent of any external recorder. You can also stream live video to a VMS via ONVIF or RTSP for centralized monitoring and retention, but the microSD card provides a standalone fallback if network connectivity is interrupted.

Q: Can the IX-DVF-RA integrate with third-party video management platforms?

A: Yes. ONVIF Profile S compliance enables integration with Milestone XProtect, Genetec Security Center, Hanwha Wisenet, and other ONVIF-capable VMS platforms. SIP support also allows the emergency call function to route through hosted phone systems or on-premises PBX infrastructure.

Q: What is the power draw, and will a standard PoE switch support it?

A: The IX-DVF-RA draws 5.28W nominal and operates on IEEE 802.3at Type 2 PoE+ (30W per port). A standard 802.3af PoE switch (15.4W per port) is insufficient; you must use a PoE+ switch with at least 30W available per port. A single high-power PoE+ switch port can comfortably support this unit with room for a pass-through downstream device.

Q: Is the camera lens adjustable after installation?

A: Vertical lens angle adjustment (+15°, 0°, or -8°) is performed at installation time and is not remotely adjustable. Once mounted, angle changes require physical access to the unit. Plan your mounting height and angle carefully during the site survey to ensure the camera frame captures the caller's face and surrounding area.

Q: What microSD card capacity is recommended?

A: A 256GB microSD card is typical for 4–7 days of continuous H.264 recording at 30 fps. Capacity depends on video bitrate, frame rate, and motion activity. For longer retention without an external recorder, consider a higher-capacity card (up to 512GB) or configure motion-triggered recording to reduce storage consumption.

Q: Can the IX-DVF-RA be used indoors?

A: Yes, but it is engineered for outdoor and high-traffic exposed environments. Its stainless steel construction and IP65 rating make it over-built for climate-controlled indoor lobbies or reception areas. For indoor-only emergency call stations, lower-cost non-vandal-resistant variants may be available in the Aiphone lineup.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Aiphone IX-DVF-RA (often searched as IX DVF RA) is a well-engineered emergency endpoint that does not try to be a surveillance camera masquerading as an emergency call station. Its 1.23MP resolution and fixed lens are intentional constraints designed to keep power draw under 5.3W, PoE+ infrastructure requirements modest, and deployment simple. If you're wiring call stations across a campus or parking perimeter, this power efficiency translates to fewer high-power PoE switch ports consumed and lower operational cost per endpoint.

Technical Highlights:

• Stainless Steel + IK08 + IP65: IK08 impact rating (10 joules, equivalent to deliberate strikes with a small hammer) combined with IP65 sealing and stainless construction means this unit survives vandalism attempts, salt spray, and rain that would degrade lower-cost call stations within 3–5 years. In coastal or high-vandalism environments, the material cost difference versus plastic-housed alternatives is recovered in reduced replacement labor within 18 months.
• 5.28W PoE+ Draw: At under 6W, the IX-DVF-RA leaves 24W+ headroom on a 30W PoE+ port, allowing a pass-through downstream device (low-power access control reader, auxiliary speaker, or additional camera) on the same cable run. This reduces cabling labor and infrastructure cost compared to separate power and network drops.
• Dual Codec (H.264 + MJPEG): H.264 keeps bandwidth and storage overhead low on 24/7 recording (roughly 1–2 Mbps at 30 fps depending on scene complexity); MJPEG mode can be enabled for specific events or manual review when frame-by-frame clarity matters more than bandwidth efficiency. The 5 lux minimum means low-light performance is acceptable but not outstanding — expect reliance on incident lighting or supplemental white-light for facial detail capture at dusk or night.

Deployment Considerations:

• No Pan/Tilt: The fixed lens with vertical angle adjustment only at install means your site survey and mounting height choice are critical. Mounting too high results in a downward-looking angle that captures the top of a caller's head but not their face; mounting too low causes glare from the button itself. Spend time on the site walk to visualize the typical caller's height and distance relative to the lens.
• microSD Card Dependency: Local recording relies on a microSD card (not included) that you must source, insert, and monitor for capacity. If local storage is important, set a reminder to review card status quarterly and rotate cards before they fill. Without proper card management, you lose the fallback when network connectivity is interrupted.

Deploy the IX-DVF-RA at building entrances, parking structure exits, loading docks, or remote campus locations where weather resistance and vandal protection are regulatory or operational requirements. Pair it with a PoE+ switch and an ONVIF-capable VMS (Milestone, Genetec, or Hanwha) for centralized monitoring, or use the local microSD card for standalone backup when the network is unreliable. This model is not the choice for indoor, climate-controlled, low-vandalism environments — it is over-specified and over-cost for those scenarios. It is the choice when you need certainty that the call station will be operational six years from installation, regardless of weather, attempted tampering, or power transients.
