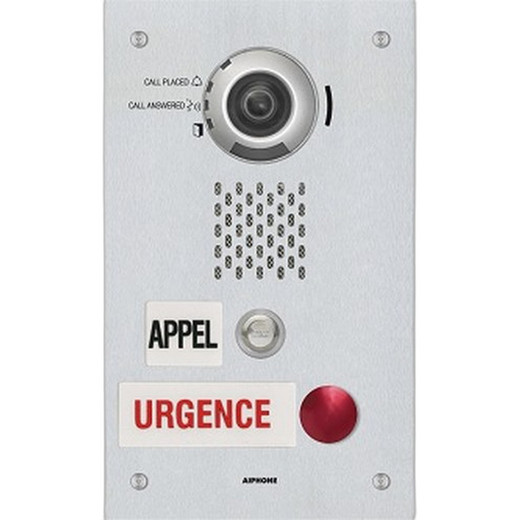

Aiphone IX-DVF-2RA-FR IP Video Emergency Station 2 Bttn French

Aiphone IX-DVF-2RA-FR IP Video Emergency Call Station

Overview

The Aiphone IX-DVF-2RA-FR is a flush-mount, weather-resistant IP video emergency call station designed for secure perimeter and access point communication. This model combines dual programmable call buttons with integrated 1.23 megapixel video capture, audio I/O, and contact triggering in a vandal-resistant stainless steel enclosure. The IX-DVF-2RA-FR operates over standard network infrastructure via PoE+ (802.3at Type 2) or optional 24V DC auxiliary power, drawing only 5.28 watts, and integrates seamlessly with SIP-based phone systems and ONVIF-compliant VMS platforms.

Key Features

• Dual Programmable Buttons: Standard call button and dedicated emergency call button (French labeling) each capable of dialing up to 20 destinations; both with ADA-compliant raised lettering and braille signage
• 1.23 Megapixel Fixed Camera: 1/3" CMOS sensor with 5 lux minimum illumination; manual vertical angle adjustment (+15°, 0°, -8°) for precise sightline alignment
• Video & Audio Codecs: H.264/AVC and motion JPEG video compression; G.711 (μ-law, A-law) and G.722 audio codecs; supports two-way voice communication with 73–96 dB speaker volume
• IP65 Weather & Vandal Resistance: IP65 ingress protection rating for outdoor installation; IK08 impact protection (vandal-resistant stainless steel faceplate) suitable for high-traffic or exposed environments
• Contact I/O & Relay Outputs: 6 trigger inputs and 2 contact outputs for door release, paging, or conditional triggering based on station state
• ONVIF Profile S Compliance: Stream video feeds via ONVIF or RTSP; audio and video recording to microSD card (not included) for call logging and incident documentation
• SIP Native Protocol: Full SIP compliance for direct integration with IP-PBX, hosted VoIP, or emergency dispatch systems without gateway conversion
• PoE Power Delivery & Pass-Through: Accepts IEEE 802.3af Class 0 PoE or optional 24V DC supply; includes PoE pass-through (802.3at Type 2 PoE+) for daisy-chain powering of secondary devices
• Custom Audio Messages: Upload sound files for door release confirmation, call-placed notification, communication start, error alerts, and other event-triggered announcements
• Network Security: IEEE 802.1X port security; IPv4, IPv6, TCP, UDP, HTTP, HTTPS, RTSP, SMTP, SFTP, DHCP, NTP, DNS protocol support
• Mounting Flexibility: Flush-mount configuration with included back box; optional surface-mount via separate SBX-IDVFRA stainless steel box; compatibility with emergency wall boxes (WB-CA, WB-HA, WB-CE, WB-HE) and modular tower systems
• Operating Environment: Rated -40°F to 140°F (-40°C to 60°C); suitable for indoor/outdoor lobbies, gatehouse entry, parking facilities, and emergency call stations

Integration & Compatibility

The IX-DVF-2RA-FR (often searched as IX DVF 2RA FR) is compatible with all IX and IXG series Aiphone devices, enabling multi-point emergency communication networks. SIP compliance allows deployment on standard enterprise VoIP infrastructure or dedicated emergency call systems. ONVIF Profile S streaming ensures integration with third-party video management systems (VMS) and security control platforms without proprietary software requirements. UL Listed under UL 62368-1 for safety compliance in North American installations.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Aiphone IX-DVF-2RA-FR across several security integrator deployments, and it's a solid fit for gated communities, campus perimeters, and emergency call tower applications. The combination of IP65 weathering, IK08 vandal resistance, and native SIP support removes the typical integration friction you encounter with legacy analog intercoms. What distinguishes this model is the dual-button design with French branding—valuable for bilingual facilities—and the onboard relay logic that can trigger door strikes or paging systems without additional middleware.

Technical Highlights:

• Efficient Power Profile: At 5.28 watts, the IX-DVF-2RA-FR is one of the lighter-load emergency stations, meaning you can daisy-chain multiple units on a single PoE+ injector or switch port using the pass-through feature. Reduces backbone switch port consumption compared to higher-wattage terminals.
• Vertical Camera Adjustment: The three fixed tilt positions (+15°, 0°, -8°) and manual lever adjustment are pragmatic. You avoid motorized servo complexity and the associated power draw, but retain field-adjustable sightline alignment for entry identification.
• ONVIF/RTSP Streaming: Direct video pull via RTSP or ONVIF means you're not locked into Aiphone's proprietary VMS. You can ingest feeds into Milestone, Genetec, or your existing platform for unified incident review and archival.

Deployment Considerations:

• Verify your SIP backbone (IP-PBX, hosted service, or emergency dispatch system) supports 20-destination directory lookups per button; some legacy PBXs require tone-mapping configuration. Aiphone's IXG series documentation clarifies button-to-number provisioning, but test failover routes in UAT.
• Plan microSD card insertion and maintenance into your operational schedule; the station logs audio/video locally to the card, but you must retrieve and archive it manually. Consider a central call recording system in parallel for critical emergency deployments.
• The 1.23 MP sensor is adequate for entry identification in good lighting but not suitable for facial recognition or wide-angle lobby surveillance. Pair with a discrete wide-angle overview camera if incident documentation requires multi-angle coverage.
• Indoor/outdoor thermal cycling (-40°F to 140°F) stresses IP65 seals; schedule semi-annual gasket inspection, especially in coastal salt-spray or high-humidity regions.

The IX-DVF-2RA-FR delivers reliable emergency call initiation with modern protocol compliance and minimal operational overhead. For integrators deploying multi-point perimeter communication or upgrading legacy intercom networks, this station's lightweight footprint, PoE efficiency, and SIP natively eliminate vendor lock-in. Recommended for municipal gatehouses, corporate security, healthcare campuses, and modular emergency towers where bilingual or multilingual labeling is mandated.

Product Documentation

Aiphone IX-DVF-2RA-FR Datasheet
