Aiphone IX-DVF-2RA IP Video Emergency Call Station
Overview

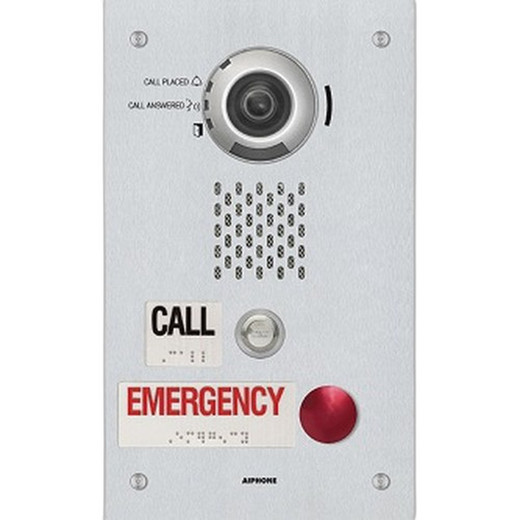

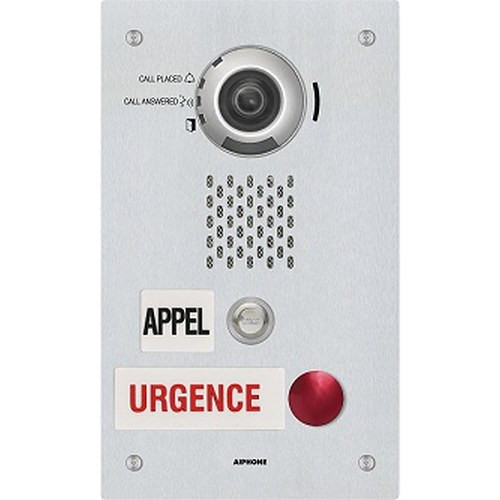

The Aiphone IX-DVF-2RA is a flush-mount, SIP-compliant IP video intercom designed for emergency communication applications in outdoor and indoor environments. This vandal-resistant station integrates a 1.23 megapixel fixed color camera with manual vertical adjustment and ADA-compliant signage to meet rescue assistance requirements. The IX-DVF-2RA (often searched as IX DVF 2RA) delivers both visual identification and two-way audio communication over standard network infrastructure, making it suitable for emergency towers, campus perimeter security, and critical access points.
Key Features
- SIP Compliance and ONVIF Profile S Support: The IX-DVF-2RA operates as a SIP-compliant device and is ONVIF® Profile S compliant, enabling video streaming via ONVIF and RTSP protocols for integration with standard VMS platforms and third-party monitoring systems.
- Dual Programmable Call Buttons: Two independently programmable buttons allow routing to up to 20 stations each. The standard call button and ADA-compliant emergency call button with raised lettering and braille signage ensure accessibility and clear user identification.
- 1.23 Megapixel Fixed Color Camera: The ⅓" CMOS sensor captures 2MP video at 5 lux minimum illumination with H.264 and motion JPEG compression options. Manual vertical camera adjustment (±15°, 0°, or -8°) provides field-of-view flexibility without repositioning the entire station.
- IP65 Weather and Vandal Resistance: Rated IP65 for weather protection and IK08 for impact resistance, with a stainless-steel faceplate that withstands outdoor environmental stress. Operating temperature range of -40°F to 140°F (-40°C to 60°C) supports year-round deployment.
- PoE+ Power and Pass-Through: Single PoE+ (802.3at Type 2) connection with pass-through capability reduces cabling complexity. Alternative 24V DC power supply (PS2420UL) available. Power draw of 5.28W enables efficient network integration.
- Audio and Recording Capabilities: Built-in microphone with G.711 and G.722 codec support provides clear two-way communication. microSD™ card slot (card not included) captures and stores audio and video of active conversations for compliance and review.
- Two Contact Outputs and Six Trigger Inputs: Programmable outputs support door release automation and device triggering. Six trigger inputs enable integration with external sensors and control logic for multi-station coordination.
- Custom Audio Messaging: Upload custom sound files for door release, call initiation, communication start, error messages, and other events. 600Ω output supports paging and broadcast communication to connected systems.
- LED Status Indicators: Green and orange call status indicators, white LED for low-light illumination, and audible/visual indicators for calling, communication, and door release events provide clear operational feedback.
- Flexible Mounting Options: Flush mount with included back box or surface mount with optional SBX-IDVFRA stainless steel surface mount box. Compatible with WB-CA, WB-HA, WB-CE, WB-HE emergency wall boxes and modular tower systems.
- UL Certification: UL Listed under UL 62368-1 and cUL 62368-1 standards, meeting North American safety requirements for emergency communication equipment.
Integration & Compatibility
The IX-DVF-2RA is fully compatible with all IX and IXG series Aiphone devices, enabling multi-station emergency networks. SIP compliance allows integration into IP telephony environments, while ONVIF Profile S support ensures video interoperability with standard VMS platforms and third-party recording solutions. IPv4 and IPv6 networking support, along with TCP, UDP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, and DNS protocols, provide robust connectivity in enterprise network environments. Port security via IEEE 802.1X enables secure authentication on restricted networks.
Physical Specifications
The station measures 11-11⁄16" H × 7" W with a compact form factor designed for unobtrusive installation. Stainless-steel faceplate and vandal-resistant construction ensure long-term durability in high-traffic and outdoor areas.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Aiphone IX-DVF-2RA during planning phases for several emergency communication deployments, and the feature set directly addresses the requirements of campus security, parking facilities, and remote entry points. The dual programmable buttons and six trigger inputs make this station adaptable to both simple point-to-point emergency calls and complex multi-zone coordination. The IX-DVF-2RA integrates cleanly into SIP-based telephony systems without requiring proprietary gateways, which simplifies network design and reduces operational overhead.
Technical Highlights:
- Video Streaming Over Standards: ONVIF Profile S and RTSP streaming enable direct integration with enterprise VMS platforms. You can record video independently of the intercom system, improving incident documentation and compliance reporting.
- PoE+ Efficiency: At 5.28W power draw with PoE+ pass-through, this device does not consume excessive switch capacity and can daisy-chain power to downstream devices, simplifying infrastructure in distributed emergency networks.
- Outdoor Durability: IP65 and IK08 ratings withstand both weather exposure and deliberate impact. The stainless-steel faceplate resists corrosion in salt-air and humid environments where standard aluminum housings degrade.
Deployment Considerations:
- Plan microSD card capacity based on call frequency and recording duration. For high-volume locations, consider archiving recordings to a central server via the SFTP upload capability rather than relying solely on local storage.
- Test vertical camera angle adjustment (-8°, 0°, +15°) in your specific mounting location to ensure clear facial capture at typical user height. Manual adjustment requires brief on-site calibration during installation.
- Configure the two contact outputs and six trigger inputs in advance, clearly documenting which outputs control door release and which trigger external alarms or notifications. This prevents field configuration errors during commissioning.
- Verify network port security (802.1X) compatibility with your access control infrastructure before deployment, particularly if using certificate-based authentication.
The IX-DVF-2RA delivers reliable emergency communication without proprietary dependencies, making it a solid choice for organizations seeking standardized, maintainable emergency infrastructure. The combination of SIP compliance, ONVIF streaming, and PoE+ efficiency reduces total cost of ownership over multi-year deployments.
