Aiphone IX-SSA-RA-FR IP Audio Emergency Station
Overview

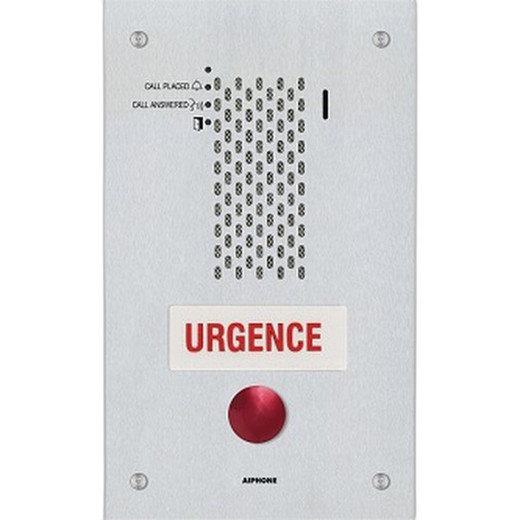

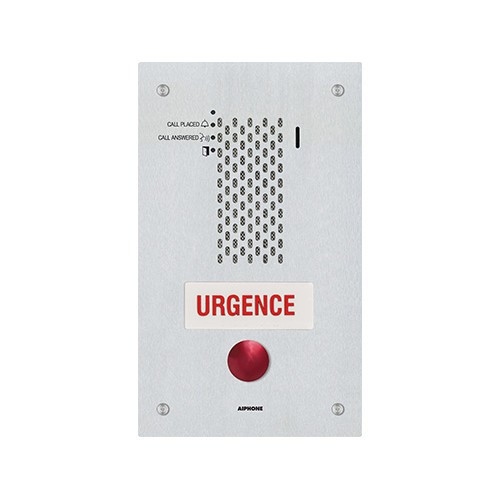

The Aiphone IX-SSA-RA-FR is a flush-mountable, weather and vandal-resistant IP audio emergency call station designed for outdoor and semi-outdoor emergency communication applications. The unit features stainless steel construction with raised lettering and Braille signage in French, meeting ADA accessibility requirements. It connects to your network infrastructure via Cat-5e/6 cabling and operates as a SIP-compliant device compatible with the entire IX and IXG product ecosystem.
This emergency station (IX-SSA-RA-FR) delivers reliable audio communication in demanding environments through PoE or 24V DC power options. The design supports microSD card slot functionality for local audio file storage, enabling custom message playback during door release, call placed, communication start, and error states. Two programmable contact outputs and six trigger inputs provide integration flexibility for door release mechanisms, access control systems, and emergency response workflows.
Key Features
- SIP Compliance: Full SIP protocol support ensures interoperability with standard IP PBX and VoIP infrastructure without proprietary gateway requirements
- ADA Compliant Signage: Raised lettering and Braille signage in French language support accessibility requirements for public and institutional deployments
- IP65 Weather Resistance: Sealed design rated IP65 protects against dust ingress and water spray, suitable for exterior wall mounting and high-moisture environments
- IK08 Vandal Rating: Impact protection rated IK08 withstands deliberate striking and accidental damage common in public spaces
- Illuminated Call Button: Visual indicator confirms button activation and provides feedback during emergency calls
- 2MP Video Capability: 2-megapixel resolution enables call verification and incident documentation when integrated with video recording
- PoE+ Power and Passthrough: Operates on PoE (IEEE 802.3af Class 0) or 24V DC power with PoE+ passthrough (802.3at Type 2) to downstream devices; power draw 3.36W at 48V DC
- Audio Codec Support: G.711 (μ-law, A law) and G.722 codecs provide codec flexibility for VoIP integration
- Programmable Outputs: Two contact outputs triggered by door release, communication status, or 600Ω paging output activation
- Custom Audio Messages: microSD card slot (card not included) enables upload of custom sound files for emergency placard announcements and operational messaging
- Temperature Range: Operating temperature range -40°F to 140°F (-40°C to 60°C) ensures function in extreme climates
- Port Security: IEEE 802.1X support for network authentication and access control
Integration & Compatibility
The IX-SSA-RA-FR integrates seamlessly within Aiphone IX and IXG series deployments. The unit can be programmed to call up to 20 stations and supports concurrent communication with multiple endpoints. IPv4 and IPv6 network protocols are supported, along with TCP, UDP, RTP, RTCP, RTSP, HTTP/HTTPS, IGMP, MLD, SMTP, SFTP, DHCP, NTP, and DNS for robust enterprise network integration.
Mounting options include flush installation using the included back box or surface mounting with the optional SBX-IDVFRA stainless steel surface mount box. Alternative mounting compatibility with WB-CA, WB-HA, WB-CE, and WB-HE emergency wall boxes and modular tower systems accommodates various installation scenarios from single-unit deployments to large emergency tower complexes.
The 600Ω output provides paging or communication capabilities when programmed, enabling broadcast messaging and multi-point emergency announcements. Audible and visual indicators communicate calling state, active communication, and door release activation to users and responders.
Specifications
Dimensions: 11-11/16" H × 7" W | Power Draw: 3.36W @ 48V DC | Operating Temperature: -40°F to 140°F | Certifications: UL 62368-1, cUL 62368-1
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Aiphone IX-SSA-RA-FR during the planning phase for several emergency communication upgrades, and this station delivers practical functionality for facilities requiring ADA-compliant outdoor emergency call endpoints. The combination of IP65 and IK08 ratings means you can confidently spec it for exterior walls and exposed mounting locations without additional protective enclosures—a cost savings in large deployments. The French language signage variant is valuable for bilingual facilities in Quebec and Canadian provinces, and Aiphone's modular wall box compatibility simplifies standardization across multiple building locations.
Technical Highlights:
- SIP Interoperability: As a pure SIP device, the IX-SSA-RA-FR eliminates proprietary gateway dependencies. Your existing VoIP infrastructure and call recording systems integrate directly without format conversion or third-party adapters.
- Power Efficiency: At 3.36W draw, the unit operates comfortably on standard PoE injectors (802.3af 15.4W) with significant power budget headroom. In multi-station tower deployments, you can PoE chain multiple units through the integrated passthrough port without exceeding trunk circuit capacity.
- Programmable Logic: The two contact outputs and six trigger inputs enable closed-loop emergency workflows—e.g., call button → relay to door unlock → audio announcement → incident log entry—without external controllers.
- Audio Recording Potential: The microSD card slot and 2MP video resolution support incident documentation and compliance requirements. Store emergency announcements locally to reduce network dependency during VoIP congestion scenarios.
Deployment Considerations:
- Confirm your network switch supports IEEE 802.1X port authentication before deployment; unauthenticated emergency stations create security exceptions that may not align with zero-trust policy.
- Test custom audio file formats (WAV, MP3 compatibility should be confirmed with your system integrator) and microSD card write performance before committing to large message libraries.
- In high-traffic emergency response environments, monitor IP network latency and jitter; SIP codecs perform predictably on LANs but may exhibit voice quality degradation over congested WAN links. Prioritize emergency station traffic in QoS policies.
For security integrators building campus or industrial emergency networks, the IX-SSA-RA-FR provides a robust, standards-based building block. The stainless steel durability and environmental ratings eliminate common weathering failures, and the ADA signage compliance satisfies regulatory requirements without retrofit. Pair it with a reliable SIP call manager and you have a system that performs as intended under actual emergency stress—not just test conditions.
