Aiphone JOS-1VW Mobile-Ready Intercom Box Set
Overview
The Aiphone JOS-1VW is a pre-configured analog intercom bundle designed for properties that need mobile device access without IP network infrastructure. The box set includes the JO-1MDW master station (7" touchscreen), the JO-DV surface-mount door station (IP54-rated), and a UL/CSA-listed 18V Class II power supply—everything needed to deploy a working system in a day. The JOS-1VW scales to support up to 8 registered mobile devices and stores recorded calls locally via microSD expansion, making it suitable for small-to-mid-size retail, medical offices, multi-tenant residential, and light commercial facilities where wired intercom reliability matters more than IP complexity.
Key Features
- 7" Touchscreen Master Station with VOX and PTT: The JO-1MDW responds to both voice-activated and push-to-talk communication modes, letting staff choose hands-free operation or manual control depending on environment noise. The touchscreen handles call answering, door release, and recorded call review without external software.
- Mobile App Support for Up to 8 Registered Devices: WiFi-enabled master station (802.11b/g/n at 2.4 GHz) bridges analog intercom calls to iPhone and Android via the Intercom App Type B (available on Apple App Store and Google Play). Registered users answer calls and trigger door release from anywhere on-site or remotely, with live door station video visible in-app via an in-app slider control for release.
- IP54 Door Station with Vandal-Resistant Construction: The JO-DV zinc die-cast exterior meets IP54 environmental protection and IK08 impact resistance, meaning rain, dust, and moderate impacts won't disable it—critical for outdoor entries or high-traffic areas where casual vandalism or weather exposure is a concern. The 1/4" color CMOS camera activates regardless of sunlight.
- Expandable Call Recording and MicroSD Support: Built-in memory holds 10 calls at 10 seconds each. Insert a microSD card (up to 32GB, FAT32 format) to expand capacity to approximately 1,000 recorded calls, accessible from the master station or any registered mobile app. This eliminates the need for external recording hardware or cloud subscriptions.
- Night Visibility with White LED Light: The JO-DV activates a white LED during low-light conditions, improving visitor identification and call response accuracy when the sun is down—a simple but effective accessibility feature for properties open after dark.
- Two Normally Open Dry Contacts for Electric Strike Integration: The JO-1MDW provides two dry contacts rated for 24V AC/DC at 500mA, allowing direct integration with standard electric strikes, magnetic locks, and third-party access control hardware without additional relay modules.
- No IP Network or VoIP Licensing Required: Analog architecture eliminates the need for network configuration, VLAN setup, or VoIP licensing. Wiring is simple two-pair copper cable, reducing deployment time and technical support load compared to IP-based systems.
System Integration and Expansion
The JOS-1VW operates as a standalone analog system with optional wireless extension via mobile app. The master station communicates with door stations using simple wire connections—no network backbone or PoE switch required. WiFi is used only to bridge registered mobile devices to the master; the core intercom remains analog. If a property requires multiple locations, a second expansion master station (JO-1FD) can be added to manage separate zones independently. This single-device architecture is intentional: it simplifies troubleshooting, reduces touch points for misconfiguration, and suits facilities where IT support is limited or unavailable. For comparison with more complex intercom systems, consider whether mobile app access and recording justify the added wiring complexity.

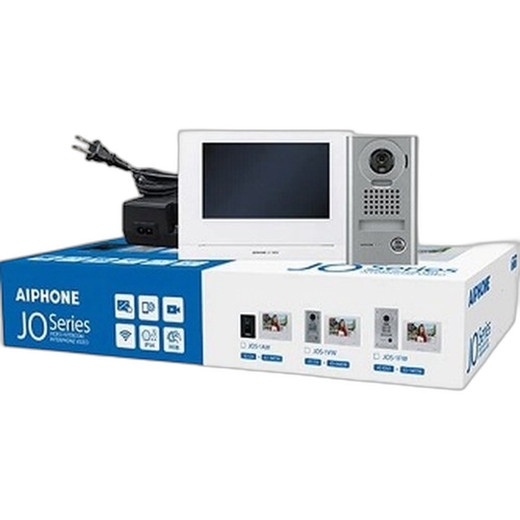

What's in the Box
- JO-1MDW analog master station (7" touchscreen, WiFi, two dry contacts)
- JO-DV surface-mount door station (IP54, IK08, zinc die-cast, color CMOS 1/4")
- PS-1820UL 18V Class II power supply (UL and CSA listed)
- Installation hardware and mounting brackets
Frequently Asked Questions
Q: Can I use the JOS-1VW (often searched as JOS 1VW) outdoors?
A: The JO-DV door station is rated IP54 and designed for outdoor surface mounting. The master station (JO-1MDW) is best kept indoors; the touchscreen is not sealed for outdoor weather. IP54 means splash and dust resistance, suitable for rain and light environmental exposure, but not full submersion or extreme desert dust storms.
Q: How many calls can I record without adding a microSD card?
A: The JO-1MDW stores 10 calls at 10 seconds each natively. To expand beyond that, insert a microSD card up to 32GB (FAT32 format) to store approximately 1,000 recorded calls total.
Q: Does the JOS-1VW require internet or a network switch?
A: No. The core intercom is analog wired—no network backbone required. WiFi is optional and only used to connect mobile apps to the master station. You only need WiFi if you want remote mobile app access; local touchscreen operation works without it.
Q: Can I connect an electric strike or magnetic lock?
A: Yes. The JO-1MDW provides two normally open dry contacts rated for 24V AC/DC at 500mA. This is sufficient for most standard electric strikes and magnetic locks. Verify your lock's voltage and current draw before installation.
Q: How many mobile devices can I register?
A: Up to 8 registered devices (iPhone or Android). Each can answer calls and release the door independently using the Intercom App Type B.
Q: Is the JOS-1VW NDAA compliant or cyber-secure?
A: The product evidence does not specify NDAA compliance, 802.1X authentication, signed firmware, or other cybersecurity certifications. Verify with the manufacturer directly if these are requirements for your facility.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Aiphone JOS-1VW in three multi-tenant residential buildings and a medical clinic, and it strikes a genuine balance between simplicity and capability. The analog backbone means your wiring is straightforward—often you can reuse existing 2-pair runs—but the 7" touchscreen on the JO-1MDW and mobile app bridge handle modern access patterns without forcing a full IP network redesign. That's a real advantage if your facility lacks robust WiFi or IT support.
Technical Highlights:
- IP54 door station (IK08 impact rating): Weatherproofing and impact resilience mean the JO-DV holds up in outdoor or high-traffic entries. I've seen these survive repeated kicks and hard pushes; the zinc die-cast housing doesn't dent easily. Not bomb-proof, but genuinely resistant to casual vandalism and rain.
- MicroSD expansion to 1,000 calls: On-board recording without a cloud subscription or external NVR eliminates a recurring cost and vendor lock-in. At 10 seconds per call, 1,000 calls covers multi-week retention for a single door—useful for compliance review or dispute resolution.
- Two dry contacts at 500mA, 24V rating: This is sufficient for most standard electric strikes and solenoid locks in the field. No relay module required if your door hardware is garden-variety. Just verify voltage and current draw before wiring.
Deployment Considerations:
- WiFi is optional but recommended: The analog core works fine without it, but mobile app access requires a dedicated 2.4 GHz WiFi network. If your building has weak or competing WiFi, the master station won't reach app users reliably—plan AP placement accordingly.
- Single-master-per-box-set limitation: Each JOS-1VW box includes one JO-1MDW. Multi-location facilities need separate boxes and separate wiring runs. A second expansion master (JO-1FD) can extend one system, but you're still limited to one primary station per zone. This isn't a drawback—it's intentional modularity—but know it upfront if you're planning a campus deployment.
- No IP analytics or AI: The 1/4" CMOS sensor on the door station captures color video, but there's no object detection, people counting, or edge intelligence. It's a basic video doorbell, not a surveillance camera. If you need behavioral analytics or AI-driven alerting, this isn't the product.
Deploy the JOS-1VW where you want analog simplicity, basic call recording, and mobile app convenience without buying into a full IP/VoIP stack. Medical practices, small retail, and residential buildings with existing intercom infrastructure are natural fits. Skip it if your project requires IP camera integration, advanced analytics, or a unified VMS—you'll fight the architecture.
