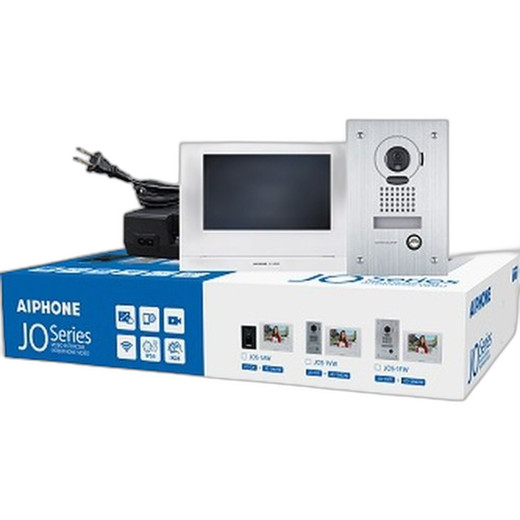

Aiphone JOS-1FW 7" Video Intercom Box Set with Mobile App
Overview
The Aiphone JOS-1FW is a complete video intercom system purpose-built for single-entry access control applications. This box set combines an indoor 7" touchscreen answering station with a flush-mount door station and integrated power supply — a turnkey configuration that eliminates guesswork during installation. The JOS-1FW (often searched as JOS 1FW) enables remote door release and call management from on-site or mobile locations, with support for up to 8 registered mobile devices per system. This is an analog intercom with IP-based mobile access; it operates standalone without requiring an external NVR or VMS, making it practical for small to medium deployments where mobile remote access and local call recording are priorities.
Key Features
- 7" TFT Touchscreen Master Station: The JO-1MDW indoor unit provides intuitive call answering and system control via capacitive touchscreen. Can be surface wall-mounted or positioned on a desk using the optional MCW-S stand — flexibility matters in facilities where a mounted answering station might interfere with workflow or aesthetics.
- Mobile App Connectivity (Intercom App Type B): Up to 8 registered mobile devices can answer intercom calls and remotely trigger door release from anywhere. Available on Apple App Store and Google Play. This addresses a common pain point in distributed operations — absence of on-site staff no longer means missed visitors or emergency calls.
- IP54-Rated Flush-Mount Door Station: The JO-DVF door station meets IP54 environmental protection (protection against splashing water and dust ingress) and IK07 impact resistance. This rating is suitable for indoor and covered outdoor installations — direct rain or hose spray will not cause failure. The stainless-steel faceplate resists corrosion and vandalism; white LED night-vision activation ensures visibility in low-light conditions without requiring external IR modules.
- Integrated Color CMOS Camera: 1/4" color CMOS sensor in the door station delivers real-time video to the master station and all registered mobile apps. Handsfree audio communication peaks at 69.9 dB, sufficient for noisy industrial or warehouse environments where background noise is a factor.
- Call Recording with Expandable Storage: Records up to 10 calls (10 seconds each) to internal memory — useful for audit trails or dispute resolution. Support for microSD card expansion (4GB–32GB FAT32, sold separately) extends recording capacity to approximately 1,000 calls. Recorded video is accessible from both the master station and any registered mobile app, streamlining post-event review without requiring a separate NVR or archival system.
- Dual Dry Contact Outputs: Two normally open relay contacts enable integration with electric strikes, magnetic locks, gate operators, or other auxiliary devices. Each contact handles standard 24VDC access control loads — typical for retrofit scenarios involving existing door hardware.
- Two-Mode Audio Operation (VOx and PTT): Voice-activated (VOx) mode triggers transmission automatically when sound is detected — useful for hands-free communication during busy periods. Push-to-talk (PTT) mode requires manual trigger, conserving bandwidth and reducing false activations in high-traffic areas.
- UL/CSA-Certified Power Supply: The included PS-1820UL 18V Class II regulated supply is UL and CSA listed, meeting North American electrical safety standards and reducing liability in regulated facilities (healthcare, financial services, etc.).
- 802.11b/g/n WiFi (2.4 GHz): Wireless connectivity to the master unit and mobile app eliminates long network cable runs between the door station and indoor unit — a significant labor savings in retrofit installations or facilities with difficult cable routing.
- Pre-Matched Box Set Configuration: All components are tested and verified to work together out of the box. This eliminates the risk of incompatible firmware revisions or configuration conflicts that can plague mixed-vendor or field-assembled systems.
Integration & Compatibility
The JOS-1FW operates as a standalone system; no external network video recorder or central management platform is required for basic operation. The system is compatible with the Aiphone JO Series ecosystem, and the optional JO-1FD expansion station supports multi-floor or multi-entrance deployments if future scaling becomes necessary. Mobile app integration uses the Intercom App Type B protocol, available on both iOS and Android. For integrators planning access control system deployment strategies, this system works well as a self-contained entry control solution or as the communication front-end to a larger third-party access management platform, provided relay contact closure integration is the intended control method.
What's in the Box
- JO-1MDW 7" Touchscreen Master Station
- JO-DVF Flush-Mount Stainless-Steel Door Station
- PS-1820UL 18V UL/CSA-Certified Power Supply
- Mounting hardware and 4-wire interconnect cable
Frequently Asked Questions
Q: Can the JOS-1FW record video?
A: Yes. The system records up to 10 calls (10 seconds each) to internal memory. Adding a microSD card (4GB–32GB FAT32, sold separately) extends capacity to approximately 1,000 recorded calls. Recorded video is accessible from the master station and any registered mobile app.
Q: How many mobile devices can answer calls on the JOS-1FW?
A: Up to 8 registered mobile devices can answer intercom calls and trigger door release remotely via the Intercom App Type B (available on iOS and Android).
Q: Is the JOS-1FW suitable for outdoor installation?
A: The door station (JO-DVF) is rated IP54 and IK07, making it suitable for covered outdoor or indoor use. IP54 protects against splashing water and dust, but not full submersion or high-pressure spray. For fully exposed outdoor applications, consider a higher-rated enclosure or housing.
Q: What door lock and auxiliary devices can the JOS-1FW control?
A: The system includes two normally open relay contacts rated for standard 24VDC access control loads. These outputs support electric strikes, magnetic locks, gate operators, and similar devices. Verify your specific lock's voltage and current draw against the power supply specification before integration.
Q: Does the JOS-1FW require an external NVR or VMS?
A: No. The system operates standalone with local call recording to internal memory or microSD card. No external NVR, VMS, or network infrastructure is required for basic operation. Mobile app access is facilitated by the built-in 802.11b/g/n WiFi connectivity.
Q: What is the power consumption of the JOS-1FW?
A: The system is powered by the included PS-1820UL 18V Class II regulated supply, which is UL and CSA listed. No separate power supply or PoE infrastructure is required.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the JOS-1FW in small commercial and multi-family access control projects where mobile app functionality and local call recording are essential. The 7" touchscreen and full IP-based mobile support address a gap many analog intercom systems leave open — absent staff can still respond to visitors and authorize access without callbacks or delays. The JOS-1FW sits in that sweet spot between pure analog simplicity and enterprise-grade network infrastructure.
Technical Highlights:
- IP54 Door Station Rating: Protection against splashing water and dust ingress means the flush-mount unit handles typical commercial indoor and covered outdoor conditions — restrooms, loading docks, warehouse entries. Not suitable for direct rain or hose spray, so verify your installation environment before ordering.
- Expandable Call Recording (microSD up to 32GB): The internal memory holds 10 calls of 10 seconds each; that's useful for a single transaction. Add a microSD card and you get roughly 1,000 calls of recorded video. In multi-tenant or high-traffic facilities, this becomes a liability shield — you have a record of access requests and authorization decisions.
- 8 Mobile App Registrations: Unlike older systems that lock you into a single responder, the JOS-1FW distributes call notifications and door release to up to 8 users simultaneously. In operations with rotating staff, shared management teams, or distributed ownership, this eliminates the single point of failure.
- 802.11b/g/n WiFi (2.4 GHz): Wireless connection between door station and master unit cuts cabling labor in retrofit scenarios. No requirement for network infrastructure — this is pure analog intercom over WiFi. One caveat: WiFi strength varies by building materials and distance. Site survey your space before finalizing placement.
- Dual Relay Outputs (Normally Open): Two dry contacts allow simultaneous control of an electric strike and an auxiliary device — or redundant strikes on a double-door entry. Each contact is rated for standard 24VDC loads; verify your specific lock's draw before wiring.
Deployment Considerations:
- The JOS-1FW is not IP video-over-network in the traditional sense — it's analog intercom with WiFi mobile app augmentation. If you need centralized recording across multiple entry points via a unified NVR, this system will not natively integrate that way. It records locally and plays back from the master station or mobile app only.
- microSD cards are sold separately. Budget for a Class 10 or UHS card (4GB minimum for meaningful retention) and verify it's formatted FAT32 before installation — exFAT or NTFS will not work.
- The 7" master station requires AC power and wall space. If your facility has severe space constraints or a distributed entry layout, consider whether a single master answering point suits your workflow — or plan for the optional JO-1FD expansion station if you need multi-floor coverage.
The JOS-1FW is a solid choice for small commercial properties, multi-family buildings, and light industrial access control where you want mobile responsiveness, local recording, and minimal network complexity. It's not a replacement for large-scale video surveillance or enterprise access management platforms, but as a focused single-entry intercom solution with app-based remote capability, it delivers genuine operational flexibility without the integration overhead.
