Aiphone IXS-HBDV Preprogrammed IP Video Intercom Box Set

Aiphone IXS-HBDV Preprogrammed IP Video Intercom Box Set

Overview

The Aiphone IXS-HBDV (often searched as IXS HBDV) is a factory-preprogrammed complete IP video intercom solution designed for plug-and-play deployment. Unlike modular intercom systems that demand bench programming before site arrival, the IXS-HBDV ships fully configured and paired—master station, door station, PoE switch, and cabling all ready to connect and operate immediately. This eliminates the engineering overhead typically associated with IP intercom commissioning and makes sense for integrators who want to reduce onsite configuration time and risk of programming errors. Built on the Aiphone IX Series platform, it delivers professional-grade video entry capability with multi-station monitoring capacity and native SIP/ONVIF integration for enterprise deployments.

Key Features

• Preprogrammed Kit—No Configuration Required: All devices arrive paired and ready to install. Power, network, and call routing are preset. Reduces deployment overhead and eliminates the field programming step that typically adds 2–4 hours of labor per site.
• 7-Inch Color Touchscreen Master Station (IX-MV7-HB): The answering station includes a built-in 480p fixed camera, privacy shutter, and multi-angled desk stand (30°, 45°, 60° positions). Supports both desk and wall-mounted installation. SIP-compliant for VoIP system integration.
• IP67-Rated Video Door Station (IX-DV): Surface-mounted entry station rated IP67, meaning it tolerates direct rain and dust ingress without failure. Deploy outdoors or in high-moisture areas (loading docks, warehouse entries) without additional weatherproof enclosures.
• Integrated 8-Port PoE Switch: Eliminates the need to source and install a separate switch. Delivers power and data to all stations via standard Cat-5e or Cat-6 cabling. Simplifies network topology and reduces bill-of-materials cost.
• PoE (802.3af) Power: Each station draws under 13W per device, well within standard 802.3af budget. No additional power supplies or wiring to coordinate—power and data share a single cable run.
• Dual Codec Support (H.264 and MJPEG): H.264 compresses video to roughly half the file size of MJPEG on equivalent quality settings, cutting storage footprint and bandwidth overhead. Useful for microSD recording or integration with bandwidth-constrained networks. MJPEG provides motion-triggered snapshots for low-bandwidth scenarios.
• 500-Station Address Book: Support for up to 500 directory entries enables large multi-building campuses or multi-tenant facilities. Integrate dozens of door stations, monitoring cameras, and intercom endpoints into a single call system without splitting across master units.
• Audio Codecs: G.711 and G.722: G.711 (μ-law and A-law) is the standard narrowband telephony codec—ensures compatibility with legacy PBX systems and public telephone networks. G.722 delivers wideband audio for clearer, more natural conversation. Both are industry-standard, reducing risk of VoIP integration issues.
• MicroSD Card Expansion: Record active calls (audio + video) to microSD. Useful for dispute resolution, access auditing, or incident review. Expandable up to practical microSD limits (typically 512GB).
• SIP and ONVIF Profile S Compliance: Native SIP protocol means the IXS-HBDV integrates with enterprise PBX, Asterisk, 3CX, and hosted VoIP providers. ONVIF Profile S support enables two-way audio and video viewing in third-party network management platforms (Milestone, Genetec, etc.). IPv4/IPv6 dual-stack networking.
• Scheduled Device Monitoring (Bell Schedule): Program up to 50 bell-schedule events per day—control whether the door station rings or logs calls silently during specified hours. Useful for after-hours facilities, warehouses with shift work, or buildings with quiet zones.
• Eight Programmable Speed Dial Buttons: Assign direct dialing, paging, emergency numbers, or monitoring functions to each button. Reduces call completion time and operator error in high-traffic entry scenarios.
• Picture-in-Picture Video Display: View door station video alongside ONVIF Profile S-compliant third-party cameras on the touchscreen. Situational awareness without switching between displays—useful for security teams managing multiple entry points or adjacent zones.
• Contact Closure Control (2 Outputs, 4 Inputs): Integrate door locks, gates, barrier arms, and alarm triggers. Two relay outputs can unlock doors or control strobes; four input triggers detect door-open sensors, motion detectors, or external alarm signals. Extends the system beyond pure communication into access and emergency automation.
• UL 62368-1 Safety Certification: Meets North American electrical safety standards for indoor intercom equipment. Relevant for commercial and institutional deployments subject to code inspection.

Integration & Compatibility

The IXS-HBDV is fully ONVIF Profile S compliant and operates over standard IP networks: IPv4, IPv6, SIP, HTTP, HTTPS, RTSP, RTP, DHCP, NTP, DNS, SMTP, SFTP. IEEE 802.1X port security integration allows credential-based network access control. Works with enterprise VoIP platforms (Asterisk, 3CX, Cisco, Avaya) via SIP trunk or user-agent registration. Compatible with third-party video management systems (Milestone XProtect, Genetec Security Center, etc.) that support ONVIF device discovery. Audio codec flexibility (G.711 μ-law, G.711 A-law, G.722) ensures interoperability with legacy and modern telephony infrastructure. For detailed network planning, consult the PoE power budgeting and switch sizing guide.

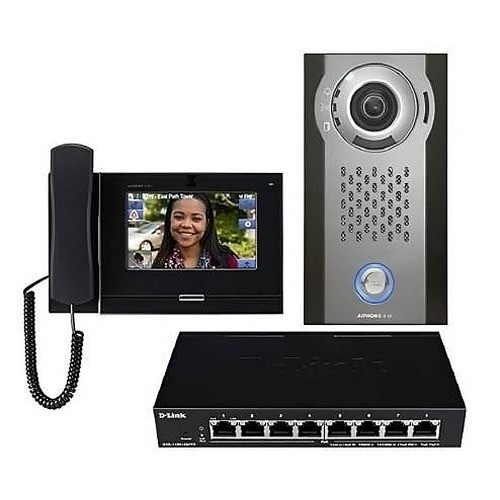

What's in the Box

• 1x IX-DV Video Door Station (surface mounted, IP67)
• 1x IX-MV7-HB 7-inch Touchscreen Master Station
• 1x 8-Port PoE Switch (IEEE 802.3af compliant)
• Network cabling (Cat-5e/Cat-6)
• Mounting hardware and templates
• Desktop stand with multiple angle positions
• Quick-start configuration guide

Recommended Use Cases

Enterprise office campuses with multiple entry points and centralized security monitoring; warehouse and logistics facilities where door station durability (IP67) and hands-free intercom matter; multi-tenant buildings or co-working spaces needing scalable 500-station directory capacity; facilities requiring SIP/VoIP integration with existing PBX infrastructure; sites where access control relay outputs (lock/gate control) simplify entry automation; and deployments where preprogrammed, zero-configuration installation reduces onsite engineering time and cost.

When to Choose a Different Model

If your facility requires high-resolution (2MP or greater) video at the master station, consider higher-resolution variants in the Aiphone IX family. If the preprogrammed configuration doesn't match your network topology or dialing plan, purchasing individual IX Series components and configuring on-site may offer more flexibility. If you need integrated recording and event management beyond microSD logs, pair the IXS-HBDV with a dedicated network video recorder (NVR) supporting ONVIF; the IXS-HBDV will stream its video and audio into that system. If outdoor door station coverage extends beyond IP67 (full submersion scenarios), specify IP67+ or specify weatherproof surface conduit routing.

Frequently Asked Questions

Q: Does the IXS-HBDV work with my existing PBX or VoIP phone system?

A: Yes. The system is SIP-compliant and supports G.711 and G.722 audio codecs. Register it as a SIP user agent on your PBX, 3CX, Asterisk, or hosted provider (Twilio, RingCentral, 8x8, etc.). Inbound calls to the master station number ring the touchscreen; the operator can answer and view the door camera simultaneously.

Q: Can I add more door stations later, or is it locked to this one unit?

A: The IXS-HBDV is preprogrammed but not locked. Purchase additional IX-DV door stations, IX-MV7-HB master units, or other IX Series endpoints and add them to the existing 500-station directory. You may need to adjust network configuration (additional PoE switch ports or a larger switch) if you expand significantly, but the preprogrammed baseline remains intact.

Q: Is the 480p master station camera adequate for entry monitoring?

A: 480p (roughly 0.3 MP) on the master station is suitable for occupancy verification and basic visitor identification at close range. It is not a surveillance-grade camera. If you need high-resolution entry documentation, integrate a separate 2MP or 4MP ONVIF camera at the door (or near it) and display that video alongside the door station video using the picture-in-picture feature.

Q: How much storage does a microSD card hold, and what is the typical recording duration?

A: MicroSD capacity is determined by the card you install (typically 64GB–512GB). H.264 compression at 480p consumes roughly 10–15 MB per minute of dual-codec video+audio. A 128GB card holds approximately 9,000–13,500 minutes (6–9 days) of continuous recording. For permanent archival or compliance (HIPAA, SOX, etc.), integrate with an NVR or cloud recorder.

Q: What is the range of the door station camera and can it see at night?

A: The IX-DV has fixed optics and no specified IR illumination in the evidence provided. Assume daytime operation in well-lit entry areas. For low-light or night operation, add an external IR illuminator or position the door station in a lit vestibule. Check with the manufacturer for specific lens angle and night-vision performance if darkness is a concern.

Q: Is the relay contact-closure output capable of unlocking electronic door locks?

A: Yes. The two contact outputs can trigger electric strikes, solenoid locks, or barrier gate openers with compatible voltage/amperage ratings. Verify relay ratings (dry contact voltage/current capacity) against your specific lock mechanism. Consult electrical/security codes for your jurisdiction before installing access control wiring.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The IXS-HBDV is built for integrators who value installation speed and SIP ecosystem compatibility over post-purchase customization. The preprogrammed approach trades flexibility for velocity—you avoid field programming errors and cut commissioning labor by 2–4 hours per site. The real win here is the factory-paired master and door station, combined with the integrated 8-port PoE switch, which eliminates the Bill-of-Materials coordination that typically delays multicomponent deployments. However, the 480p master-station camera and lack of IR at the door station are hard constraints: this is a communication device, not a surveillance system.

Technical Highlights:

• Integrated 8-Port PoE Switch (802.3af): Eliminates separate switch procurement and reduces network complexity. Each station (master + door) consumes <13W, so power budget is never a concern, and Cat-5e cabling suffices—cost savings in new construction or retrofit scenarios.
• 500-Station Address Book with SIP + ONVIF Profile S: Large directory capacity simplifies multi-building campuses; SIP compliance enables PBX trunk registration without proprietary gateways; ONVIF Profile S allows two-way audio and video integration into third-party VMS platforms (Milestone, Genetec) without vendor lock-in.
• H.264 Compression + MicroSD Recording: H.264 reduces file size ~50% vs. MJPEG at equivalent quality. MicroSD recording is useful for call auditing and incident review, though it's not a replacement for 24/7 NVR recording. Plan for external archival if compliance (HIPAA, financial audit) is a requirement.
• IP67 Door Station + Contact Closure Outputs: IP67 rating means the IX-DV tolerates direct rain and dust without weatherproof conduit, cutting installation cost. Two relay outputs support door strike or barrier arm control; four trigger inputs enable motion/door-sensor integration for basic automation workflows.

Deployment Considerations:

• Preprogrammed Configuration is Non-Negotiable: The system arrives paired and ready to network. If your site topology differs significantly from the baseline (different IP subnet, non-standard dialing plan, VoIP trunk IDs), you will need field reprogramming. Verify with the manufacturer that your PBX or VoIP provider can accommodate SIP registration before ordering.
• Master Station Camera is Occupancy-Level Only: At 480p with fixed optics and no IR, the touchscreen camera is fit for visitor identification under good light, not for facial recognition or low-light surveillance. Pair with a dedicated entry camera (2MP minimum) if high-resolution visitor logging is required.
• PoE Switch Port Count and Future Expansion: The integrated 8-port switch supports the factory kit (master + door station + 6 free ports for future endpoints). If you plan to add more than 6 additional devices (cameras, additional door stations, etc.), source a larger PoE switch and network the kit accordingly. Check that your switch supports IEEE 802.1X if credential-based network access control is mandated.

Deploy the IXS-HBDV when your priority is fast field installation for a single main entry with SIP/VoIP ecosystem alignment. It's ideal for office, warehouse, or logistics facilities where the entry camera is a communication aid ("who's at the door?") rather than the primary surveillance asset. Pair it with a separate ONVIF camera if you need high-resolution visitor documentation or night vision.
