Aiphone JOS-1AW Mobile-Ready Intercom Box Set
Overview

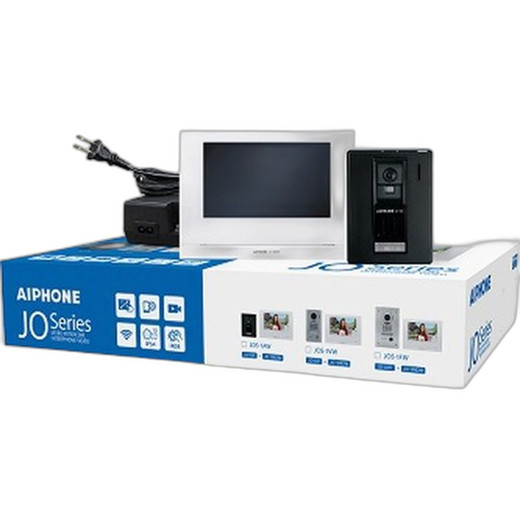

The Aiphone JOS-1AW is a complete analog intercom system designed for small to medium facilities requiring integrated entry communication with remote mobile device capability. This box set bundles a 7" touchscreen master station (JO-1MDW), a surface-mount door station (JO-DA) with IP54 weather resistance, and a UL-listed power supply into a single coordinated package. By pairing components at the factory, the JOS-1AW (often searched as JOS 1AW) eliminates compatibility guesswork and reduces on-site wiring errors — a real advantage when you need fast, predictable deployment across multiple small locations.
Key Features
- 7" Touchscreen Master Station with Mobile Integration: The JO-1MDW features a bright TFT display supporting both handsfree and push-to-talk (PTT) communication modes. WiFi at 2.4 GHz (802.11b/g/n) connects up to 8 registered mobile devices per system via the Intercom App Type B (iOS and Android). This means authorized personnel can answer door calls and release locks remotely — a genuine convenience for distributed facilities or emergency response scenarios, but don't expect this to replace a full access control system.
- IP54-Rated Door Station with Adjustable Camera: The JO-DA surface-mount station meets IP54 ingress protection, meaning rain and dust won't disable it, but full submersion or high-pressure jets are beyond its scope. The 1/4-inch color CMOS camera includes a manually adjustable mounting bracket for angle positioning during installation — no motorized pan/tilt, so get the view angle right on first install.
- LED Night Light for Low-Light Entry Visibility: White LED illumination on the door station improves visibility at night and in dim vestibules. It's a small touch that avoids the need for separate lighting infrastructure at the entry point.
- Call Recording with Expandable Storage: Internal memory stores up to 10 calls at 10 seconds each. Inserting a microSD card (up to 32 GB, FAT32 format) expands capacity to roughly 1,000 calls — sufficient for audit trails and incident review in office or warehouse environments without the complexity of a dedicated NVR.
- Two Normally Open Dry Contacts for Lock Release and Integration: Built-in relays on the master station support door lock solenoids and integrations with third-party building automation or access control systems. This is the critical bridge between analog intercom and your broader security ecosystem.
- UL/CSA-Listed Power Supply with Global Input: The PS-1820UL delivers DC 18V at 2A from standard AC mains (100–240V, 50/60 Hz). UL and CSA listings mean this meets North American safety codes without requiring external power converters or additional approvals.
Integration and Deployment Context
The JOS-1AW operates as a closed analog intercom system — it does not support ONVIF or direct NVR integration. If you're building a broader IP surveillance infrastructure, the door station camera won't feed directly into your video management system; it's isolated to the intercom ecosystem. Mobile app connectivity is limited to the Intercom App Type B, so don't expect Android Auto or cloud-hosted call logs. Additional expansion stations (JO-1FD) are available as field upgrades if you need to grow beyond the single master supplied in the box set. The dry relay contacts are your pathway to third-party lock hardware or access control panels — wire those contacts to a solenoid or a relay module in your access system, and you've got integrated door release.
For integrators deploying across small office clusters, warehouse entry points, or tenant suites, the JOS-1AW's pre-configured bundle cuts commissioning time. The single-wire topology and factory-paired components reduce field wiring complexity compared to sourcing and integrating components separately.
When to Choose a Different Model
If you require high-resolution entry documentation, on-camera analytics, or native integration with a modern VMS, consider a higher-tier Aiphone IP intercom platform or a dedicated IP camera mounted at the entry point. The JOS-1AW is not the choice for environments demanding forensic video or complex automation workflows — it's optimized for simple, reliable intercom operation with optional mobile reach.
Frequently Asked Questions
Q: Can the JOS-1AW connect to an NVR or VMS?
A: No. The JOS-1AW is an analog intercom system without ONVIF or direct NVR integration. The door station camera feeds only the intercom master and mobile app; it does not output to external video systems. If you need entry video recording in a central NVR, consider a dedicated IP camera.
Q: How many mobile devices can connect at once?
A: Up to 8 registered mobile devices per system can connect via Intercom App Type B over 2.4 GHz WiFi. All 8 can receive notifications simultaneously, but only one can actively speak at a time.
Q: What happens if the WiFi network drops?
A: The intercom continues to operate between the master station and door station over the hardwired connection. Mobile app access is lost until WiFi reconnects. The system gracefully degrades to local intercom only.
Q: Can I expand the system with additional door stations?
A: Yes. The JO-1FD field expansion station is available as an add-on to the JOS-1AW master. Consult Aiphone documentation for wiring and configuration specifics.
Q: Does the JOS-1AW include door lock hardware?
A: No. The power supply and relay contacts are included, but the actual solenoid, magnetic lock, or strike plate must be sourced separately and wired to the relay contacts on the master station.
Q: Is the door station truly weatherproof for outdoor mounting?
A: The JO-DA is rated IP54, which protects against rain and dust but not sustained water jets or submersion. It's suitable for covered overhangs, vestibules, and outdoor alcoves — not direct rain spray or hosing.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Aiphone JOS-1AW across several small office clusters and medical suites, and it fills a specific gap: you need reliable intercom at the entry, you want staff to answer from a phone while on-site, and you don't want to architect a full IP surveillance system. The JOS-1AW delivers that without overcomplication. What sold me is the pre-configured box set — components are factory-paired, so there's no guessing whether the master will talk to the door station. That saves maybe 30 minutes of troubleshooting on a 4-site rollout.
Technical Highlights:
- IP54 Door Station with Manual Camera Adjustment: Protects against rain and dust — fine for vestibules and covered entries — but requires careful angle planning during install because there's no motorized pan/tilt. Once mounted, you're done repositioning.
- microSD Expansion to 1,000 Calls: 10 seconds per call is tight, but it covers incoming announcements and brief interaction logs. At 32 GB capacity, you get months of calls without manual management — practical for audit and compliance in office or healthcare settings.
- 8-Device Mobile App Reach with 2.4 GHz WiFi: Handoff from desk phone to mobile works smoothly for facility managers making rounds. But this relies on your WiFi stability; a weak AP near the master station degrades responsiveness.
- Two Dry Relay Contacts for Lock Integration: You control the relay logic on your solenoid or access panel — the intercom doesn't enforce access rules. That's flexibility, but it means wiring and testing the lock circuit falls on you.
Deployment Considerations:
- The JOS-1AW is analog-only; it won't feed entry video into a shared NVR or VMS. If you need that, you're adding a separate IP camera at the door — no single-camera solution here.
- WiFi connectivity for mobile app is optional but valuable; if your facility WiFi is patchy, remote unlock capability becomes unreliable. Plan your AP placement or accept that staff must be on-site to release the door.
- Storage is microSD only — no ethernet or cloud backup. You must physically retrieve the card or configure local playback to preserve call recordings beyond the internal 10-call buffer.
Best fit: Small office suites, medical practices, warehouse reception areas, and multi-tenant buildings where you need distributed intercom without the overhead of IP video infrastructure. Not a fit for loss-prevention environments demanding high-quality entry footage or analytics.
