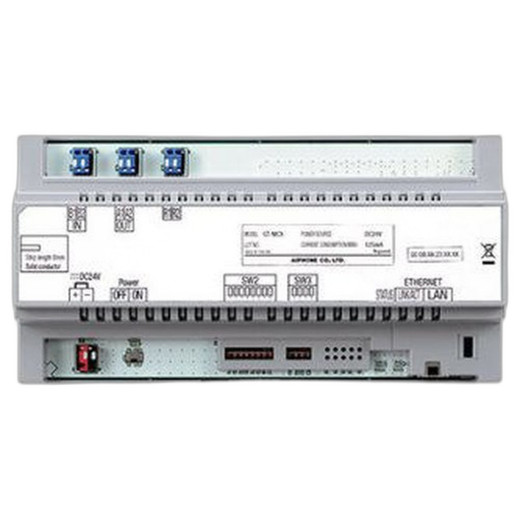

Aiphone GT-MCX Multi-Building Control Unit
Overview
The Aiphone GT-MCX is a network control hub that consolidates intercom infrastructure across multiple buildings on a single logical network. It acts as the central management point for large-scale distributed deployments, enabling security integrators and facility managers to provision, monitor, and control tenants and entrances across geographically separated locations from one vantage point. This unit sits in your equipment room and handles the networking load so you don't have to manage separate systems per building.
Key Features
- Supports up to 480 entrances: Scale across a campus or multi-property estate without fragmenting your control architecture. Manage video door stations, gates, and access points from a unified platform — no subnet isolation or manual bridging overhead.
- Handles 96 guard stations: Your security team works from a single console interface regardless of building layout. Reduces training load and eliminates the complexity of operating separate systems per location.
- 5,000 tenant capacity per network: Ideal for mixed-use properties, office parks, and warehouse complexes with rotating tenants or access requirements. Provisioning scales without architectural rework.
- Ethernet 100BASE-TX connectivity: Standard IP network interface means no proprietary cabling or custom switching — integrates into your existing corporate LAN infrastructure. Runs at standard copper ethernet speeds; suitable for low-bandwidth intercom signaling across distribution networks.
- Full IPv4/IPv6 protocol stack: Future-proof networking. Supports DNS, DHCP, NTP for time synchronization, IGMP and MLD for multicast traffic — essential when coordinating video and audio streams across multiple buildings.
- DIN rail mount in standard enclosure: Fits into any equipment room or security operations center without custom fabrication. Allows rack or panel integration alongside your existing network, power distribution, and security equipment.
- Low power footprint: Draws 75 mA during standby and 115 mA at maximum load. Minimal impact on UPS sizing and battery backup runtime — a real advantage when you're budgeting backup power for a multi-building control point.
Integration with the Aiphone GT Ecosystem
The GT-MCX is purpose-built for the Aiphone GT intercom family. It does not function as a standalone device; it requires GT-series entry stations, door units, or tenant stations to deliver video intercom functionality. Think of it as the network orchestrator — it routes calls, manages access control integration, and provides the API hooks for third-party video management systems or access control platforms.
When to Choose a Different Model
If your deployment is confined to a single building or smaller campus where IP networking overhead is minimal, consider whether a simpler GT-series standalone configuration meets your needs. The GT-MCX adds value only when you need centralized tenant and entrance management across physically separated locations. For very large enterprises with 1,000+ users or advanced analytics requirements, evaluate whether supplementing with a dedicated network video recorder or access control platform serves your audit and compliance needs better than the intercom's built-in logging.
Deployment Considerations
Network topology matters. The GT-MCX assumes a reliable, low-latency IP path between buildings. If you're working across wide-area links (VPN, dedicated circuits), validate round-trip latency under load — video intercom is real-time and won't tolerate sustained delays above a few hundred milliseconds. Power supply the unit via a protected circuit with UPS backup; it's a single point of control for your entire multi-building access infrastructure.
Frequently Asked Questions
Q: Does the GT-MCX require a separate power supply, or can it be powered via PoE?
A: The unit operates on low-voltage DC power (details depend on your power harness configuration). It does not draw PoE; you will need to provision a dedicated 24VDC or equivalent power source from your electrical panel or a regulated supply.
Q: Can the GT-MCX integrate with third-party access control or video management platforms?
A: The GT-MCX provides ONVIF and Aiphone API endpoints for integration with compatible systems. Confirm with your VMS or access control vendor that they support the Aiphone GT protocol stack before finalizing architecture.
Q: What is the maximum distance between buildings the GT-MCX can manage?
A: Distance is not the constraint — latency is. The unit communicates via standard Ethernet 100BASE-TX, so any IP network path (LAN, VPN, dedicated circuit) will work as long as round-trip latency remains under 500 ms for interactive video intercom calls.
Q: Does the GT-MCX store video or only route calls?
A: The GT-MCX is a network control hub, not a recorder. Video storage and archival must be handled by a separate NVR or connected video management system. The unit handles signaling, tenant/entrance provisioning, and access control triggers.
Q: Is the GT-MCX NDAA Section 889 compliant?
A: Refer to Aiphone's compliance documentation or contact the manufacturer directly for certification status — this information is not available in the product specification.
Q: What is the warranty term for the GT-MCX?
A: Standard Aiphone manufacturer warranty applies. Confirm the exact coverage period and support terms with your specialty distributor at time of purchase.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The GT-MCX (often searched as GT MCX) is the right tool if you're deploying Aiphone GT video intercom across multiple buildings and need one control point rather than isolated systems per location. At 480 entrances and 5,000 tenants, the architecture scales far beyond what most single-building installs require — that capacity is not marketing overhead; it's real system headroom that keeps you from rearchitecting when your client expands or consolidates properties.
Technical Highlights:
- Ethernet 100BASE-TX with full IPv4/IPv6 stack: No proprietary networking layer. Runs over standard corporate IP infrastructure, simplifying your cabling runs and eliminating single-vendor lock-in at the network level. IGMP and MLD support mean multicast video and audio streams distribute cleanly across your buildings without broadcast flooding.
- 75 mA standby, 115 mA max draw: Negligible power signature. UPS backup sizing is trivial, and your facility power budget won't spike when you provision the unit — that matters when you're retrofitting security infrastructure into older buildings with limited spare capacity.
- DIN rail mount: Lands neatly in standard equipment racks or wall-mounted panels. No custom fabrication, no special enclosures — install it alongside your network switches and patch panels without taking up disproportionate real estate.
Deployment Considerations:
- The GT-MCX is a control orchestrator, not a media processor. Video intercom calls still route peer-to-peer or through your VMS — the unit manages signaling, access provisioning, and tenant-to-entrance bindings. Verify your VMS can ingest the Aiphone GT video feed before finalizing the architecture.
- Latency between buildings matters more than distance. If you're linking locations across a WAN (VPN, MPLS, dedicated circuit), test intercom call responsiveness before signing off. Anything above 500 ms round-trip will feel sluggish to your tenants or security staff.
- This is a single point of control failure. If the GT-MCX goes down, you lose centralized management and access provisioning — local call routing between tenant and door units may persist, but adding tenants, resetting access rules, or integrating with access control won't work. Size your UPS and support contract accordingly.
Right fit: multi-property security integrators or corporate campuses running Aiphone GT and needing one management console to handle tenant rosters, entrance bindings, and access control callbacks across a distributed footprint. If your client operates fewer than three buildings or has fewer than 100 tenants, you may find a simpler configuration less operationally expensive.
