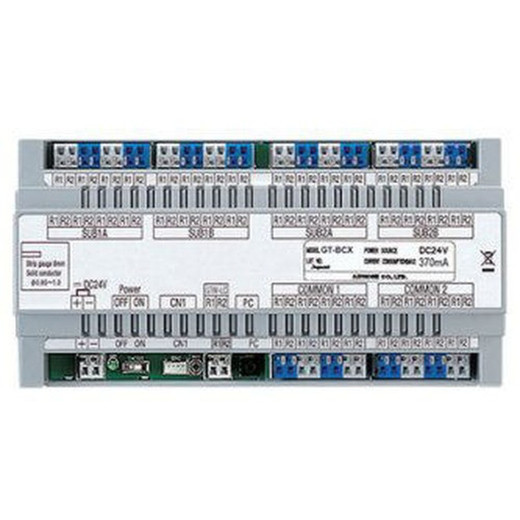

Aiphone GT-BCXB-N Expanded Bus Control Unit
Overview
The Aiphone GT-BCXB-N is a wall-mounted expanded bus control unit that centralizes power and data distribution for multi-unit intercom installations using the Aiphone GT Series. Rather than running separate power feeds to each station, the GT-BCXB-N acts as a hub—you wire it once to your power source, then use standardized 2-conductor cabling to reach every connected station. This reduces installation labor and simplifies troubleshooting by eliminating multiple power runs. For apartment buildings, office complexes, or any multi-tenant deployment, this is the infrastructure that lets you scale without proportional wiring complexity.
Key Features
- Centralized Power Distribution: Single connection point means one power supply feeds the entire system. Maximum power consumption is 0.9A, making electrical planning straightforward on standard circuits. You avoid the cost and complexity of distributing AC power to multiple distant wall boxes.
- 2-Conductor Cabling: Works with standard 2-conductor solid, non-shielded, PE-insulated cabling (Aiphone #872002 is the recommended wire). This is simpler and cheaper than shielded or twisted-pair alternatives, and it's what the GT Series was engineered around—no unexpected impedance or signal-integrity surprises.
- Universal GT Series Compatibility: Supports all GT Series audio and video stations—GT-1A, GT-1C7W, GT-1C7, GT-1D, GT-1M3, GT-MKB-N modular entrance panels. Also works with GT-DB audio modules, GT-VB camera modules, external signaling relays, and panic switches. This breadth means you can mix station types on the same bus without compatibility workarounds.
- Relay and Panic Support: External signaling relays and panic switches integrate directly into the bus structure. If your specification calls for door strike integration or emergency alerting, the GT-BCXB-N is wired to handle those peripherals from day one—no separate control modules needed.
- Mobile App and Access Control Ready: Compatible with Aiphone's mobile app and access control ecosystem. Tenants or staff can answer calls from their phones, and the unit can integrate with existing card readers or keypad access systems. This is the infrastructure layer that enables modern tenant-centric communication without ripping out legacy wiring.
- DIN Rail Mounting: Supplied DIN rail bracket mounts to standard 35mm DIN rail, a familiar standard in electrical enclosures. This means it integrates naturally into your main distribution panel without custom fabrication—one less thing to engineer on-site.
Integration and Deployment
The GT-BCXB-N is designed for wall-mounted installation in a utility closet, equipment room, or building entrance cabinet. Its small footprint and DIN rail form factor make it fit standard electrical enclosures without requiring a dedicated junction box. Power consumption at 0.9A maximum means it draws minimal current—useful when you're working within a building's existing electrical budget and don't want to run a dedicated circuit.
For multi-unit residential or commercial buildings, run a single power line to the GT-BCXB-N, then use the 2-conductor cabling to branch out to each tenant station, entrance panel, or lobby monitor. The unit manages voltage distribution and signal integrity across the bus. In practice, this architecture means you can serve 10, 20, or more units from a single control point, scaling the system by simply adding stations and cabling—no new power distribution required for each new resident or office.
Integration with access control systems and mobile intercom apps is straightforward: the GT-BCXB-N provides the electrical foundation; the GT Series stations handle the protocol translation. This simplifies vendor lock-in and makes it easier to layer in modern calling features without replacing the entire wiring infrastructure.
Frequently Asked Questions
Q: Can the GT-BCXB-N work in an existing apartment building wired for a different intercom system?
A: Technically, yes—if you're willing to run new 2-conductor cabling. The GT-BCXB-N can coexist with legacy systems, but you'll need a dedicated wire run from the control unit to each new GT Series station. You don't have to replace the old system; you can run parallel infrastructure during a phased upgrade.
Q: What happens if I exceed 0.9A power consumption?
A: You risk voltage sag and dropped connections. The unit is rated for 0.9A maximum draw. If your site plan calls for many video stations simultaneously streaming, or multiple relays energizing at once, you'll need to verify the actual cumulative load and may need to add an auxiliary power supply or redistribute the load across multiple GT-BCXB-N units.
Q: Is the GT-BCXB-N compatible with third-party ONVIF cameras or VMS platforms?
A: No. The GT-BCXB-N is designed solely for the Aiphone GT Series ecosystem. It does not speak ONVIF, RTSP, or other open standards. If your project requires integration with a neutral VMS like Milestone or Axis, the GT Series is not the right choice—you would need a hybrid architecture or a different intercom platform.
Q: Can I wall-mount the GT-BCXB-N directly, or do I need a cabinet?
A: The supplied DIN rail bracket allows wall mounting, but best practice is to install it in an electrical enclosure or equipment cabinet. This protects it from accidental contact and keeps the cabling organized. Direct wall mounting works for indoor utility closets but leaves the unit exposed.
Q: What cabling runs from the GT-BCXB-N to each station?
A: Standard 2-conductor solid, non-shielded, PE-insulated cable (Aiphone #872002 is recommended). No twist pairs, no shield required. This simplicity is a cost advantage during installation, but it does mean you need to keep runs under a certain length to avoid signal degradation—consult Aiphone's distance guidelines in the datasheet for specifics.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The GT-BCXB-N is the right component when you are retrofitting an apartment complex or office building with a modern intercom system and want to centralize power and signal distribution. At 0.9A maximum draw, this unit is lightweight on electrical infrastructure—a real advantage in older buildings where adding new circuits is costly or infeasible. The use of standard 2-conductor cabling is not a limitation; it is a deliberate design choice that cuts material costs and simplifies installation compared to shielded or twisted-pair alternatives.
Technical Highlights:
- Single 0.9A Power Draw: Minimal electrical load means you can often integrate the GT-BCXB-N into existing building circuits without electrical upgrades. For a 10-unit building, this is a tangible savings in panel modifications and breaker installation.
- 2-Conductor Bus Architecture: Every GT Series station, relay, and panic switch connects to the same pair of wires. No separate control loops, no proprietary connectors—just solid PE-insulated cable. This simplicity is a maintenance win: any competent electrician can trace and repair the system five years down the road.
- DIN Rail Form Factor: Fits standard 35mm DIN rail in electrical enclosures. No custom mounting brackets, no panel fabrication. Installation time on the control unit itself is measured in minutes, not hours.
Deployment Considerations:
- Cabling Distance and Voltage Drop: Do not assume infinite cabling distance. The GT-BCXB-N datasheet specifies maximum run lengths to prevent signal degradation or voltage drop under load. Request these limits from the manufacturer or Aiphone's integrator docs before designing your topology. Longer buildings may require multiple GT-BCXB-N units or intermediate relays.
- Load Stacking: If your specification calls for 15 video entrance panels, 8 lobby monitors, and multiple door strikes all potentially active at once, verify the cumulative current draw. 0.9A is the ceiling. A worst-case scenario (all devices pulling simultaneously) can trigger brownout or relay chatter. Size your power supply and load distribution accordingly.
- No ONVIF or VMS Integration: This unit does not bridge to Milestone, Axis, or any third-party platform. It is Aiphone-only. If your facility requires a future pivot to a hybrid or multi-vendor architecture, the GT-BCXB-N and GT Series will become a silo. Plan accordingly.
Best fit: mid-to-large residential buildings, office parks, and multi-tenant commercial spaces where you control the entire infrastructure upgrade and want to leverage existing electrical closets. Avoid if your building has strict ONVIF or open-standards mandates, or if you expect the system to evolve into a hybrid platform in the next 5–7 years. For a pure Aiphone deployment in a newly built or gutted property, the GT-BCXB-N is the infrastructure that makes scaling painless.
