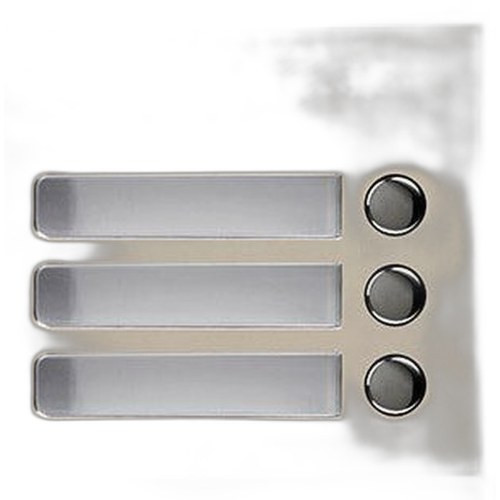

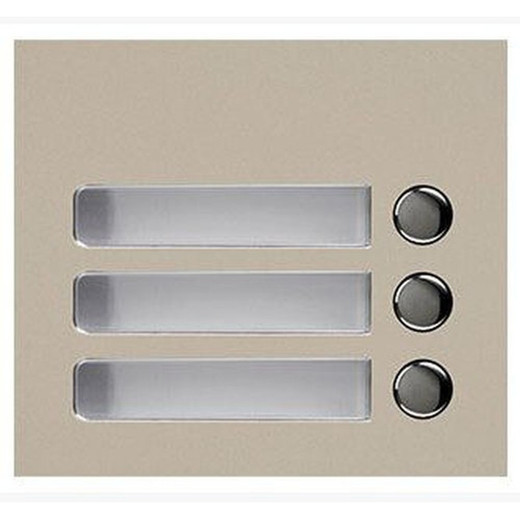

Aiphone GF-3P 3-Call Button Panel for GT-SW
Overview
The Aiphone GF-3P is a modular three-call button entrance panel designed for integration with Aiphone GT-SW intercom systems. Constructed from zinc die-cast material, the GF-3P provides durable, weather-resistant call routing in multi-tenant residential and commercial deployments. This panel serves as the guest-facing entry point in a distributed GT series architecture, enabling residents or office occupants to be reached via dedicated call buttons rather than a single shared dial.
The GF-3P (often searched as GF 3P) operates as a modular component within the larger GT ecosystem — you pair it with a GT-SW system controller and connect it to audio-only or video-enabled tenant stations throughout the building. Because it handles routing at the entrance, the button panel reduces confusion in multi-unit sites where dozens of tenants occupy separate addresses.
Key Features
- Three discrete call buttons: Visitor presses one button to ring a specific tenant unit. Eliminates the need for a directory-style dial and reduces misdirected calls — critical in apartment buildings or office parks where wrong numbers waste time.
- Zinc die-cast housing: Corrosion-resistant material withstands outdoor mounting at entrances, loading docks, or exterior guard stations. Does not require a separate weatherproof enclosure in most climates, lowering installation cost and complexity.
- Compatible with GT audio and video tenant stations: The GF-3P routes calls to intercom systems including the GT-1A (audio-only), GT-1C7 and GT-1C7W (compact video), GT-1D (touchscreen video), and GT-1M3 (modular multi-line video). Single button panel can service a mix of audio and video endpoints — no firmware changes needed.
- Requires GT-SW system controller: The GF-3P has no standalone intelligence; it is a dumb panel that depends on the GT-SW controller to manage call routing, hold, transfer, and recording (if equipped). This modular design keeps cost low per panel and allows you to add multiple button panels across a large property without overloading a single unit.
- Standard GT wiring protocol: Uses the same cabling and configuration methodology as other GT series peripherals — technicians trained on one GT installation can rapidly provision additional panels without learning a proprietary bus topology.
- Multi-unit and commercial flexibility: Deploy one panel per entrance, or install multiple panels at different access points (main lobby, side entrance, loading dock, garage entry). Each panel can be programmed to ring different tenant combinations, enabling efficient call distribution in complex buildings.
Integration and Compatibility
The GF-3P integrates with the Aiphone GT series intercom architecture. Installation requires:
- A GT-SW system controller (the master routing and switching brain for the GT ecosystem).
- Connection to existing GT series audio or video tenant stations such as GT-1A, GT-1C7, GT-1C7W, GT-1D, or GT-1M3.
- Standard GT series wiring — typically twisted-pair cabling run from the entrance panel back to the system controller or a local sub-distributor cabinet.
- Firmware configuration on the GT-SW to assign which button on the GF-3P rings which tenant unit or group.
The panel supports both audio-only and video-enabled tenant configurations on the same system — you are not forced to choose one or the other site-wide. A single building can have audio-only units in back offices and video units in main lobbies.
Typical Deployment Scenarios
- Apartment buildings: Mount one GF-3P at the main entrance with buttons for units 1–3 (or a call-back to a lobby phone that transfers). Additional panels at side or rear entrances serve different unit clusters.
- Office parks or flex buildings: Install GF-3P panels at each secondary entrance so delivery drivers and visitors can reach the tenant reception or guard station without navigating a massive directory.
- Loading dock / service area: A GF-3P with buttons for receiving, facilities, and security dispatch — isolated from visitor-facing entrances — reduces noise and call volume on main tenant lines.
Frequently Asked Questions
Q: Does the GF-3P work as a standalone unit, or do I need additional Aiphone equipment?
A: The GF-3P requires a GT-SW system controller to function. It has no built-in routing or switching logic — it is purely a button panel. Without a GT-SW (or compatible GT series controller), the buttons will not ring anything.
Q: Can I use the GF-3P with video intercom tenant stations?
A: Yes. The GF-3P is compatible with video-enabled stations such as the GT-1C7, GT-1D, and GT-1M3. When a visitor presses a button, the call routes to the video station, allowing the tenant to see the visitor on their screen.
Q: How many units can I connect to one GF-3P panel?
A: The GF-3P has three call buttons. Each button can be programmed to ring a single unit, a group of units, or a central reception line, depending on your GT-SW configuration. If you need more than three call paths, install additional panels.
Q: Is the GF-3P weatherproof for outdoor mounting?
A: The zinc die-cast housing provides corrosion resistance suitable for most outdoor entrance environments. However, the product's IP rating and full environmental specifications are not detailed in available documentation. Consult the GT-Series Quick Start Installation Guide or contact Aiphone support to confirm suitability for your specific climate (high salt spray, extreme cold, etc.).
Q: Do I need a separate power supply for the GF-3P?
A: The GF-3P draws power from the GT-SW system controller via standard GT series wiring. No separate external power supply is required, as long as your GT-SW is adequately sized for the total load.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Aiphone GF-3P is a straightforward modular call button—nothing fancy, but that simplicity is its strength. In a multi-tenant building, you want the entrance panel to be bulletproof and maintenance-free. Zinc die-cast construction means no plastic panels yellowing or warping under UV; it holds up to outdoor weather and the occasional mechanical stress of a guard kicking it in frustration. The GF-3P offloads all intelligence to the GT-SW controller, which keeps the panel cost low and lets you scale button panels across a property without multiplying system complexity.
Technical Highlights:
- Zinc die-cast housing: Corrosion-resistant material rated for outdoor entrance mounting without additional weatherproofing. Reduces enclosure cost and installation labor compared to plastic panels requiring stainless or polycarbonate shields.
- Three discrete buttons: Each independently programmable to ring a single unit, a group, or a central station. Eliminates directory-style keypads and the call-routing confusion they create.
- Compatible with GT-1C7, GT-1D, GT-1M3 video stations: The GF-3P can initiate video calls to tenant video phones, letting visitors be screened before buzzing in — a real security win in residential buildings.
Deployment Considerations:
- The GF-3P is a pure peripheral. If your GT-SW controller fails or is misconfigured, the buttons are dead. Build redundancy into the GT-SW side, not the panel itself.
- Three buttons is often tight for larger buildings. Plan for multiple panels at different entrances rather than cramming all call paths into one unit.
- No onboard IP rating specification is published. Before mounting at exposed outdoor sites (salt spray, high humidity), confirm environmental limits with the manufacturer or test in situ.
The GF-3P is the right choice for apartment or office buildings where you need modular, durable entrance panels that integrate seamlessly into an existing Aiphone GT ecosystem. It is not a choice for standalone visitors or single-purpose applications — you need the GT-SW to make it work.
