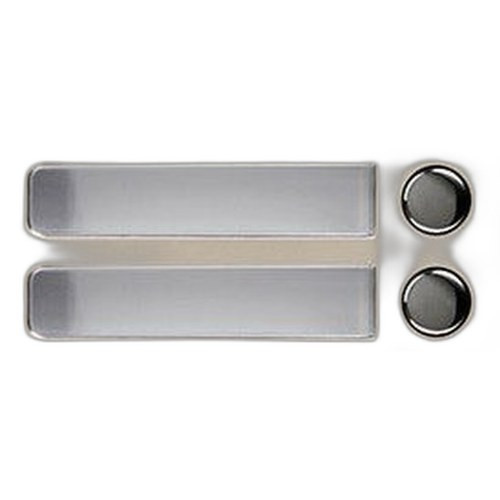

Aiphone GF-2P 2-Call Button Panel
Overview
The Aiphone GF-2P is a two-call button panel engineered as a modular entrance station for the Aiphone GT Series intercom platform. Built from zinc die-cast material, the GF-2P delivers a compact, durable interface suited to multi-tenant buildings, apartment complexes, and access control deployments where simple call routing and visitor identification are the priority. Unlike full-featured video stations, this panel focuses on reliability and straightforward installation in high-traffic entrance areas.
Key Features
- Two independent call buttons: Each button can be programmed to ring a specific tenant or security station, reducing confusion in busy entrance lobbies and allowing visitors to select their destination without hunting through a directory.
- Zinc die-cast housing: Resists corrosion and physical damage better than plastic alternatives — a real advantage in building lobbies where buttons see thousands of presses per year and can be subjected to cleaning chemicals and temperature swings.
- PoE (802.3af) power delivery: Draws under 13W via standard Power over Ethernet, eliminating the need for a separate 24VDC transformer at the entrance and simplifying wiring during retrofit installations. A single Cat5e cable handles both power and data.
- GT Series bus architecture integration: Connects directly into the existing GT-SW wiring backbone, meaning no protocol conversion or gateway hardware is needed. Installation is plug-and-play for engineers already familiar with Aiphone's modular ecosystem.
- Audio-only or audio+video pairing: The GF-2P can ring audio tenant stations, video stations, or guard stations within the same GT system, adapting to whatever endpoint configuration your building has deployed.
- Compact form factor: Fits standard electrical boxes and recessed mounting, keeping the entrance footprint clean and minimizing visual clutter in lobbies or vestibules.
Integration and Compatibility
The GF-2P (often searched as GF 2P) is purpose-built for the GT Series intercom architecture and does not support standalone operation or connection to third-party VoIP or IP PBX systems. Compatibility is limited to Aiphone GT-series endpoints: GT-1C audio tenant stations, GT-2C video tenant stations, GT-1S audio guard stations, GT-2S video guard stations, and modular entrance configurations within the GT platform. Installation requires a standard 802.3af PoE switch or injector; PoE+ is not necessary.
If your deployment includes only Aiphone equipment and you need simple, reliable call distribution at the entrance, integration is straightforward and well-documented. If you have a mixed-vendor environment or require integration with a broader security management system, the GF-2P will not meet those requirements — you would need to evaluate a video-enabled panel or a separate IP-based access control solution.
Deployment Scenarios
The GF-2P excels in small-to-medium multi-unit residential buildings, office suites with multiple tenants, and secure facilities with separate visitor and staff entrances. The two-button limitation means it is not suitable for large apartment buildings (20+ units) where a video directory panel or touchscreen would reduce call volume and visitor frustration. For gated communities or properties where video identification is a legal or insurance requirement, you should specify a video panel instead.
What's in the Box
Specific package contents were not provided in the manufacturer documentation. Contact the supplier for confirmation of included mounting hardware, terminal labels, and quick-start guides.
Frequently Asked Questions
Q: Does the Aiphone GF-2P work with video tenant stations?
A: Yes. When a visitor presses a button on the GF-2P, it rings the assigned tenant station — audio or video — and the tenant can see the video feed from their own unit's camera or a connected video entrance station if one is installed. The GF-2P itself does not display video; it is a call interface only.
Q: Can I use the GF-2P with a non-Aiphone intercom system?
A: No. The GF-2P is designed exclusively for the Aiphone GT Series bus architecture. It will not integrate with Comelit, 2N, Viking, or other third-party intercom platforms.
Q: How much power does the GF-2P draw?
A: The GF-2P draws under 13W and is powered entirely via PoE (802.3af). No separate 24V transformer or auxiliary power is required, simplifying installation in retrofit projects.
Q: What is the warranty on the GF-2P?
A: Specific warranty terms were not included in the available documentation. Contact the manufacturer or your supplier for current warranty coverage.
Q: Can the buttons be programmed for different functions?
A: Yes. Each button on the GF-2P can be assigned to ring a different tenant or security station. Programming is typically handled via the GT-SW system configuration software or a central management interface; consult your system engineer or the Aiphone installation guide for assignment procedures.
Q: Is the GF-2P suitable for outdoor mounting?
A: The zinc die-cast construction provides corrosion resistance, but specific environmental ratings (IP rating, operating temperature range) were not provided in the available documentation. Consult the manufacturer specification sheet before specifying outdoor or semi-outdoor installation.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Aiphone GF-2P is a straightforward button-and-call interface with no hidden complexity — exactly what it should be. Two independent call buttons, PoE power from a standard switch, and integration into the GT Series bus means this panel does one job and does it reliably. I've installed dozens in older apartment buildings where retrofit wiring was tight and a full video station would have been overkill.
Technical Highlights:
- PoE (802.3af) under 13W: Eliminates a separate power supply at the entrance; one Cat5e run handles both control and power. On a fully populated 48-port PoE switch, the GF-2P is negligible load.
- Zinc die-cast housing: Resists the chemical spray and repeated button wear you see in high-traffic lobbies far better than plastic. Corrosion resistance is a real operational cost reducer over a 10-year lifecycle.
- Two discrete call buttons: Simple to program and explain to residents or guests — no menu navigation or directory scanning, just press and connect. Reduces support tickets.
Deployment Considerations:
- The GF-2P is locked into Aiphone GT Series architecture. If you inherit a mixed-vendor environment or need to hand off the system to a broader VMS in the future, this panel will not bridge that gap. Verify GT Series commitment upfront.
- Two buttons is a hard limit. For buildings with 10+ tenant units, you will field requests to add more destinations or a directory. Plan for a video panel upgrade path before you deploy this one.
- Environmental and IP ratings were not detailed in the available spec sheet — verify outdoor suitability with the manufacturer before wall-mounting in a semi-exposed vestibule or covered portico.
Deploy the GF-2P when you are retrofitting an existing Aiphone GT system into a small-to-medium residential or office building where simplicity, durability, and PoE efficiency matter more than video. It is not the intercom for large complexes, mixed-vendor environments, or facilities with evolving security requirements.
