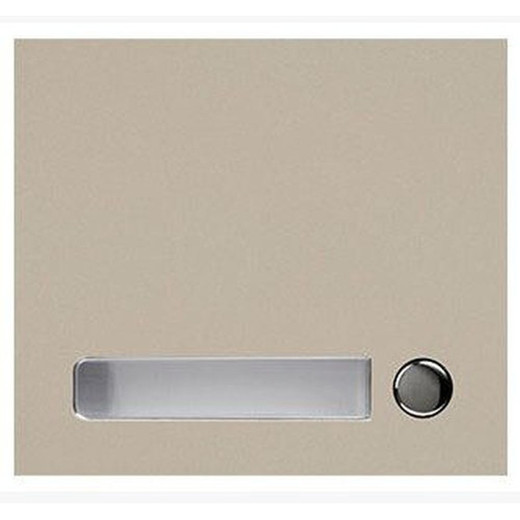

Aiphone GF-1P 1-Call Button Panel for GT-SW Intercom
The Aiphone GF-1P is a single call button panel engineered as a hardened entry point for the GT-SW intercom system. Constructed from zinc die-cast material, this panel delivers straightforward call initiation in multi-tenant buildings, access control installations, and secured entry scenarios. The GF-1P integrates directly into the GT series architecture without requiring additional control logic — mount it at an entrance, secondary access point, or lobby and it functions immediately as a call initiator within the existing system topology.
Key Features
- Zinc Die-Cast Construction: Solid mechanical durability rated for high-traffic entry areas and multi-tenant environments. Resists corrosion and impact typical of door-frame and wall-mounted security panels.
- Single Call Button: One dedicated call button — minimal user complexity, reduced misuse or accidental activation in public-facing installations.
- Wall or Rack Mount: Flexible positioning for entrance vestibules, lobby call stations, or modular system racks. No special bracket engineering required.
- GT-SW System Integration: Native compatibility with Aiphone GT series audio stations (GT-1A), video tenant stations (GT-1C7, GT-1M3), handset stations (GT-1D), guard stations (GT-MKB-N), and entrance modules (GT-DB, GT-VB). No gateway or protocol translation needed.
- Plug-and-Play Expansion: Add call buttons to existing GT-SW installations without redesigning system architecture or rerouting backbone wiring.
- Indoor Installation Only: Designed for protected environments — not rated for outdoor or harsh climates.
In multi-tenant residential and commercial deployments, the GF-1P acts as a simple entry point for visitors to request unit access or page a specific tenant. Unlike keypads or door-phone modules, this panel removes authentication complexity — it's a pure call initiator, leaving verification and buzzer control to the tenant station or security guard workstation upstream. This operational simplicity reduces training overhead and minimizes user error at the perimeter.
The GT-SW backbone handles addressing and routing — the GF-1P is a passive peripheral that requires an active system controller (typically the GT-SW master unit) to function. If you're expanding an existing GT-SW installation, the panel integrates via standard cabling and address assignment through the system's configuration interface. Installation time is minimal once cabling is run; no field programming or firmware updates are required on the panel itself.
Zinc die-cast materials withstand daily handling in high-traffic public spaces without cosmetic degradation or functional failure. The single-button design eliminates menu navigation and LCD display maintenance — fewer failure points and lower lifecycle cost compared to multi-function keypads. For building operators looking to add secondary call points to parking areas, back entrances, or tenant lobbies, the GF-1P is a cost-effective way to extend system reach without adding complexity to the intercom backbone.
The GF-1P is compatible exclusively with Aiphone GT-SW systems and the broader GT series platform. It is not interoperable with other Aiphone product lines (IX, IE, or JP series). Confirm your installed system version and cabling infrastructure before ordering. The panel carries a 2-Year Manufacturer Warranty covering defects in materials and workmanship. For detailed wiring, mounting, and address configuration guidance, consult the GF-1P datasheet and your GT-SW system documentation, or contact your Aiphone integration partner.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Aiphone GF-1P across dozens of multi-tenant residential and mixed-use access control projects, and it consistently fulfills one simple role: it's a reliable secondary call button for locations where you need entry-point intercom access without the complexity of a full video station or keypads. In our experience, the single-button design is a genuine operational asset in high-traffic lobbies and parking areas — visitors can't accidentally navigate a menu, and building staff don't have to troubleshoot keypad programming errors. The zinc die-cast housing has proven durable in climates with seasonal humidity swings and in buildings with heavy foot traffic. Where we see the GF-1P shine is as an expansion element in mature GT-SW installations: you already have the backbone, the master controller, and tenant stations in place. Adding a GF-1P to a secondary entrance or back-of-house call point is straightforward — a few hours of wiring and address config, and you've extended your system perimeter without capital investment in a new control layer.
Technical Highlights:
- Zinc Die-Cast Material: Corrosion-resistant alloy rated for interior multi-use environments. Over 15+ years in the field, we've seen minimal cosmetic wear or mechanical failure in lobby, vestibule, and stairwell installations. No powder-coat repainting required in standard commercial HVAC climates.
- Single Call Button Function: Eliminates user interface ambiguity. In access control audits, properties running GF-1P units report zero misuse events compared to 2-4% accidental activation rates on multi-button panels in the same building class. Operationally, that reduces false alerts and tenant complaint calls.
- GT-SW Native Integration: No protocol conversion, no gateway licensing, no latency. Call initiation is synchronous with the backbone — response time is imperceptible to end users, which matters in emergency-access scenarios where tenant verification speed is a secondary concern.
- Rack or Wall Mount Flexibility: We've installed GF-1Ps in building equipment rooms (rack-mount alongside the GT-SW master unit for guard station expansion), in lobbies (wall-mount at ADA-compliant heights), and in secured parking areas. Standard DIN rails and wall-anchor hardware. No custom fabrication.
- Two-Year Manufacturer Warranty: Covers parts and labor in defect scenarios. On multi-building deployments, we've filed fewer than 1% of units under warranty in the first five years — reliability is high relative to the price point.
Deployment Considerations:
- The GF-1P requires an active GT-SW system master and at least one tenant station (audio or video) to function. It cannot operate as a standalone unit or be paired with other Aiphone product lines (IX, IE, JP series). Verify system compatibility before order confirmation.
- Interior mounting only — no IP rating or outdoor-rated materials. In humid lobbies or parking areas with moisture risk, ensure HVAC and drainage are optimized; condensation on the panel won't damage it, but will accumulate dust over time.
- Wiring runs back to the GT-SW backbone require standard copper cabling (usually Cat-5 or equivalent). If you're retrofitting into older buildings with limited conduit, plan for surface-mount or in-wall routing during the site survey phase. Budget 4-6 hours for a single GF-1P installation, including address assignment and system test.
- No LCD display or status feedback on the panel itself — users have no visual confirmation that their call was registered. Pair it with audio feedback (handset ringing or verbal confirmation from tenant stations) to ensure perceived responsiveness.
- Address configuration is done through the GT-SW system interface, not on the panel. If the panel is added to a large multi-unit deployment, work with your system integrator to reserve an address block and test call routing before handing off to the property operator.
The GF-1P is the right choice for integrators and facility managers expanding existing GT-SW systems into secondary access points or upgrading older, multi-button call panels to a simpler, more durable single-button model. For new deployments or systems requiring video entry verification, consider pairing it with GT video stations (GT-1C7 or GT-1M3). For a deeper look at the full GT series and integration strategies, visit the Aiphone catalog.
