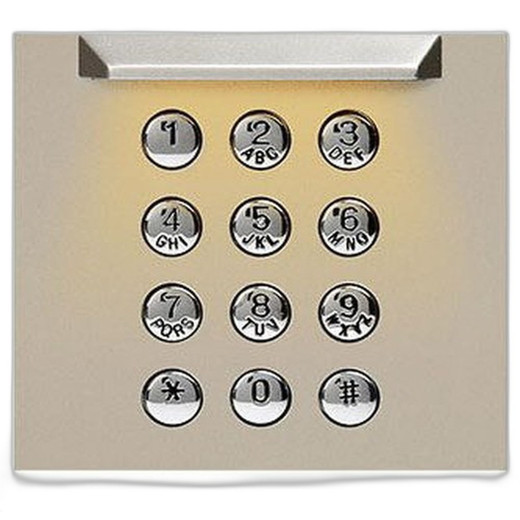

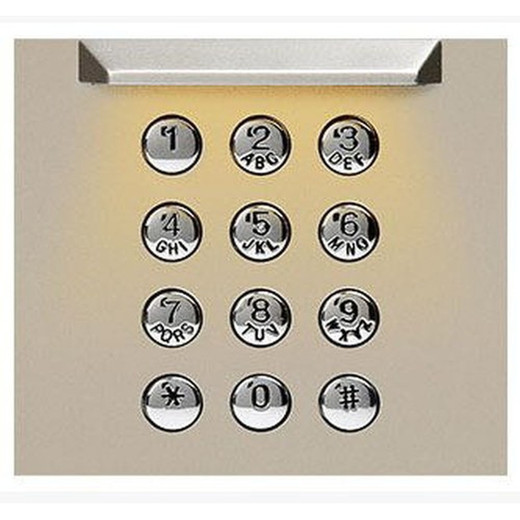

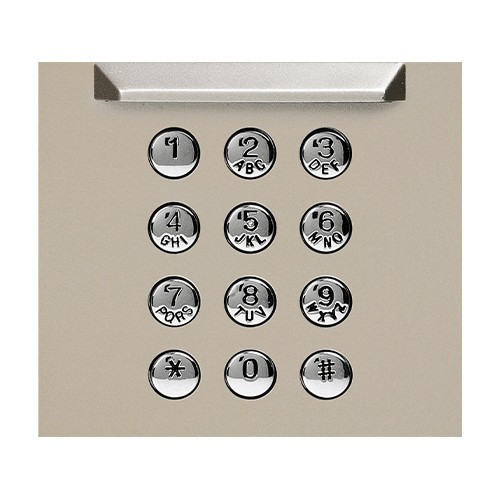

Aiphone GF-10KP Entrance Panel for GF-10K Intercom System
Overview
The Aiphone GF-10KP is a replacement or expansion entrance panel for the Aiphone GF-10K intercom system. This modular component integrates directly into existing GF-10K deployments without requiring architecture changes or extensive reconfiguration. Built from zinc die cast material with a vandal-resistant design, the GF-10KP handles mixed indoor/outdoor environments where both durability and weather resistance matter — think multi-tenant lobbies, commercial building entries, and access-controlled facility gates.
Key Features
- IP43 Environmental Rating: Dust and splash protection mean the GF-10KP can mount in covered outdoor vestibules and semi-exposed entry alcoves without degradation. IP43 stops rain spray and light debris; if you need full water jet resistance or submersion, you'd step up to IP66 or IP67, but that's rarely required for entrance panels in sheltered locations.
- 5MP Resolution Capability: The panel delivers enough clarity for facial recognition and credential verification at close range — the distance a visitor stands from an entrance station. For panoramic lobby coverage or longer-throw identification, consider a complementary IP camera on the building exterior or interior soffit instead.
- Zinc Die Cast Housing: Non-corrosive construction resists salt air and humidity, extending service life in coastal or high-moisture environments without protective coatings or frequent maintenance cycles.
- Vandal-Resistant Design: Mechanical strength discourages tampering and accidental damage. This matters in high-traffic or semi-public spaces where panels face regular contact and occasional rough handling.
- GT Series Modular Integration: The GF-10KP connects via standard GT Series bus architecture. You can pair it with audio stations, video tenant display units, NFC reader modules, and security guard stations on the same backbone — no separate networking or power infrastructure per expansion.
- Audio and Video Interoperability: Seamlessly bridges audio calls and video streams with tenant stations and guard posts. Simplifies wiring — one backbone supports mixed media without protocol translation or gateway appliances.
Integration and Compatibility
The GF-10KP functions as an entrance module within the modular GT Series platform. It supports standard wiring and bus connections consistent with GT Series architecture, making it suitable for expansion in multi-unit residential properties, commercial buildings, and access control applications. Pair it with audio-only tenant stations for basic intercom on upper floors, or add video display units in lobbies for two-way verification before entry release. The architecture scales from small 2–3 unit buildings to large commercial complexes without requiring backbone upgrades — a critical advantage for retrofit projects where ducting is constrained.
The GF-10KP (often searched as GF 10KP) replaces or expands an existing entrance station. If you're adding units to an existing GF-10K system, verify your current control unit has available module slots; if it's at capacity, you may need a larger control unit or a second controller synchronized via network connection.
Deployment Considerations
Mount the GF-10KP at a height and angle that optimizes sightlines to visitor faces — typically 48–60 inches above grade at the main entry. Ensure the mounting surface (stainless steel, aluminum, or powder-coated steel) can handle the unit's weight without flexing. Wire entry points using weatherproof conduit or cable glands if exposed to weather. Test audio clarity in the field before final installation, particularly if ambient noise from traffic or HVAC systems is present — building-site acoustics vary widely.
Frequently Asked Questions
Q: Can I use the GF-10KP as a replacement for an older entrance panel on my GF-10K system?
A: Yes. The GF-10KP is designed as a replacement entrance module for the GF-10K. It connects via the same GT Series bus architecture and wiring. Verify your control unit supports the module before ordering.
Q: What's the resolution of the GF-10KP?
A: The GF-10KP is 5MP capable, providing sufficient clarity for facial recognition and credential verification at entrance distances.
Q: Is the GF-10KP suitable for outdoor mounting?
A: The IP43 rating provides dust and splash protection, making it suitable for covered outdoor and semi-exposed entry areas. For unprotected outdoor mounting with direct rain or water jets, consider an IP66 or IP67-rated alternative.
Q: Can I expand my existing GF-10K system by adding a GF-10KP?
A: Yes. The GF-10KP integrates seamlessly into existing GF-10K deployments as an expansion module. Verify your control unit has available slots and that you have adequate wiring capacity to the new entrance location.
Q: What material is the GF-10KP housing?
A: The housing is zinc die cast with vandal-resistant design, providing durability and resistance to corrosion in mixed environmental conditions.
Q: Does the GF-10KP work with NFC readers or other GT Series modules?
A: Yes. The GF-10KP integrates with NFC-enabled tenant stations, audio/video modules, and security guard stations via the standard GT Series bus architecture.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The GF-10KP is a straightforward entrance panel replacement that deserves consideration if you're managing an existing Aiphone GF-10K system and need to add capacity or refresh an aging entrance station. The 5MP resolution and IP43 rating are competent specs for close-range visitor verification and covered-entry deployments — nothing exotic, but adequate for the job.
Technical Highlights:
- 5MP Resolution: Sufficient for facial recognition and ID verification at typical visitor-to-panel distances (2–4 feet). You're not capturing fine detail across a large lobby, but that's not the design goal — entrance stations are point-of-entry devices, not surveillance wide-shots.
- IP43 Environmental Rating: Handles dust and splash in covered vestibules and alcoves without concern. Humidity and light salt spray won't degrade the zinc die cast housing over a 5–10 year lifecycle. Don't mount this in direct rain or high-pressure wash zones — step up to IP66 if you need that.
- Zinc Die Cast Vandal Resistance: Real durability against accidental damage and deliberate tampering. Matters in multi-tenant buildings where foot traffic is heavy and occasional rough contact is inevitable. No cheap plastic, no thin sheet metal that dents on impact.
Deployment Considerations:
- Verify your GF-10K control unit has available module slots before ordering. At-capacity systems require either a larger control unit or a networked secondary controller — both add cost and complexity.
- The GF-10KP is wired via GT Series bus architecture. If you're retrofitting into an old installation with degraded or missing conduit, budget for new runs — you can't just tack new wiring to existing cable trays without risking EMI or physical damage.
Deploy the GF-10KP in multi-tenant residential buildings, commercial office lobbies, and access-controlled facility gates where you're replacing or expanding an existing intercom backbone. It's not a surveillance camera — it's an access verification tool. If you need building-wide security coverage or panoramic lobby footage, pair it with an independent IP camera on a separate network backbone.
