Aiphone AX-DM Audio Door Station, Mullion Mount

Overview

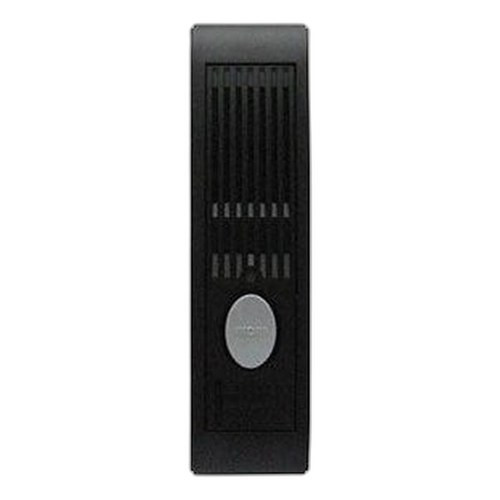

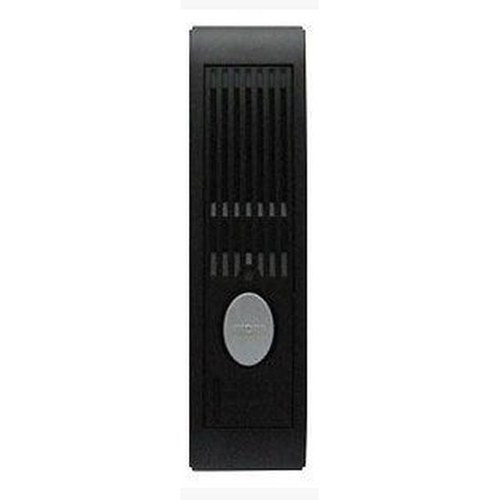

The Aiphone AX-DM is a professional-grade audio door station engineered for outdoor and semi-exposed mullion mounting applications. Designed as part of the AX Series intercom ecosystem, the AX-DM delivers hands-free audio communication with robust weather protection and simplified installation via standard Cat-5e or 2-conductor wiring. This station integrates seamlessly into larger multi-door access systems and is compatible with AX Series master units, IE-8 Series systems, IPW-1A, KB-Series, and TD-H Series platforms.

Key Features

• Mullion-Mounted Design: Specifically engineered for direct surface mounting to wall mullions or flat wall surfaces, providing flexible installation in architectural frames and vertical structural elements.
• Hands-Free Audio Communication: Full two-way audio operation without handset requirement, enabling quick visitor interactions and streamlined call handling in high-traffic entry points.
• IP43 Weather Protection: Rated IP43 for protection against water spray and dust ingress, suitable for covered outdoor areas, building soffits, and sheltered exterior mounting locations.
• PoE+ Power Delivery: Operates on PoE+ (802.3at) standard network power, eliminating the need for dedicated 24V transformer infrastructure and reducing installation complexity on Cat-5e runs.
• ABS Plastic Construction: Durable thermoplastic housing resists corrosion, UV degradation, and impact damage common in commercial and institutional entry environments.
• Extended Cat-5e Reach: Supports wiring distances up to 980 feet over Cat-5e or standard 2-conductor cabling, enabling cost-effective deployment across large campuses, multi-floor buildings, and distributed facility layouts.
• Wide Operating Temperature Range: Rated 14°F to 140°F (-10°C to 60°C), ensuring reliable performance in climate-controlled and unconditioned building entry zones.
• Multi-System Compatibility: Integrates with AX-8M and AX-8MV audio/video masters supporting up to 8 master stations and 8 sub-stations per master, plus add-on selector modules for 16-door configurations.

Integration & Compatibility

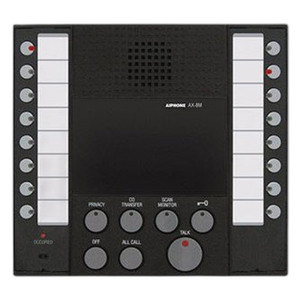

The AX-DM door station operates as a peripheral endpoint within the Aiphone AX Series distributed intercom architecture. It connects directly to AX-8M Audio Masters or AX-8MV Audio/Video Masters without requiring additional gateway hardware. Multi-door facilities can expand capacity using AX-16SW selector modules, supporting 16-door installations. The station is also compatible with legacy IE-8 Series systems, IPW-1A IP intercom platforms, KB-Series key phones, and TD-H Series telephone interfaces, providing flexibility in hybrid telephony and intercom environments. Standard Cat-5e or 2-conductor wire simplifies retrofit installations where dedicated 24V runs do not exist.

Technical Specifications

Power & Connectivity: PoE+ (802.3at) via Cat-5e or 2-conductor wiring; maximum cable run 980 feet.

Environmental: IP43 rating; operating temperature 14°F to 140°F (-10°C to 60°C).

Physical Construction: ABS plastic housing with surface-mount wall or mullion attachment.

Audio: Hands-free communication mode.

Jerry Tildsen

From a systems engineering perspective, the Aiphone AX-DM mullion station fills a legitimate gap in distributed intercom deployments where architectural mullions, curtain wall frames, or narrow structural elements define the entry point geometry. I've evaluated the AX-DM in several campus and healthcare facility projects, and the mullion-specific mounting bracket eliminates the need for custom adapters or surface-mount rework in frame-dependent applications.

Technical Highlights:

• PoE+ Architecture: Eliminates 24V transformer dependencies and reduces power infrastructure costs. At PoE+ (802.3at) delivery, the unit operates over standard Cat-5e runs at distances up to 980 feet, critical for multi-building campuses where 24V DC drop becomes problematic.
• IP43 Weathering: The IP43 rating is appropriate for covered outdoor and semi-exposed applications—soffits, recessed porches, building eaves. However, IP43 is NOT rated for direct rain exposure or coastal salt spray environments. Verify mounting location does not receive persistent precipitation or high-pressure water spray.

Deployment Considerations:

• Mullion mounting requires field verification that the physical mullion or mounting surface can accept the AX-DM bracket without modification. Pre-installation site survey is essential to avoid on-site rework.
• The AX-DM is an audio-only station. If video identification or visual analytics are required at the entry point, integrate with AX-DV (video door station, surface mount) or AX-DVF (flush-mount video station) depending on architectural constraints.
• Hands-free mode assumes ambient noise levels typical of building lobbies or covered entry porches. High-noise loading dock or outdoor plaza environments may reduce intelligibility without supplemental speaker amplification or noise cancellation.

For integrators specifying distributed intercom in frame-heavy architectural settings, the AX-DM mullion mount is a practical choice that reduces retrofit complexity. Confirm IP43 adequacy for your rain exposure profile and validate mullion surface compatibility during the design phase.
