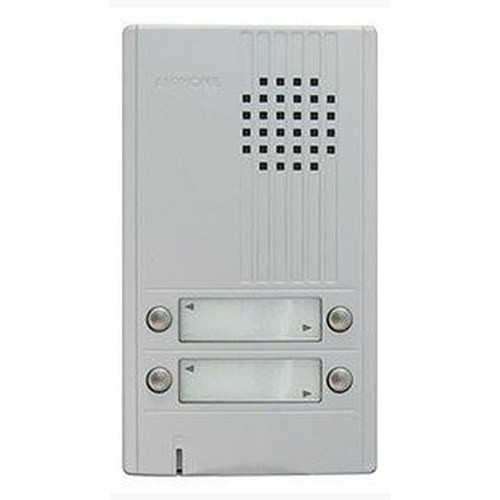

Aiphone DA-4DS 4-Call Audio Door Station
Overview
The Aiphone DA-4DS is a 4-call audio entrance station purpose-built for DA Series and DB Series audio-only intercom deployments. This wall-mounted unit combines hands-free communication, direct-select routing, and weather-resistant construction—eliminating confusion at entry points and reducing the need for external power infrastructure. The aluminum housing with sealed construction operates reliably from 14°F to 140°F (-10°C to 60°C), making it suitable for climates with seasonal temperature swings.
Key Features
- 4-Call Direct Select Buttons: Four dedicated buttons route incoming calls directly to specific destinations without menu navigation or numeric entry. This matters in high-traffic facilities and assisted-living environments where caller confusion costs time and creates frustration—fewer keystrokes mean fewer mistakes.
- Backlit Directory Display: Illuminated legend improves visibility during evening hours and low-light entry conditions, reducing the likelihood that callers select the wrong button. A simple feature with measurable impact on usability.
- Hands-Free Microphone and Speaker: Built-in audio transducers allow visitors to communicate without a handset. This is critical for accessibility—callers with mobility issues, packages, or arms full don't need to juggle a phone while speaking.
- Weather-Resistant Aluminum Construction: Sealed cover and corrosion-resistant housing withstand rain, wind, and temperature extremes. IP-rated for outdoor mounting, this eliminates the need for a separate weather hood or protective enclosure in most installations.
- Door Release Integration: The DA-4DS supports electric strike activation via the EL-12S relay (9.5–20V AC, 70Ω minimum resistance). This means you can integrate door access control without additional relay panels—the station itself coordinates the unlock signal.
- Power from Entrance Station: The unit draws power from the main entrance station, eliminating the need for a separate power supply at the door. For remote building entrances, this simplifies installation and reduces failure points.
Wiring and Distance Limitations
The DA-4DS communicates via standard 2-conductor twisted-pair cabling. Cable selection matters: Aiphone specifies either shielded #822202 cable (recommended in electrically noisy environments with proximity to AC lines or other RF sources) or low-capacitance #871802 non-shielded cable (preferred for maximum distance runs where capacitive loading could degrade audio). Maximum run distances are 360 feet using 22 AWG wire or 1,020 feet using 18 AWG wire—practical limits that accommodate everything from single-story storefronts to multi-building campus deployments. Larger gauge wire (18 AWG) reduces resistive losses, enabling longer runs without audio degradation or power drop-off to the entrance station itself.
Integration and Compatibility
The DA-4DS integrates directly into existing Aiphone audio intercom systems using DA-series tenant stations and DB-series master stations. The unit supports both single-building and multi-unit configurations without firmware updates or additional gateway hardware. For larger common areas or high-traffic lobbies, audio output can be extended via the IER-2 Call Extension Speaker, ensuring that announcements reach multiple zones.
Environmental Operating Range
Operating temperature range of 14°F to 140°F (-10°C to 60°C) covers most North American and temperate climates without seasonal shutdown or performance degradation. This range eliminates the need for heated or cooled protective cabinets in mild to moderate climates, reducing installation complexity and cost.
Frequently Asked Questions
Q: Can the DA-4DS be installed in a wet environment like an exterior carwash or boat dock?
A: The DA-4DS is weather-resistant with sealed aluminum construction, suitable for rain and spray exposure. However, it is not submersion-rated. Avoid direct continuous water spray or submerged installations; consider an additional protective hood or canopy in high-splash applications.
Q: What's the maximum cable run from the power supply to the DA-4DS entrance station?
A: Using 22 AWG wire, maximum distance is 360 feet. If you need to exceed this distance, upgrade to 18 AWG wire, which permits runs up to 1,020 feet. The larger gauge reduces resistive losses and voltage drop.
Q: Does the DA-4DS work with video door stations or only audio systems?
A: The DA-4DS is audio-only and integrates specifically with DA Series and DB Series audio intercom systems. It is not compatible with video-enabled door stations or IP-based video intercom platforms.
Q: How do I control the electric door strike from the DA-4DS?
A: Connect the EL-12S 12V AC electric door strike relay to the entrance station. The relay accepts 9.5–20V AC input with a minimum load resistance of 70Ω or higher. The DA-4DS tenant or master station can then trigger the unlock signal via a button press or automated rule.
Q: Can I extend audio output from the DA-4DS to a hallway or stairwell?
A: Yes. Use the IER-2 Call Extension Speaker to broadcast audio into adjacent areas. This is useful in larger buildings where the entrance station speaker alone may not reach all tenants or visitors in a common area.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In my experience deploying audio intercom systems across mixed-use and residential properties, the Aiphone DA-4DS strikes a practical balance between feature density and operational simplicity. The 4-call capacity eliminates the need for a directory lookup or numeric keypad, reducing caller confusion at the entry point—a significant advantage in high-traffic buildings or assisted-living environments where occupant mobility may be limited. The DA-4DS handles this use case cleanly without overcomplication.
Technical Highlights:
- Direct-Select Button Architecture: Four dedicated buttons eliminate menu navigation. In real-world deployments, this means fewer misdirected calls and faster connection times—measurable improvements in user satisfaction, especially in facilities serving elderly or non-English-fluent residents.
- Backlit Directory and Hands-Free Audio: Visibility in evening hours plus speaker/microphone accessibility reduce barriers for visitors with mobility constraints or packages. This is accessibility, not luxury—it matters for ADA compliance and operational efficiency.
- Cable Run Flexibility (360–1,020 feet): The difference between 22 AWG and 18 AWG wire is significant. If your entrance is more than 360 feet from the main station, you must spec 18 AWG—don't try to push 22 AWG beyond its limit or audio quality collapses. This is a gotcha on larger campuses.
- Self-Powered from Entrance Station: No external power supply required at the door. In harsh outdoor environments, this reduces environmental stress on PSUs and simplifies troubleshooting—one fewer component to fail.
Deployment Considerations:
- Cable type matters: shielded (#822202) if you're near electrical noise; non-shielded (#871802) if you need maximum distance. Don't assume one size fits all electromagnetic environments.
- Door strike integration requires the EL-12S relay and AC power supply (9.5–20V AC minimum). This is not a plug-and-play integration—you need a separate relay module and power infrastructure. Plan for this in your cabinet design.
- Weather-resistant design covers rain and seasonal temperature extremes, but this is not a submersion-rated device. Avoid high-splash applications like carwashes or dock areas without additional protective housing.
Deploy the DA-4DS in residential or mixed-use buildings with 4 or fewer primary destinations (lobby, concierge, emergency, maintenance) where hands-free accessibility and direct routing outweigh the need for large tenant directories. This is a solid fit for assisted-living facilities, small office lobbies, and apartment buildings with a dedicated concierge or security desk.
