StarTech VSEDIDHD HDMI EDID Emulator and Signal Manager
Overview

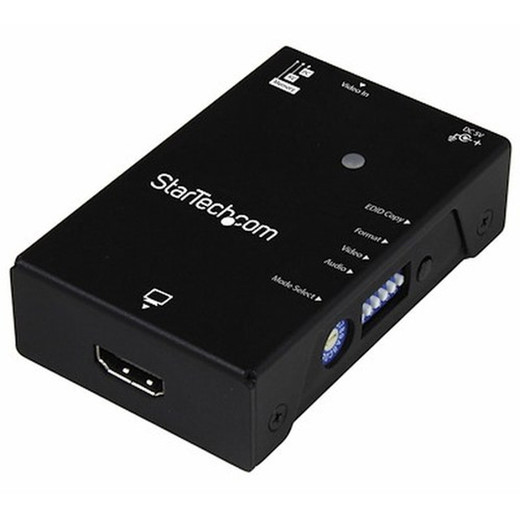

The StarTech VSEDIDHD is a compact, USB-powered HDMI EDID emulator designed to copy, ghost, or lock display EDID data so that a video source always outputs at the correct resolution — regardless of whether a monitor is physically connected. At just 3.1 × 2.0 × 0.9 inches and 5.4 oz, this steel-bodied device fits inline on a desk, behind a display panel, or inside a rack enclosure without consuming meaningful space. If you've ever had a headless server drop to a low-res fallback, a KVM switch reset a signal chain, or a videowall controller lose its resolution handshake after a power cycle, the VSEDIDHD addresses that class of problem directly.
In AV signal management and security control room environments, consistent resolution output isn't cosmetic — it affects how video management software renders feeds, how capture cards record, and whether display matrices route signals cleanly. The VSEDIDHD captures and stores the EDID from a real connected display, then presents that stored profile to the upstream source even when the display is absent or powered down.
Key Features
- EDID Copy and Ghost Mode: The device reads and stores the EDID from a connected HDMI display, then presents that stored profile to the source when the display is disconnected. This means a headless workstation, server, or media player won't drop to a 640×480 fallback or disable GPU outputs during remote sessions — a real issue in control rooms and server closets where monitors are physically absent during operation.
- Maximum Resolution 1920×1080 (1080p): Supports the full 1080p signal chain, which covers the majority of security workstation displays, video walls driven at per-panel 1080p, and HDMI capture cards used in hybrid IP/analog recording setups. Not rated for 4K — if your displays or capture targets run 4K, this is the wrong tool; plan accordingly.
- Nine Supported Resolutions: Beyond 1080p, the VSEDIDHD handles 1680×1050, 1600×1200, 1600×900, 1440×900, 1366×768, 1280×1024, 1280×720, and 1024×768. This range covers virtually every legacy and current display format found in commercial security operations centers and enterprise IT environments, including older 4:3 monitors still in active use at access control stations.
- USB-Powered Operation: Draws power from any USB port — no external power supply, no wall adapter, no power budget planning required. In compact deployments where power outlet density is already stretched (rack enclosures, podium mounts, mobile carts), eliminating one more AC adapter matters. Connect to any available USB-A port and the device is live.
- HDMI In and HDMI Out: Sits inline between any HDMI source and HDMI display. No adapters, no conversion losses — the signal passes through the same connector standard from source to screen. Compatible with the full breadth of HDMI signal distribution hardware including switches, extenders, and matrix routers commonly used in security and AV infrastructure.
- Steel Construction: The enclosure is steel rather than plastic — relevant in environments where devices get handled frequently, mounted in tight spaces, or left in server rooms where physical durability matters over the long term. At 154g, it's light enough to hang off a cable without stressing the port, but solid enough to hold up to regular use.
- Operating Temperature 0°C to 40°C (32°F to 104°F): Rated for standard indoor commercial environments. This covers server rooms, control rooms, and office IT closets operating under normal HVAC conditions. Not rated for outdoor or uncontrolled-temperature deployments — if your installation runs hot (above 40°C), factor that into placement.
- Compact Form Factor — 3.1 × 2.0 × 0.9 in: Small enough to fit behind a display, inside a 1U gap in a rack, or zip-tied to a cable run without creating cable management headaches. Most integrators will install this inline and forget it's there, which is exactly the right outcome for infrastructure-layer signal management hardware.
- 2-Year Warranty: The VSEDIDHD carries a 2-year manufacturer warranty, consistent with StarTech's commercial product line — appropriate for infrastructure hardware that's expected to remain in place for the life of the installation.
Integration and Compatibility
The VSEDIDHD works with any HDMI source and any HDMI display. In security control room configurations, common use cases include: locking GPU outputs on headless VMS servers so remote desktop sessions always render at full resolution; preventing KVM switches from dropping signal resolution during monitor-switching events; and maintaining stable EDID presentation to capture cards that key their recording resolution off the detected display profile. The device requires no driver installation and no software configuration — plug in via USB for power, connect HDMI source and display, and it operates transparently. Storage temperature range of -20°C to 60°C (-4°F to 140°F) means units can be stored in unheated warehouses or staging areas between deployments without concern. Humidity tolerance up to 80% RH covers the majority of indoor commercial environments. For procurement teams sourcing StarTech signal management products, this unit ships factory-new and is sourced from verified supply channels — no grey-market, no parallel imports.
Frequently Asked Questions
Q: What does the VSEDIDHD actually do, and when do I need it?
A: The VSEDIDHD copies and stores the EDID (Extended Display Identification Data) from a connected HDMI display, then presents that stored profile to the upstream video source when the display is absent or powered off. You need it when a headless server or workstation drops to a low-resolution fallback during remote access, or when a KVM switch causes resolution resets during monitor-switching events.
Q: What is the maximum resolution the VSEDIDHD supports?
A: The VSEDIDHD supports a maximum resolution of 1920×1080 (1080p). It also supports 1680×1050, 1600×1200, 1600×900, 1440×900, 1366×768, 1280×1024, 1280×720, and 1024×768. It is not rated for 4K output — if your displays or capture hardware operate at 4K, a different device is required.
Q: Does the VSEDIDHD require external power or a driver installation?
A: No. It is USB-powered — connect it to any available USB-A port for power. No external power adapter is needed, and no driver or software installation is required. It operates transparently inline between your HDMI source and display.
Q: What is the warranty on the VSEDIDHD?
A: The VSEDIDHD carries a 2-year manufacturer warranty.
Q: What are the operating temperature limits for the VSEDIDHD?
A: The operating temperature range is 0°C to 40°C (32°F to 104°F), suitable for standard indoor commercial environments including server rooms and control rooms. Storage temperature is rated -20°C to 60°C (-4°F to 140°F).
Q: Can the VSEDIDHD be used with HDMI switches, matrix routers, or KVM switches?
A: Yes. The VSEDIDHD sits inline on any HDMI signal path and is compatible with HDMI switches, matrix routers, extenders, and KVM switches. It presents a consistent EDID profile to whatever source device is upstream, regardless of what is connected downstream.
The VSEDIDHD solves a specific and genuinely frustrating problem: video sources that lose their resolution handshake the moment a display is removed or powered down. I've seen VMS servers in headless rack configurations drop to 1024×768 during remote management sessions because there's no physical monitor attached — every time someone tries to review footage or configure the system remotely, the interface is cramped and unusable. This device eliminates that failure mode by presenting a stored 1080p EDID to the source at all times.
Technical Highlights:
- EDID Ghost at 1080p: Locks the upstream source to a full 1920×1080 output profile even with no display connected — directly prevents the resolution fallback that disrupts remote VMS sessions and capture card recording configurations.
- USB-Only Power Draw: No dedicated power supply, no AC outlet required. In rack enclosures and control room installations where outlet density is already tight, this matters — one less adapter competing for space and power.
- Steel Enclosure, 154g: At under six ounces in a steel shell, it's durable enough for long-term inline installation without port stress or physical degradation. The 3.1 × 2.0 × 0.9-inch footprint fits behind virtually any display or in a 1U gap without cable management complications.
Deployment Considerations:
- Confirm your entire signal chain — source, switches, extenders, and capture targets — operates at 1080p or below. The VSEDIDHD is not rated for 4K; if any part of your chain requires 4K EDID emulation, this unit won't serve that need.
- Operating temperature ceiling is 40°C (104°F). In server rooms running hot or poorly cooled AV equipment racks, verify ambient temperature before installing inline — sustained operation above that threshold isn't covered by the spec.
This is the right device for headless VMS server racks, security operations center workstations running KVM switches, and any HDMI signal path where display-disconnect events cause source resolution instability. At 1080p and under — this is the inline fix that stays invisible once it's working.
