ATEN 2A-130G VGA Edid Emulator

Overview

The ATEN 2A-130G VGA EDID emulator is designed to maintain a fixed display resolution and prevent signal loss when a display is disconnected. This ensures that video sources, such as PCs or servers, continue to output a stable signal at a pre-defined resolution, preventing the need for re-configuration. It's ideal for scenarios where a monitor might be temporarily removed or switched, such as in digital signage, video wall installations, or KVM switch setups where consistent video output is critical. The 2A-130G model specifically supports resolutions up to 1920 x 1200 @ 60Hz.

Compatibility

This EDID emulator is compatible with any VGA video source that requires a stable EDID signal. It functions by storing the EDID data from a connected display and presenting it to the video source. This makes it universally compatible with PCs, servers, KVM switches, and other video output devices that utilize VGA connectivity. It is designed to work with displays that support resolutions up to 1920 x 1200 @ 60Hz and 1366 x 768 @ 60Hz.

Installation Notes

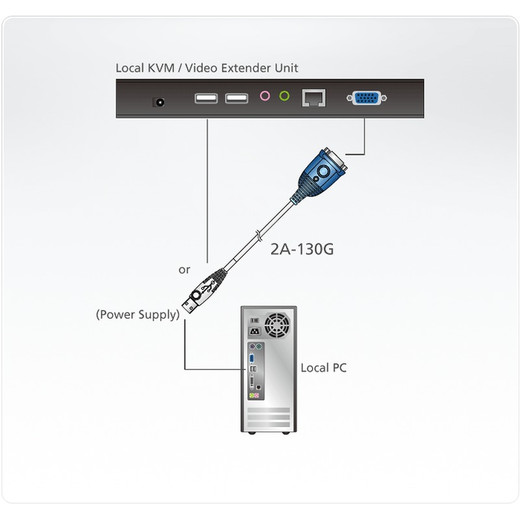

The ATEN 2A-130G requires a USB port for power. Simply connect the VGA output from your video source to the VGA input on the emulator, and connect the USB power cable. The emulator then presents the stored EDID to the source. Operating temperature ranges from 0-50°C, with storage temperatures between -20-60°C. Humidity should be kept between 0-80% RH, non-condensing. The housing is constructed from plastic.
