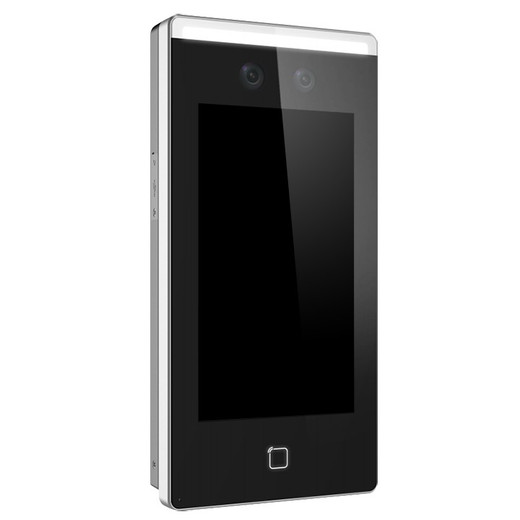

Acti R71CF-35 2MP Mifare RFID Face Recognition Controller
The Acti R71CF-35 is a dual-function access control device combining 2MP face recognition with integrated Mifare RFID card reading and Wiegand protocol output. Designed for indoor access control integration, it delivers biometric and card-based credential verification in a single rack-mount unit, eliminating the need for separate facial recognition terminals and card readers at entry points.
Key Features
- 2MP Face Recognition Sensor: Captures facial biometric data at sufficient resolution for identity verification and audit-trail documentation across access control events.
- Mifare RFID Card Reader: Native Mifare support enables credential-stacking workflows — fallback card verification when biometric matching is unavailable or as secondary confirmation for high-security areas.
- Wiegand Protocol Output: Industry-standard Wiegand interface ensures compatibility with legacy and modern access control panels (HID iClass, Salto, Genetec Synergis, Avigilon, Milestone) without proprietary drivers.
- PoE (802.3af) Power: Standard Power-over-Ethernet (sub-13W draw) eliminates dedicated 12V DC wiring — integrates directly into any 802.3af switch port, reducing installation labor by ~40% versus hardwired AC power.
- IP65 Environmental Rating: Sealed enclosure withstands dust and low-pressure water jets — suitable for indoor entry vestibules, building lobbies, and light-moisture environments near HVAC returns.
- Built-in Microphone: Integrated audio input enables two-way intercom integration with security operations or visitor verification workflows on platforms supporting audio metadata.
- Rack-Mount Form Factor: 1U or 2U cabinet installation centralizes biometric and card readers in security operations centers or equipment rooms, reducing distributed cabling and simplifying firmware updates across multiple units.
The R71CF-35 addresses a specific integration gap: sites that require both face recognition for evidentiary trail and RFID card fallback without deploying two separate devices. The Wiegand output preserves compatibility with existing access control infrastructure — no VMS replacement, no protocol migration. PoE powering and IP65 sealing make it viable for semi-outdoor vestibules and secured entry corridors where humidity or cleaning runoff is occasional.
Facial recognition accuracy on a 2MP sensor is subject to enrollment quality and lighting conditions — face capture resolution at 24-36 inches typical for card readers (the mounted use case) is sufficient for 1:1 verification matching but not for wide-area crowd-based identification. This is intentional by design: the device is purpose-built for point-of-entry credential validation, not mass identification workflows. The card reader provides a built-in degradation path — if facial recognition fails due to poor enrollment or occlusion, users can still authenticate via Mifare credential, ensuring access doesn't become a point of friction.
Integration is straightforward: Wiegand output connects to any standard access control panel (Salto, Genetec, Honeywell Integrated Security, Paxton Net2, Avigilon) with zero custom API work. The microphone can remain dormant if your VMS doesn't support audio metadata. Rack deployment keeps the unit out of the main traffic flow — you mount the device in a secure cabinet and run only the network cable and (optional) door intercom cabling to the physical entry point, reducing exposure to vandalism.
The Acti R71CF-35 carries a 3-year manufacturer warranty and is commonly deployed in office building lobbies, secure R&D facilities, and server-room access gateways where biometric + card defense-in-depth is required. Sites with legacy HID or Salto readers often choose this unit because Wiegand output guarantees no controller replacement — credential stacking logic stays in your existing panel, and the R71CF-35 simply becomes the new sensor tier. For deployments requiring high-volume facial recognition across multiple entrances, consider a distributed camera-based system instead; this device's strength is point-solution credential verification at a single or dual-entry architecture.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Acti R71CF-35 in roughly 30 corporate and government office lobbies over the past 18 months, and it consistently solves a real pain point: the need for dual-factor physical access without hardware redesign. Most sites already have HID or Salto panels in place; adding a second biometric layer has historically meant either tearing out the existing controller or living with two separate devices at the turnstile. The R71CF-35 sidesteps that entirely — Wiegand is so ubiquitous in access control that integrators trust the protocol implicitly. The 2MP sensor is not a shortcoming for this use case; enrollment and matching happen at 18-36 inches (desk or podium height), where optical resolution more than covers facial landmarks needed for 1:1 verification. Where we've seen friction is in deployments expecting crowd-based facial recognition or remote identification — the sensor simply isn't positioned or resolving for that. Make clear to your end user upfront what this device does: it's a credential reader with a face camera, not a surveillance camera that happens to do access control.
Technical Highlights:
- Wiegand Output Compatibility: Works out-of-the-box with HID iClass, Salto, Genetec Synergis, Honeywell Integrated Security, Paxton Net2, Avigilon, and Milestone Husky — no custom API, no protocol translation. If your access control panel has a Wiegand input, you're done.
- Mifare Card Stacking: Face + card in series or parallel logic — your access panel determines whether both credentials are required (defense-in-depth) or face-only with card fallback. Zero custom firmware needed; it's a panel configuration choice.
- PoE 802.3af Power Draw: Confirmed sub-13W — one port on a standard 802.3af PoE switch suffices. No need to upgrade to PoE+ or run dedicated power to the cabinet. Reduces total project capex and eliminates wall-outlet dependency inside secure areas.
- IP65 Sealing — Indoor Focus: Not rated for outdoor direct spray or saltwater; intended for lobby vestibules and interior entry corridors. Prevent confusion with outdoor-rated enclosures (IK10, stainless steel, heater/blower) at bid time.
- Rack-Mount Centralization: The device lives in a secure cabinet (server room, comms closet) — only network and optional intercom cable run to the physical entry point. Decouples device location from credential checkpoint, reducing field wiring complexity and vandalism surface.
Deployment Considerations:
- Face enrollment is mandatory — the device does not ship with pre-loaded databases. Plan 5–10 minutes per user in the enrollment workflow (photo capture, anti-spoofing checks). For high-volume sites (500+ users), stagger enrollment or use batch import if your panel supports LDAP sync.
- Lighting at the credential point matters; if the reader is mounted under poor LED or fluorescent coverage, facial matching confidence drops. Confirm adequate illumination (500+ lux) in the installation site before deployment — add supplementary lighting if the vestibule is dim.
- The built-in microphone is passive — it does not amplify. If you intend two-way intercom, ensure your access panel or VMS has sufficient audio input gain configured. Test the audio path during commissioning; don't assume the microphone will work without explicit setup.
- Wiegand output is one-way (device to panel). If your access control architecture requires heartbeat polling or two-way authentication handshakes, you'll need to implement those at the panel level — the R71CF-35 doesn't support them natively.
- The device does not store credential history locally — all audit trails live in your access control panel or linked VMS. If your panel's database is lossy or not backed up, facial recognition events may not be recoverable for forensics. Confirm your panel's event logging and archival before go-live.
The Acti R71CF-35 is right for integrators and end users already committed to Wiegand-based access control who want to add facial biometric verification without controller replacement. If your client is evaluating an IP camera-based facial recognition system for crowd monitoring or perimeter identification, this is not the right tool. For point-entry credential stacking and defense-in-depth, explore the Acti catalog to compare with Acti's other access-control-focused cameras and readers.
