IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Out of stock
Axis

SKU: 03004-001

Axis TQ1937-E 850nm IR Illuminator Kit - 03004-001

850nm IR illuminator kit with 50m range for Q16/P13 cameras
- Dual-lens design (2 wide + 2 tele) balances overview and detail coverage
- 50-meter effective illumination at 850nm for night vision and LPR
- IP66/IP67 rated, IK10 impact resistant, operates -40°C to 65°C
Special Order · Ships in 2-3 weeks

$182.99

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 03262-001

Axis TQ1938-E Protection Bracket Pack of 5 - 03262-001

Vandal-resistant glass protection for outdoor camera housings
- Compatible with TQ1938-E, Q17-series, TQ1815-E, and TQ1819-E
- Rugged reinforced construction rated for outdoor impact resistance
- Pack of 5 units for efficient multi-site surveillance deployments
Special Order · Ships in 2-3 weeks

$50.99

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 02826-001

Axis TQ2801-E Top Cover 50mm - 02826-001

50mm top cover for Axis TQ2801-E bracket systems
- Direct-fit replacement for TQ2801-E mounting brackets, no modification
- 50mm diameter cover rated for indoor and outdoor surveillance use
- Durable construction engineered for dome camera bracket applications
Special Order · Ships in 2-3 weeks

$1,183.99

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 02827-001

Axis TQ2801-E Top Cover 80mm - 02827-001

OEM top cover for Axis TQ2801-E PTZ with IP66 weatherproof sealing
- 80mm form factor direct-fit assembly maintains optical clarity outdoors
- IP66 rating seals against dust and high-pressure water jets year-round
- Genuine Axis component restores weatherproof integrity after damage or wear
Special Order · Ships in 2-3 weeks

$2,052.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02515-001

Axis TQ3001-E Rack Mount Bracket 5-pack - 02515-001

Rack mount bracket 5-pack for Q3536-LVE and Q3538-LVE cameras
- Five brackets per pack for multi-camera surveillance deployments
- Standardized rack-mount form factor integrates with server room infrastructure
- Secure positioning for Q3536-LVE and Q3538-LVE network camera models
In stock · Ships same business day

$152.99

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 02829-001

Axis TQ3002-E Mounting Bracket - 02829-001

Weather-resistant bracket for Axis network cameras, indoor/outdoor
- Flexible positioning geometry for optimal camera angles in any deployment
- Weather-resistant construction rated for harsh outdoor environments
- Compatible with Axis network cameras for stable, long-term surveillance mounting
Special Order · Ships in 2-3 weeks

$56.69 $54.99 Save $1.70

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02108-001

Axis TQ3102 Q38 Pendant Kit Accessory - 02108-001

Pendant mount kit for Axis Q38 cameras in ceiling-suspended setups
- Q38 series compatibility with all fasteners and mounting template included
- Suspends camera below ceiling for optimized angles in high-bay spaces
- Rated for indoor and outdoor covered installations year-round
In stock · Ships same business day

$80.40 $77.99 Save $2.41

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02855-001

Axis TQ3103-E Pendant Kit Mounting Solution - 02855-001

Pendant mount for Axis Q36 cameras on poles, parapets, rooftop corners
- 1.5" NPS threaded bracket fits existing pole and pipe structures
- Mounts Axis Q36 series cameras to rooftops, perimeter poles, outer corners
- Outdoor weatherproof housing with professional-grade fasteners included
In stock · Ships same business day

$141.23 $136.99 Save $4.24

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 03214-001

Axis TQ3105-SE Pendant Kit Stainless Steel - 03214-001

Stainless steel pendant mount for Q3839-SPVE in coastal and chemical environments
- Marine-grade stainless steel resists saltwater, corrosion, and chemical exposure
- 1-1/2 NPS threaded connection secures Q3839-SPVE camera with pendant positioning
- Rated for outdoor and harsh industrial deployments including offshore installations
Special Order · Ships in 2-3 weeks

$182.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02136-001

Axis TQ3201-E Recessed Ceiling Mount - 02136-001

Recessed ceiling mount for Axis Q38 and panoramic cameras; flush installation
- Mounts Q38 Series and panoramic models (P3807/P3818/P3819/Q3615/Q3617/P3619)
- Flush-ceiling design eliminates bracket shadow and preserves full panoramic view
- Indoor and outdoor rated for corporate, retail, and hospitality deployments
In stock · Ships same business day

$174.22 $168.99 Save $5.23

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02856-001

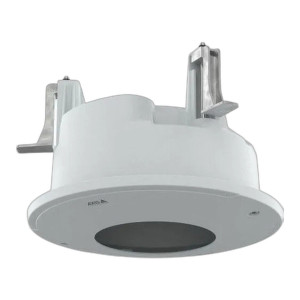

Axis TQ3202-E Q36 Recessed Mount Accessory - 02856-001

Flush recessed mount for Q36 cameras—invisible surveillance in finished spaces
- Mounts flush to ceiling or wall with zero protrusion for discreet installation
- Purpose-built for AXIS Q36 series—no adapters or alignment required
- Weather-resistant construction rated for sheltered indoor and outdoor use
In stock · Ships same business day

$184.53 $178.99 Save $5.54

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 03249-001

Axis TQ3204-E Recessed Ceiling Mount - 03249-001

Recessed ceiling mount for Axis cameras—hardware hides in cavity
- Flush-cavity design keeps mounting plate and fasteners hidden inside wall
- Only camera dome visible below ceiling for minimal visual profile
- Indoor-rated for new construction or renovation installations
In stock · Ships same business day

$162.99

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 02828-001

Axis TQ3811-E Outdoor Camera Casing - 02828-001

All-weather Axis camera housing with heater for year-round operation
- Integrated heater maintains operation in sub-zero temperatures
- Weather sealing protects against rain, snow, dust, and moisture
- Sunshield reduces glare while vandalism-resistant design deters tampering
Special Order · Ships in 2-3 weeks

$91.74 $88.99 Save $2.75

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 03247-001

Axis TQ3813-E Smoked Dome for Q38/Q48 Series - 03247-001

Smoked dome for Q38/Q48 panoramic cameras with IP66 protection
- IP66-rated construction shields against dust and water in outdoor deployments
- Smoked finish conceals camera direction while maintaining image clarity
- Direct fit for Axis Q38 and Q48 series panoramic camera models
Special Order · Ships in 2-3 weeks

$85.99

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 02277-001

Axis TQ3901 M20 Gasket Cable Entry - 02277-001

M20 weatherproof gasket for secure outdoor cable entry on Axis cameras
- Tool-free installation with included mounting hardware and instructions
- High-quality compound resists moisture, dust, and debris infiltration
- M20 thread compatible with standard Axis network camera cable entries
Special Order · Ships in 2-3 weeks

$34.01 $32.99 Save $1.02

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 02274-001

Axis TQ3902 Panoramic Camera Mount Bracket - 02274-001

Mount bracket for Axis P3818/P3827/Q3819 panoramic cameras
- Compatible with AXIS P3818-PVE, P3827-PVE, and Q3819-PVE models
- Weather-resistant construction built for outdoor and harsh environments
- Tool-free installation for quick setup and repositioning
Special Order · Ships in 2-3 weeks

$56.69 $54.99 Save $1.70

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Axis TQ1937-E 850nm IR Illuminator Kit - 03004-001

Axis TQ1938-E Protection Bracket Pack of 5 - 03262-001

Axis TQ2801-E Top Cover 50mm - 02826-001

Axis TQ2801-E Top Cover 80mm - 02827-001

Axis TQ3001-E Rack Mount Bracket 5-pack - 02515-001

Axis TQ3002-E Mounting Bracket - 02829-001

Axis TQ3102 Q38 Pendant Kit Accessory - 02108-001

Axis TQ3103-E Pendant Kit Mounting Solution - 02855-001

Axis TQ3105-SE Pendant Kit Stainless Steel - 03214-001

Axis TQ3201-E Recessed Ceiling Mount - 02136-001

Axis TQ3202-E Q36 Recessed Mount Accessory - 02856-001

Axis TQ3204-E Recessed Ceiling Mount - 03249-001

Axis TQ3811-E Outdoor Camera Casing - 02828-001

Axis TQ3813-E Smoked Dome for Q38/Q48 Series - 03247-001

Axis TQ3901 M20 Gasket Cable Entry - 02277-001

Axis TQ3902 Panoramic Camera Mount Bracket - 02274-001

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
