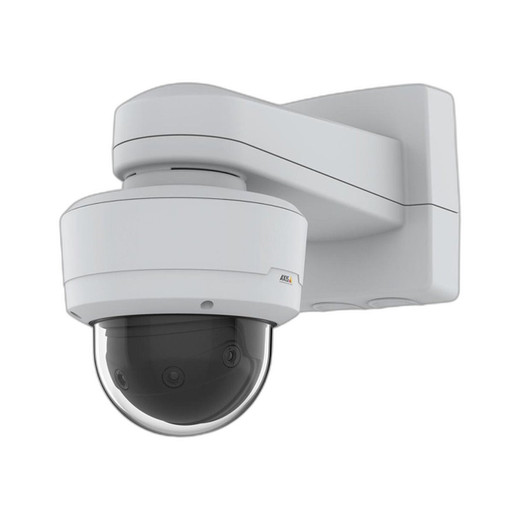

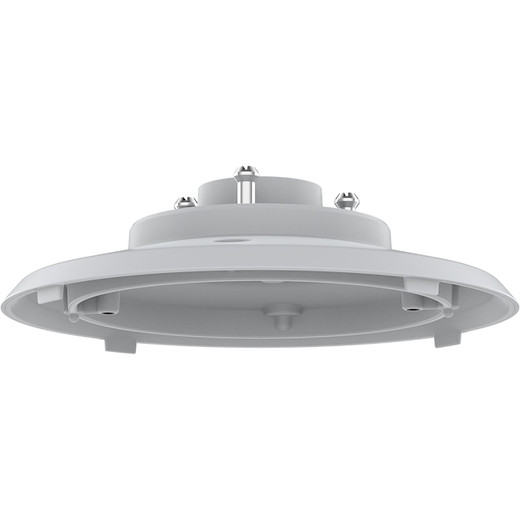

Axis 02108-001 TQ3102 Q38 Camera Pendant Kit
Overview
The Axis 02108-001 is a dedicated pendant mounting kit engineered to support Axis Q38 series network cameras in ceiling-suspended installations. This accessory solves a specific deployment challenge: when you need to position your Q38 camera below a ceiling plane — in atriums, warehouses, or open-plan facilities where conventional flush-mount or wall brackets won't work — the pendant kit provides a robust, stable platform. The kit ships with all mounting hardware and installation documentation, eliminating the need to source fasteners separately.
Key Features
- Q38 Series Compatibility: Designed specifically for Axis IP cameras in the Q38 family, ensuring mechanical fit and load rating match the camera's weight and vibration profile. This compatibility eliminates guesswork and potential mounting failures from using universal brackets rated for lighter cameras.
- Pendant Design: Suspends your Q38 camera from ceiling structure via a downward-extending arm. Ideal for high-bay monitoring (warehouses, manufacturing floors, logistics centers) where you need to position the camera lower than the actual ceiling line to optimize viewing angles and reduce glare from overhead lighting.
- Environmental Durability: Constructed from materials rated for both indoor and outdoor temperature swings. If your Q38 is rated IP66 or IP67, this mount supports year-round deployment in covered outdoor areas (loading docks, under eaves) without accelerated corrosion or joint failure.
- Complete Hardware Package: Includes fasteners and mounting template. You won't need to make separate trips for anchors, bolts, or washers — everything required for secure attachment to concrete, metal, or structural steel is in the box.
- Professional Appearance: The pendant arm integrates visually with ceiling infrastructure, avoiding the clunky look of jury-rigged brackets or cables. Matters in customer-facing environments (retail, healthcare, corporate offices) where aesthetics influence confidence in the surveillance system.
- Stable Positioning: Rigid arm construction minimizes sway and vibration — critical when you're running analytics on the Q38 or doing forensic review, because camera drift introduces false motion detection and degrades image stability on recorded video.
Integration & Compatibility
The 02108-001 (often searched as 02108 001) mounts exclusively to Axis Q38 series cameras. Verify your Q38 model — the kit will not fit earlier Axis camera families or competing brands. Installation requires a solid ceiling structure (concrete, steel, or engineered joists) capable of supporting the camera weight plus dynamic load from HVAC vibration or thermal expansion. Consult the mounting template for hole spacing and fastener type appropriate to your ceiling material.
What's in the Box
- 1x Axis TQ3102 Pendant Arm Assembly
- Mounting Hardware (fasteners and anchors for standard structural attachment)
- Installation Instructions
Frequently Asked Questions
Q: Is the Axis 02108-001 suitable for outdoor use?
A: Yes, if your Q38 camera is rated IP66 or higher. The pendant kit's materials support outdoor temperature swings and moisture. However, it is designed for covered installations (under eaves, overhang, canopy) rather than direct rain or submersion scenarios.
Q: What Q38 camera models does the 02108-001 support?
A: The kit is engineered for the Axis Q38 series. Confirm your specific Q38 model against the included installation guide to ensure mechanical compatibility before ordering.
Q: Can I install the 02108-001 into drywall or drop ceiling tiles?
A: No. Pendant mounting requires solid structural support — concrete, steel joists, or engineered wood beams. Drywall and drop-ceiling tile do not provide sufficient load-bearing capacity and will fail under the camera and mounting hardware weight. Use a wall or soffit bracket instead for drywall installations.
Q: Does the kit include all fasteners?
A: Yes. The 02108-001 includes mounting hardware suitable for typical structural materials (concrete anchors, steel bolts, washers). Review the installation template to confirm your ceiling anchor type matches the hardware provided; some specialty materials (aluminum composite, lightweight concrete) may require site-sourced fasteners.
Q: What is the warranty on the Axis 02108-001?
A: Refer to the Axis warranty documentation or your specialty retailer for specific coverage terms. Mounting kits typically carry a 1–3 year defect warranty; consult the datasheet for exact terms.
Q: How do I know if my ceiling can support this mount?
A: Check the structural weight rating in the installation guide and compare it to your ceiling's design load capacity. Most solid concrete and steel structures exceed the Q38 + pendant arm load; if in doubt, consult a facilities engineer or structural document for your building.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02108-001 pendant kit is a straightforward accessory — no mystery here. It exists because you sometimes need to hang a Q38 below the ceiling plane, and Axis recognized that universal brackets either don't fit the Q38's mounting footprint or introduce unnecessary wobble. This kit eliminates that friction point in high-bay deployments.
Technical Highlights:
- Rigid Arm Assembly: Pendant design minimizes vibration transfer to the camera body, which directly improves video stability and reduces false motion alarms on analytics-enabled Q38 deployments.
- Complete Hardware: Kit arrives with fasteners matched to typical ceiling materials (concrete, steel). You're not hunting down obscure anchor types or making multiple visits to source a missing washer.
- Q38-Specific Fit: The 02108-001 mounting interface is engineered to the Q38's mechanical specification — no adapter plates, no overstressing mounting points on the camera itself.
Deployment Considerations:
- Ceiling Load Rating: Most common oversight: buyers install the 02108-001 into lightweight drop ceilings or prefab composite panels, then the rig sags or fails. Solid structure (concrete, steel) is non-negotiable. Check your building's ceiling design documents before drilling.
- Cable Routing: The pendant arm puts the camera 2–6 feet below the ceiling. Plan your network cable and power runs (PoE) before mounting. Exposed runs look unprofessional and invite accidental damage; use conduit or cable trays for clean integration.
- Viewing Angle: The pendant gives you down-angle coverage of traffic patterns and transaction areas in warehouses and retail. It works well for people-counting and package tracking. It's not ideal for wide, overhead surveillance of a parking lot — in that case, a wall mount or corner bracket spreads the coverage better.
Best use case: high-bay warehouse, logistics facility, or covered loading dock where you need a Q38 positioned to see activity at floor level without mounting it on a pole or structural column. The 02108-001 delivers that positioning cleanly, with zero vibration penalty.
