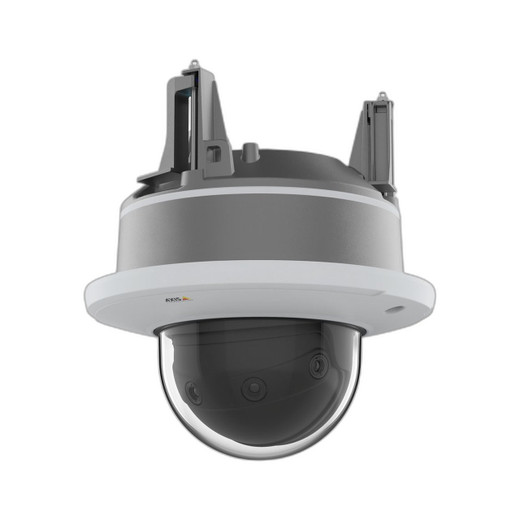

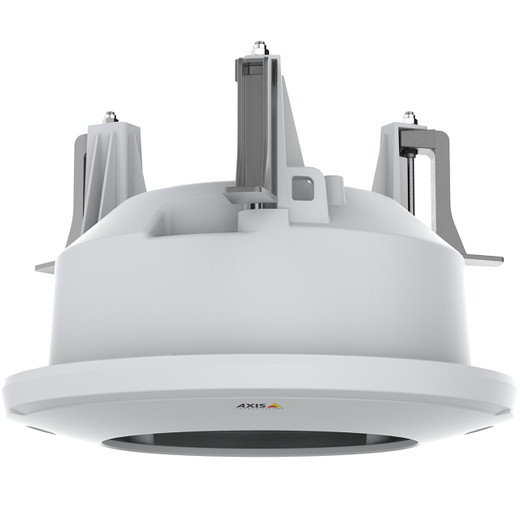

Axis 02136-001 TQ3201-E Recessed Ceiling Mount
The Axis 02136-001 is a professional recessed mount engineered for discreet, flush-ceiling installation of Axis IP cameras in the Q38 Series and select panoramic lines. Unlike surface-mount brackets that project into sight lines, this recessed design pulls the camera body into the ceiling cavity itself — reducing visual clutter without sacrificing optical performance or coverage. The 02136-001 is particularly useful in environments where aesthetic integration matters (corporate offices, retail spaces, hospitality) but surveillance capability must remain robust.
Key Features
- Recessed mounting architecture: Camera sits flush within the ceiling void, minimizing the visual footprint compared to pendant or surface mounts. This matters in design-sensitive spaces where a dangling bracket would trigger occupant concern or create unwanted focal points.
- Compatibility with Axis Q38 Series: Verified support for Q38-series dome cameras ensures secure mechanical coupling and alignment. The mount is engineered to support the weight and vibration tolerance of these specific models without drift or optical misalignment over time.
- Panoramic camera support: Axis P3807-PVE, P3818-PVE, P3819-PVE (and Q3615-VE, Q3617-VE, P3619-VE variants) mount directly to this bracket. Panoramic sensors demand precise leveling to avoid keystoning and coverage gaps — the recessed geometry provides rigid support to maintain that alignment through thermal cycling and building sway.
- Indoor and outdoor deployment: The mount itself is rated for both environments, which means installation in covered outdoor areas (overhang, soffit, carport) or fully internal ceiling plenums. Verify that your selected camera (Q38 or panoramic variant) carries the IP/IK rating required for your specific exposure before final ordering.
- Durable construction: Aluminum or steel construction (specific material per Axis datasheet) provides corrosion resistance in moderate outdoor conditions and thermal stability indoors. This prevents the bracket from warping under load or temperature swings, which would degrade camera aim over months of operation.
- Optimal line-of-sight geometry for panoramic and dome optics: The recessed design positions the camera lens at the plane of the ceiling, eliminating the shadow cast by a traditional pendant bracket and maximizing the 360° or 200°+ panoramic field of view without obstruction.
Integration & Compatibility
Before ordering the 02136-001 (often searched as 02136 001), verify that your camera model appears in the compatibility list: Axis Q38 Series, Axis P3807-PVE, P3818-PVE, P3819-PVE, Q3615-VE, Q3617-VE, and P3619-VE. Mixing mounting brackets across camera families can result in mechanical fit issues, optical misalignment, or inadequate load support. If your target camera is not listed, do not force the mount — contact the manufacturer or consult an Axis catalog for the correct bracket.
Installation typically requires ceiling void access of 4–6 inches (verify exact depth in the product datasheet), a stud finder to locate ceiling joists or a structural grid, and basic hand tools (drill, wrench set). In drop-ceiling environments, recessed mounts are straightforward; in solid drywall, ceiling access may be more invasive. Plan accordingly during the site survey phase.
For camera mounting planning, account for the camera's power and signal routing. PoE cables must be run above the ceiling plane through conduit or cable trays to avoid pinch points and to maintain separation from HVAC ducts and electrical runs.
Frequently Asked Questions
Q: What is the maximum camera weight the 02136-001 can support?
A: Specific load rating is not provided in the available documentation. Consult the datasheet or contact the manufacturer directly to confirm maximum mass, especially if you are using a multi-sensor or panoramic model with additional optics or cooling hardware.
Q: Does the 02136-001 work with any Axis dome camera, or only Q38?
A: Compatibility is limited to the Axis Q38 Series and the specific panoramic models listed (P3807-PVE, P3818-PVE, P3819-PVE, Q3615-VE, Q3617-VE, P3619-VE). Attempting to mount a different model may result in mechanical misfit or inadequate support. Verify your camera model against this list before purchase.
Q: Is this mount suitable for outdoor ceilings exposed to direct rain?
A: The mount is rated for indoor and outdoor deployment, but the camera itself must carry sufficient IP rating (typically IP66 or higher) for direct weather exposure. The bracket alone does not provide weatherproofing — that responsibility falls to the camera housing. Confirm your camera's IP rating matches your environmental conditions.
Q: What installation tools and ceiling access are required?
A: Standard hand tools (drill, wrenches) and access to the ceiling void are typically needed. Exact installation depth and fastening requirements are detailed in the full datasheet. Drop-ceiling installations are simpler than solid drywall. Plan for adequate cable routing above the ceiling to avoid crushing or kinking PoE and signal lines.
Q: Can the 02136-001 be used in a suspended (drop) ceiling?
A: Yes, recessed mounts are well-suited to drop-ceiling grids. Verify that the grid can support the camera and bracket weight, and ensure that the void above the tiles is sufficient for the camera body and any cooling/mounting hardware.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02136-001 addresses a specific pain point in medium-to-high-end surveillance deployments: how to mount sophisticated panoramic and dome cameras without the visual and structural burden of a dangling pendant bracket. In retail or corporate settings where tenant acceptance matters, a flush recessed install can make the difference between a camera that blends into the built environment and one that announces itself to every occupant. The 02136-001 is purpose-built for that tradeoff.
Technical Highlights:
- Recessed geometry eliminates bracket shadow: Panoramic cameras operate on the principle of 360° or near-360° coverage; any obstruction from a traditional pendant bracket cuts into usable field of view and creates a blind spot. The 02136-001 pulls the camera flush into the ceiling void, preserving the full optical envelope.
- Support for Q38 Series and panoramic variants: The compatibility list (P3807-PVE, P3818-PVE, P3819-PVE, Q3615-VE, Q3617-VE, P3619-VE) reflects engineering validation of mechanical fit and load capacity. Mixing mounts outside this list is a no-go — the camera will either not seat properly or experience vibration-induced misalignment over time.
- Rated for both indoor and outdoor ceiling deployment: This flexibility means a single bracket type can handle lobby ceilings, covered parking structures, and warehouse overhangs. However, the camera's IP rating, not the bracket's material alone, determines true weather resistance. Verify IP66+ on the camera if exposed to direct rain or salt spray.
Deployment Considerations:
- Ceiling void depth is critical: Recessed mounts demand 4–6 inches of clear space above the finished ceiling surface for the camera body and any thermal management hardware. Solid drywall or drop-ceilings with minimal plenum will create installation headaches or require cutting larger access holes than expected. Conduct a physical survey before ordering.
- Cable routing discipline prevents failure: PoE cables running above a recessed mount's ceiling plane can be pinched by HVAC ducts, crushed by facilities staff, or tangled in conduit. Use proper cable trays, label runs clearly, and avoid coiling excess cable near the mount site.
The 02136-001 is a strong fit for retail chains, corporate office fit-outs, and hospitality properties where the camera must deliver panoramic or multi-directional coverage without creating an eyesore. It is not the right choice if your ceiling void is shallow, your camera model is outside the compatibility matrix, or you need a quick temporary deployment. For those scenarios, a standard pendant or wall-mount will be faster and simpler.
