IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Out of stock
i-PRO

SKU: WV-QDC503CN

i-PRO WV-QDC503CN Clear Dome Cover

Clear dome cover for i-PRO cameras with UV-resistant protection
- High-clarity acrylic design maintains image quality with minimal light loss
- UV-resistant polymer construction shields against outdoor sun exposure and debris
- Compatible with i-PRO dome camera series for indoor and outdoor surveillance
Special Order · Ships in 2-3 weeks

$340.99

Add to Cart
The item has been added
Compare

Out of stock
i-PRO

SKU: WV-QEM100-W

i-PRO WV-QEM100-W Embedded Ceiling Mount Bracket

Flush ceiling mount bracket for i-PRO dome cameras with night vision
- Embedded design installs flush into ceiling cavity for discrete placement
- Compatible with i-PRO dome camera systems and built-in IR night vision
- White finish with HTTPS encryption support for secure indoor installations
Special Order · Ships in 2-3 weeks

$80.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
i-PRO

SKU: WV-QJB501-W

i-PRO WV-QJB501-W White Base Bracket Ceiling and Wall Mount

Universal white bracket for ceiling and wall i-PRO camera mounting
- Dual-orientation design handles both horizontal ceiling and vertical wall
- White finish blends into drop-tile ceilings and neutral office environments
- Works across i-PRO dome, turret, and compact camera form factors
In stock · Ships same business day

$80.99

Add to Cart
The item has been added
Compare

Out of stock
i-PRO

SKU: WV-QJB502A-B

i-PRO WV-QJB502A-B Ceiling Surface Mount Bracket

Ceiling surface mount bracket for i-PRO indoor camera systems
- Black metal construction with secure fastening for stable camera positioning
- Direct ceiling surface mounting compatible with i-PRO surveillance cameras
- Indoor-rated design built for commercial and enterprise security installations
Special Order · Ships in 2-3 weeks

$76.99

Add to Cart
The item has been added
Compare

Out of stock
i-PRO

SKU: WV-QJB505-W

i-PRO WV-QJB505-W Base Bracket Mount

White base bracket mount for fixed i-PRO camera installations
- Stable base bracket design for secure indoor and outdoor deployment
- IP67-rated and IK10-impact resistant for harsh environment durability
- Compatible with i-PRO surveillance camera systems across all models
Special Order · Ships in 2-3 weeks

$110.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
i-PRO

SKU: WV-QSR506F1-W

i-PRO WV-QSR506F1-W ANSI Female Mount Bracket

White ANSI female mount bracket for ceiling/wall commercial surveillance
- ANSI female mount accepts standard i-PRO camera connectors
- Ceiling or wall installation in finished commercial environments
- White powder-coat finish blends with standard building surfaces
In stock · Ships same business day

$85.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
i-PRO

SKU: WV-QWL500-W

i-PRO WV-QWL500-W White Wall Mounting Bracket for Dome Cameras

White wall bracket for i-PRO dome cameras in indoor commercial spaces
- Wall-mount design positions fixed dome cameras at fixed height for corridor and entrance coverage
- White finish blends into office and retail environments without visual intrusion
- Wired Ethernet compatible with standard i-PRO IP camera deployments
In stock · Ships same business day

$187.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 01802-001

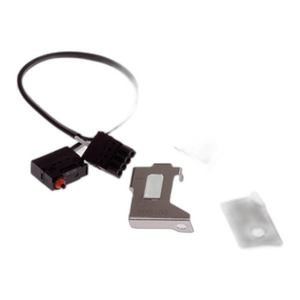

Axis 01802-001 Dome Intrusion Switch

Dome intrusion switch for Axis cameras with IP66 weatherproofing
- Detects physical tampering or unauthorized dome access via normally-open dry contact
- IP66 rating handles rain, spray, and dust in outdoor or wet-environment mounts
- Direct integration with Axis dome cameras—no modifications or adapters required
In stock · Ships same business day

$22.67 $21.99 Save $0.68

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 5502-731

Axis 5502-731 Outdoor 5M RJ45 Cable

Weather-sealed outdoor 5M Ethernet cable for PTZ and panoramic cameras
- IP66-rated connector blocks rain, snow, and dust on network end
- CAT6 core supports gigabit rates for 5MP+ camera feeds without packet loss
- 5 meters (16 feet) bridges rooftop and mid-range outdoor installations
In stock · Ships same business day

$103.08 $99.99 Save $3.09

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 5503-771

Axis 5503-771 Indoor Network Cable Coupler

Passive inline coupler for extending Axis network cables indoors
- Tool-free connection joins two cable segments without power injector
- Maintains full PoE passthrough (802.3af–802.3bt) across the coupler
- Compact form factor fits cable trays and wall cavities seamlessly
In stock · Ships same business day

$13.39 $12.99 Save $0.40

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 5504-641

Axis 5504-641 Ceiling Mount for Dome Cameras

75 cm pendant mount for P55 and Q60 dome cameras
- 75 cm drop length positions cameras at optimal sightlines without custom fabrication
- Chromated and powder-coated aluminum resists corrosion in humid commercial environments
- Rear routing or 3/4-inch conduit hole supports concealed or open cable runs
In stock · Ships same business day

$151.54 $146.99 Save $4.55

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 5800-511

Axis 5800-511 DIN Rail Clip A 5-Pack

Steel DIN rail clips for Axis cabinets, midspans, and converters
- Five steel clips per pack mount to standard 35mm DIN rails
- Black finish resists corrosion in cabinet and rack environments
- Compatible with Axis T98A, T8120/T8133, and T8604/T8605 devices
In stock · Ships same business day

$22.67 $21.99 Save $0.68

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 5801-601

Axis 5801-601 Ceiling Bracket for PTZ and Dome Cameras

Aluminum ceiling bracket for Axis PTZ and dome cameras indoors/outdoors
- Aluminum construction resists corrosion in outdoor and salt-air environments
- 3/4" side-mounted conduit passage organizes cable runs without drooping
- Mounts all Axis PTZ models and AXSI Q37 Series dome cameras
In stock · Ships same business day

$69.06 $66.99 Save $2.07

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 0820-001

Axis A9188 Network I/O Relay Module - 0820-001

8-input, 8-relay network module for access control and alarm automation
- 8 form C relay outputs control locks, lights, and external devices via network
- Supervised inputs with fault detection and tampering alerts for system integrity
- PoE+, 12V DC, or 24V DC power options with VAPIX API for third-party integration
Special Order · Ships in 2-3 weeks

$642.99

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 5801-141

Axis A9801 Security Relay Box - 5801-141

Tamper-detecting relay box for Axis door stations and electronic locks
- Detects unauthorized access attempts to wiring and connections
- Mounts on secure side of door to protect lock control signals
- Compatible with Axis network video door station ecosystems
Special Order · Ships in 2-3 weeks

$151.54 $146.99 Save $4.55

Add to Cart
The item has been added
Compare

Out of stock
Axis

SKU: 5503-761

Axis Cable Gland A M20 5 pcs - 5503-761

M20 cable glands for AXIS T98A-VE cabinets, 5-pack
- M20 thread size fits standard cabinet entry points securely
- Pack of 5 glands routes network, power, and coaxial cables
- White housing with durable construction seals cables against environment
Special Order · Ships in 2-3 weeks

$11.33 $10.99 Save $0.34

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

i-PRO WV-QDC503CN Clear Dome Cover

i-PRO WV-QEM100-W Embedded Ceiling Mount Bracket

i-PRO WV-QJB501-W White Base Bracket Ceiling and Wall Mount

i-PRO WV-QJB502A-B Ceiling Surface Mount Bracket

i-PRO WV-QJB505-W Base Bracket Mount

i-PRO WV-QSR506F1-W ANSI Female Mount Bracket

i-PRO WV-QWL500-W White Wall Mounting Bracket for Dome Cameras

Axis 01802-001 Dome Intrusion Switch

Axis 5502-731 Outdoor 5M RJ45 Cable

Axis 5503-771 Indoor Network Cable Coupler

Axis 5504-641 Ceiling Mount for Dome Cameras

Axis 5800-511 DIN Rail Clip A 5-Pack

Axis 5801-601 Ceiling Bracket for PTZ and Dome Cameras

Axis A9188 Network I/O Relay Module - 0820-001

Axis A9801 Security Relay Box - 5801-141

Axis Cable Gland A M20 5 pcs - 5503-761

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
