IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Out of stock
Hikvision

SKU: PC160

Hikvision PC160 Pendant Cap for Dome Camera

Aluminum pendant cap for DS-2CD43xxFWD-IZHSx dome cameras
- Waterproof aluminum alloy construction rated for indoor/outdoor ceiling mount
- Direct compatibility with DS-2CD43xxFWD-IZHSx camera series for secure fit
- White finish mounts flush to ceiling for clean surveillance installations
Special Order · Ships in 2-3 weeks

$48.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: PC165

Hikvision PC165 Pendant Cap for Dome Camera, White

Aluminum pendant cap for Hikvision DS-2CD43xxFWD-IZHSx dome cameras
- Aluminum alloy construction rated for indoor and outdoor ceiling mounting
- White powder-coated finish integrates cleanly with standard ceiling installations
- Includes mounting hardware for quick installation on compatible dome cameras
Special Order · Ships in 2-3 weeks

$52.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: PMP

Hikvision PMP Pole Mount Adapter PTZ

Aluminum pole adapter for Hikvision PTZ domes, 67–127mm poles
- 66 lbs load capacity keeps heavy PTZ heads stable during pan-tilt moves
- Aluminum alloy with spray coating resists rust and salt-air corrosion
- Fits standard structural poles and integrates with WMP wall brackets
In stock · Ships same business day

$52.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: PMP-JB

Hikvision PMP-JB Horizontal Pole Mounting Bracket

Stainless steel horizontal pole bracket for Hikvision Speed Dome cameras
- Supports up to 22 lbs on poles 3.94"–7.87" in circumference
- Stainless steel construction resists corrosion in outdoor and salt-air environments
- Horizontal orientation maximizes pan/tilt range for perimeter and traffic monitoring
In stock · Ships same business day

$78.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: PMP-JB-G

Hikvision PMP-JB-G Horizontal Pole Mounting Bracket

Stainless steel horizontal pole bracket for Speed Dome cameras, 3.94–7.87" poles
- Stainless steel resists rust and corrosion in coastal and outdoor environments
- Supports up to 22 lbs; fits standard utility poles without adapters
- Rated for indoor and outdoor use across warehouses, perimeter, and utility sites
In stock · Ships same business day

$387.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: PMP-V

Hikvision PMP-V Horizontal Pole Mounting Bracket

Aluminum pole mount for Hikvision Speed Dome cameras, 2.6"–5" poles
- Supports up to 44 lbs for Speed Dome cameras with accessories
- Aluminum alloy with spray coating for indoor and outdoor use
- Adjustable design fits horizontal poles from 2.6" to 5" circumference
Special Order · Ships in 2-3 weeks

$44.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: PMPL

Hikvision PMPL PTZ Pole Mount Adapter

Pole clamp adapter for Hikvision PTZ cameras, 3.94–7.87" fit
- Aluminum alloy & steel construction rated for indoor & outdoor use
- Supports up to 22 lbs load with adjustable pole circumference range
- Includes safety rope to prevent equipment drops during installation
In stock · Ships same business day

$54.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: RCM-1

Hikvision RCM-1 In-Ceiling Mount Bracket

In-ceiling bracket for 12+ Hikvision dome and turret cameras
- Aluminum alloy construction with corrosion-resistant coating for indoor/outdoor use
- Concealed wiring design keeps cables organized within ceiling installations
- Compatible with ECI-D64Z2, ECI-D62Z2, and DS-2CD series models
Special Order · Ships in 2-3 weeks

$52.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: RCM-1B

Hikvision RCM-1B In-Ceiling Mount Bracket, Black

In-ceiling mount bracket for Hikvision dome cameras, aluminum alloy
- Aluminum alloy with protective coating resists corrosion indoors and out
- Compatible with 13+ Hikvision dome models including ECI-D64Z2 and DS-2CD series
- Ceiling must support 3× combined bracket and camera weight for safe mounting
Special Order · Ships in 2-3 weeks

$44.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: RCM-2

Hikvision RCM-2 In-Ceiling Mounting Bracket

Flush in-ceiling mount for Hikvision DS-2CE56 dome cameras
- Aluminum alloy construction with durable surface coating in white
- 3x safety load capacity rated for secure flat ceiling installation
- Compatible with five Hikvision dome camera models, hardware included
Special Order · Ships in 2-3 weeks

$26.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: RCM-2B

Hikvision RCM-2B In-Ceiling Mounting Bracket

Flush in-ceiling mount for Hikvision dome cameras, indoor/outdoor
- Aluminum alloy construction with durable surface coating for durability
- Compatible with DS-2CE56C5T, DS-2CE56D1T, and DS-2CE56D5T series
- Requires ceiling load capacity 3x combined bracket and camera weight
Special Order · Ships in 2-3 weeks

$22.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: RCM-3

Hikvision RCM-3 In-Ceiling Mount Bracket

In-ceiling flush mount for Hikvision dome cameras with weatherproof seal
- Enhanced plastic construction rated for indoor and outdoor environments
- Rubber seal protects against moisture and environmental elements
- Discreet white bracket designed to blend with ceiling architecture
Special Order · Ships in 2-3 weeks

$26.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: RCM-4

Hikvision RCM-4 In-Ceiling Mounting Bracket

In-ceiling bracket for DS-2DE3304W-DE PTZ camera with magnetic alignment
- Steel and plastic construction mounts flush in ceiling for discreet surveillance
- Magnetic design simplifies installation and positioning during setup
- White finish blends with standard ceiling infrastructure in commercial spaces
Special Order · Ships in 2-3 weeks

$48.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: RCM-5

Hikvision RCM-5 In-Ceiling Mounting Bracket

In-ceiling mount for DS-2CD27x5 cameras, white steel construction
- Fits DS-2CD27x5 series cameras with 6.6 lb load capacity
- Steel and plastic construction with surface spray treatment resists corrosion
- Discreet ceiling installation keeps surveillance equipment hidden from view
Special Order · Ships in 2-3 weeks

$96.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: RCM-DM44

Hikvision RCM-DM44 In-Ceiling Mount for DS-2CD27x3G1

In-ceiling magnetic mount for DS-2CD27x3G1 series cameras
- Magnetic design allows tool-free camera attachment and repositioning
- Steel and plastic construction rated for 9.92 lb load capacity
- Rubber gasket seals protect against moisture in indoor installations
Special Order · Ships in 2-3 weeks

$52.99

Add to Cart
The item has been added
Compare

Out of stock
Hikvision

SKU: SRSB

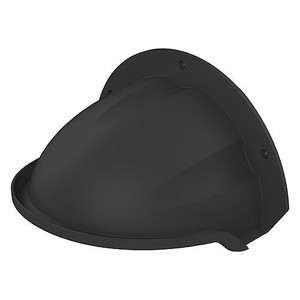

Hikvision SRSB Anticorrosive Wall Mounting Bracket

Composite fiber wall bracket with integrated sunshade for coastal/corrosive environments
- Anticorrosive composite fiber resists rust, salt air, and moisture degradation
- Integrated sunshade reduces glare and overexposure for clearer outdoor images
- Wall-mount design requires flat surface rated for 3x combined camera weight
Special Order · Ships in 2-3 weeks

$30.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Hikvision PC160 Pendant Cap for Dome Camera

Hikvision PC165 Pendant Cap for Dome Camera, White

Hikvision PMP Pole Mount Adapter PTZ

Hikvision PMP-JB Horizontal Pole Mounting Bracket

Hikvision PMP-JB-G Horizontal Pole Mounting Bracket

Hikvision PMP-V Horizontal Pole Mounting Bracket

Hikvision PMPL PTZ Pole Mount Adapter

Hikvision RCM-1 In-Ceiling Mount Bracket

Hikvision RCM-1B In-Ceiling Mount Bracket, Black

Hikvision RCM-2 In-Ceiling Mounting Bracket

Hikvision RCM-2B In-Ceiling Mounting Bracket

Hikvision RCM-3 In-Ceiling Mount Bracket

Hikvision RCM-4 In-Ceiling Mounting Bracket

Hikvision RCM-5 In-Ceiling Mounting Bracket

Hikvision RCM-DM44 In-Ceiling Mount for DS-2CD27x3G1

Hikvision SRSB Anticorrosive Wall Mounting Bracket

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading

Certified Experts

Manufacturer Authorized

Expert Access

Since 2014

Brands

Categories

IP Cameras

Ordering

Legal

Company

Sales & Expert Advice

Customer Service
