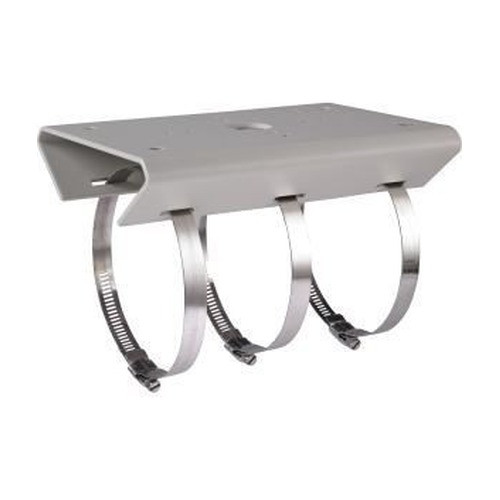

Hikvision PMP Pole Mount Adapter PTZ
The Hikvision PMP is a pole-mounted adapter purpose-built to secure PTZ dome cameras on round poles in outdoor and mixed-use environments. Aluminum alloy construction with protective spray coating provides genuine corrosion resistance — a significant factor on exposed installations where salt air, UV, or humidity can degrade cheaper materials over 3–5 years. The adapter bridges your camera to standard poles with a straightforward, durable interface.
Key Features
- Aluminum Alloy Body with Spray Coating: Resists rust and weathering in outdoor conditions. You avoid the cost and downtime of replacing corroded mounting hardware halfway through a system's lifespan.
- 67–127mm Pole Circumference Range: Accommodates most standard metal poles — power distribution poles, light standards, and structural uprights. Wider compatibility reduces site prep work and gives you flexibility when selecting mounting locations.
- 66 lbs Maximum Load Capacity: Handles heavy PTZ dome models without flex or wobble. This means your pan-tilt-zoom head remains stable during movement, preserving image sharpness and preventing mechanical drift over time.
- WMP-S and WMP-L Wall Bracket Integration: If you need to switch mounting from pole to wall later, the adapter integrates with Hikvision's companion wall mount brackets. Simplifies future system reconfiguration without replacing the camera itself.
- White Powder-Coat Finish: Clean, unobtrusive appearance suits retail and commercial facades. The aesthetic doesn't dominate the sightline while maintaining industrial durability.
- Direct PTZ Camera Compatibility: Purpose-engineered for Hikvision PTZ dome cameras, ensuring alignment and balanced weight distribution without adapter shimming or modification.
Installation & Compatibility
The PMP fastens to round poles via a clamping mechanism that distributes pressure evenly across the pole surface—no drilling required on the pole itself. Measure pole circumference before ordering to confirm fit within the 67–127mm range. The adapter's design allows vertical orientation adjustment, giving installers flexibility to align the PTZ camera's field of view without forcing the pole mount into unnatural angles. Compatible with standard Hikvision PTZ camera models and pairs directly with WMP-S (smaller payload) or WMP-L (larger payload) wall mounts if future migration becomes necessary.
Deployment Considerations
Choose the PMP when pole-mounted coverage is the primary option—parking lots, perimeter boundaries, traffic corridors, and outdoor retail environments where a pole is already in place. The 66 lb capacity covers most standard PTZ domes; verify your specific camera's weight before ordering. For installations requiring dynamic power or networking to the camera, run cable through existing conduit or along the pole itself; the adapter does not include cable management built-in. In high-wind zones (coastal or elevated sites), confirm pole diameter stability with your structural engineer—the adapter's load rating is vertical; lateral wind loading is the responsibility of the pole itself.
The aluminum alloy coating provides excellent UV and salt-spray resistance, but does not guarantee indefinite zero-maintenance performance. Inspect the clamp and coating annually in harsh environments, and consider resealing or recoating if the finish shows visible wear. The white powder coat can fade slightly under years of direct sunlight; this does not affect function but may be visible on light-colored poles.
Frequently Asked Questions
Q: What pole diameters does the PMP support?
A: The PMP clamps poles with circumferences between 67mm and 127mm (approximately 21–40mm diameter). Measure your pole circumference—distance around the pole—not the diameter before ordering.
Q: Can the PMP hold a 60 lb PTZ camera?
A: Yes. The PMP supports up to 66 lbs, so a 60 lb camera is within spec. Confirm the camera's exact weight in the manufacturer's datasheet.
Q: Does the PMP work with non-Hikvision PTZ cameras?
A: The PMP is engineered specifically for Hikvision PTZ dome cameras. Use with third-party cameras may require adapter plates or custom mounting hardware and is not recommended without verification of interface compatibility.
Q: Can I mount the PMP to a wall or ceiling instead of a pole?
A: No. The PMP is a pole clamp. For wall or ceiling mounting, use the Hikvision WMP-S or WMP-L wall brackets instead.
Q: Does the PMP include installation hardware?
A: The adapter includes the clamp and mounting interface. You supply the bolts and fasteners that connect your camera to the adapter's top plate—check your camera's mounting documentation for the correct hardware specifications.
Q: What maintenance is required?
A: In harsh outdoor environments (coastal, high-UV, or industrial), inspect the clamp annually for corrosion or coating wear. The aluminum alloy resists rust but does not guarantee zero maintenance indefinitely. Clean dirt and debris from clamp surfaces to prevent moisture trapping.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Hikvision PMP is a straightforward, well-engineered accessory that solves a real problem: getting a heavy PTZ dome camera securely mounted on a pole without structural modification or custom fabrication. The 66 lb capacity and 67–127mm circumference range cover the vast majority of outdoor pole installations I see in retail, industrial, and perimeter surveillance deployments. The aluminum alloy body with spray coating is the right material choice for durability—it costs more upfront than painted steel, but pays dividends over 3–5 years in coastal or high-humidity zones where rust corrodes cheaper alternatives.
Technical Highlights:
- 66 lb Load Capacity: Handles heavy PTZ domes without sag or vibration during pan-tilt operation. Image stability during movement is directly tied to mechanical rigidity—cheap mounts flex, this one doesn't.
- Aluminum Alloy with Protective Spray Coating: Resists corrosion in outdoor environments better than galvanized steel. Inspection burden is minimal—annual check for coating wear beats monthly rust monitoring on painted steel.
- Wide Pole Compatibility (67–127mm Circumference): Eliminates the need for site-specific adapter plates or oversized clamps. Simplifies ordering and installation—measure once, install once.
Deployment Considerations:
- Measure pole circumference, not diameter, before ordering. A 40mm diameter pole = ~126mm circumference—close to the upper limit. If you're at the edge of the range, verify clearance with the manufacturer.
- The PMP does not include cable conduit or management. Run camera power and network through existing pole conduit or secured along the pole surface—the adapter itself is a mount, not a cable tray.
- Wind loading is on the pole, not the adapter. In high-wind zones (coastal or elevated), confirm your pole's lateral stability with a structural engineer. The PMP's 66 lb rating is vertical; sideways flex is the pole's issue.
The PMP is the right choice for parking lot perimeter coverage, traffic monitoring poles, and retail exterior installations where the camera must sit 15–30 feet up and a pole is already in place. It's not fancy, but it's durable and compatible with the Hikvision PTZ line. Spec it, mount it, move on.
