IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Add to Cart The item has been added
Hanwha

SKU: SHP-1520FW

Hanwha SHP-1520FW In-Ceiling Flush Mount

Flush-mount dome housing for QNP-6250/6320 cameras in suspended ceilings
- Ø212.1 mm recessed design fits standard 8-inch ceiling cutouts without custom framing
- Polycarbonate white construction resists humidity and blends into office/retail environments
- 164.5 mm depth accommodates typical plenum space; 450g weight for single-person installation
In stock · Ships same business day

$119.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHP-1563FPW

Hanwha SHP-1563FPW Plenum Flush Mount for Dome Cameras

Flush plenum mount for Hanwha dome cameras in drop ceilings
- Aluminum & polycarbonate construction rated IP66 & IK10 for durability
- Compatible with 16 Hanwha models including XNP & QNP series cameras
- Low-profile design sits flush with ceiling grid, minimizes visual clutter
In stock · Ships same business day

$159.00 $106.99 Save $52.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHP-1563FW

Hanwha SHP-1563FW In-Ceiling Flush Mount for PTZ Cameras

In-ceiling flush mount for Hanwha PTZ cameras with low-profile fit
- Recessed aluminum design minimizes ceiling protrusion in drop-tile installations
- White finish blends with standard commercial ceilings and modern office interiors
- Compact 268mm diameter footprint fits standard ceiling openings without modification
In stock · Ships same business day

$112.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SHP-1680FW

Hanwha SHP-1680FW Ceiling Flush Mount

Ceiling flush mount for discreet Hanwha camera integration in drop-tile
- Polycarbonate housing sits nearly flush with ceiling to blend with white drop-tile
- Compatible with five Hanwha models: XNP-6120H, XNV-6085, XNV-6120, XNV-6120R, XND-6085V
- Lightweight, corrosion-resistant design holds camera position without vibration or drift
In stock · Ships same business day

$79.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SHP-3701H

Hanwha SHP-3701H PTZ Pendant Housing

IK10 pendant housing for Hanwha PTZ cameras in extreme climates
- IK10 vandal resistance withstands deliberate impact and tampering
- IP66 weatherproofing blocks dust and high-pressure jet spray
- Operates -58°F to +122°F for arctic through tropical deployment
Special Order · Ships in 2-3 weeks

$549.00 $368.99 Save $180.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SLA-2M2402D

Hanwha SLA-2M2402D 2MP Lens Module for PNM-7002VD

Wide 135° lens module with F2.0 aperture for dual-sensor cameras
- 2MP 1/2.8" CMOS with 2.4mm fixed focal length, F2.0 aperture
- 0.055 lux low-light sensitivity maintains color in dim retail/lobby spaces
- Pan ±176° / tilt 0–30° / rotate ±90° with compact 35.5mm form factor
In stock · Ships same business day

$85.00 $63.99 Save $21.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SLA-2M2802D

Hanwha SLA-2M2802D Lens Module for PNM-7002VD

2MP modular lens, 2.8mm F2.0, 107° wide view for single-camera coverage
- 2MP 1/2.8" CMOS with 2.8mm fixed lens eliminates autofocus drift
- 107.4° horizontal field of view covers corridor/aisle depth wall-to-wall
- 0.055 Lux color performance (F2.0, 1/30s) in retail and office lighting
In stock · Ships same business day

$85.00 $63.99 Save $21.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SLA-2M3600Q

Hanwha SLA-2M3600Q 2MP Lens Module for PNM-9000VQ

2MP lens module for PNM-9000VQ with four focal lengths
- 1/2.8" CMOS sensor with auto day/night IR for color and B&W modes
- Four fixed focal lengths (2.4mm–6.0mm) for flexible coverage needs
- 94.8° horizontal FOV at 3.6mm standard for general-area monitoring
In stock · Ships same business day

$85.00 $63.99 Save $21.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SLA-2M3602D

Hanwha SLA-2M3602D Lens Module for PNM-7002VD

2MP lens module, 3.6mm fixed, F2.0 for compact dual-sensor rigs
- 2MP 1/2.8" CMOS with F2.0 aperture captures color detail at 0.055 lux
- 94.8° horizontal FOV covers corridors and loading docks in single frame
- Pan ±176°, tilt 0–64°, rotate ±90° in 30g compact form factor
In stock · Ships same business day

$85.00 $63.99 Save $21.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SLA-2M6002D

Hanwha SLA-2M6002D 2MP Lens Module

2MP lens module with 6mm fixed focal, F2.0 aperture, mechanical pan/tilt
- 1/2.8" 2MP CMOS sensor captures sharp detail across medium-range surveillance zones
- F2.0 aperture with 0.055 Lux low-light sensitivity for 24/7 color monitoring
- Full mechanical adjustment: ±176° pan, 0–74° tilt, ±90° rotate for flexible aiming
Special Order · Ships in 2-3 weeks

$85.00 $63.99 Save $21.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SLA-5M3700Q

Hanwha SLA-5M3700Q 5MP Interchangeable Lens Module

5MP interchangeable lens module with 3 focal lengths for PNM-9000VQ
- Three fixed focal lengths (3.7mm, 4.6mm, 7.0mm) for wide to telephoto coverage
- 1/1.8" 5MP CMOS sensor captures 2592×1944 resolution with IR-cut filter removal
- Swap optics in minutes to match different surveillance zones without changing camera body
In stock · Ships same business day

$250.00 $187.99 Save $62.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SLA-5M4600Q

Hanwha SLA-5M4600Q 5MP Lens Module

5MP interchangeable lens module for PNM-9000VQ platform
- Three fixed focal lengths (3.7mm, 4.6mm, 7.0mm) for flexible coverage
- 1/1.8" CMOS sensor with automatic day/night color-to-mono switching
- 77.9° horizontal FOV at 4.6mm for facial detail and context capture
In stock · Ships same business day

$250.00 $187.99 Save $62.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SLA-5M7000D

Hanwha SLA-5M7000D 5MP Lens Module

5MP lens module for PNM-9000VD with selectable focal lengths
- 5MP 1/1.8" CMOS sensor captures fine detail across day/night conditions
- Three focal length options (3.7mm, 4.6mm, 7.0mm) for flexible deployment
- 50.7° horizontal FOV at 7.0mm for hallway and perimeter monitoring
Special Order · Ships in 2-3 weeks

$250.00 $187.99 Save $62.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SLA-5M7000Q

Hanwha SLA-5M7000Q 5MP Lens Module

5MP lens module for PNM-9000VQ with 3 focal lengths and day/night IR
- 1/1.8" 5MP CMOS sensor with IR-cut filter for color and monochrome modes
- Three fixed focal lengths (3.7mm, 4.6mm, 7.0mm) to match coverage needs
- 50.7° horizontal field of view at 7.0mm for mid-range to long-distance monitoring
Special Order · Ships in 2-3 weeks

$250.00 $187.99 Save $62.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SLA-C-E24

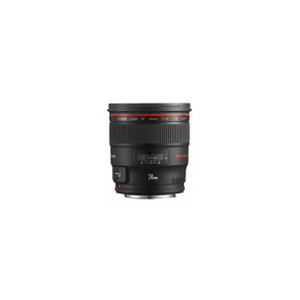

Hanwha SLA-C-E24 Canon EF 24mm f/1.4L II USM Lens

24mm f/1.4 Canon EF lens for Hanwha TNB-9000 wide-angle surveillance
- f/1.4 maximum aperture captures detail in low-light conditions without noise
- 24mm focal length with wide horizontal field of view for expansive monitoring
- Auto-iris adjusts exposure automatically across varying lighting conditions
Special Order · Ships in 2-3 weeks

$5,025.00 $3,763.99 Save $1,261.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SLA-C-E2470

Hanwha SLA-C-E2470 Canon EF 24-70mm f/2.8L II Lens

Canon EF 24-70mm f/2.8 zoom lens for TNB-9000 surveillance
- 24-70mm focal range with constant f/2.8 aperture across entire zoom
- Ultra-low dispersion glass and aspherical elements reduce distortion
- Ultrasonic Motor autofocus delivers fast, silent focusing operation
Special Order · Ships in 2-3 weeks

$4,900.00 $3,669.99 Save $1,230.01

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Hanwha SHP-1520FW In-Ceiling Flush Mount

Hanwha SHP-1563FPW Plenum Flush Mount for Dome Cameras

Hanwha SHP-1563FW In-Ceiling Flush Mount for PTZ Cameras

Hanwha SHP-1680FW Ceiling Flush Mount

Hanwha SHP-3701H PTZ Pendant Housing

Hanwha SLA-2M2402D 2MP Lens Module for PNM-7002VD

Hanwha SLA-2M2802D Lens Module for PNM-7002VD

Hanwha SLA-2M3600Q 2MP Lens Module for PNM-9000VQ

Hanwha SLA-2M3602D Lens Module for PNM-7002VD

Hanwha SLA-2M6002D 2MP Lens Module

Hanwha SLA-5M3700Q 5MP Interchangeable Lens Module

Hanwha SLA-5M4600Q 5MP Lens Module

Hanwha SLA-5M7000D 5MP Lens Module

Hanwha SLA-5M7000Q 5MP Lens Module

Hanwha SLA-C-E24 Canon EF 24mm f/1.4L II USM Lens

Hanwha SLA-C-E2470 Canon EF 24-70mm f/2.8L II Lens

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
