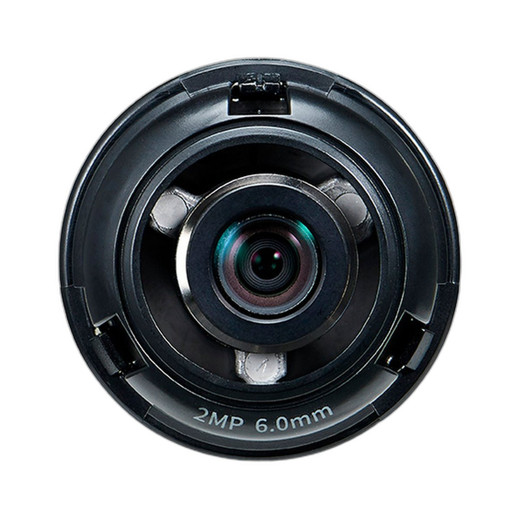

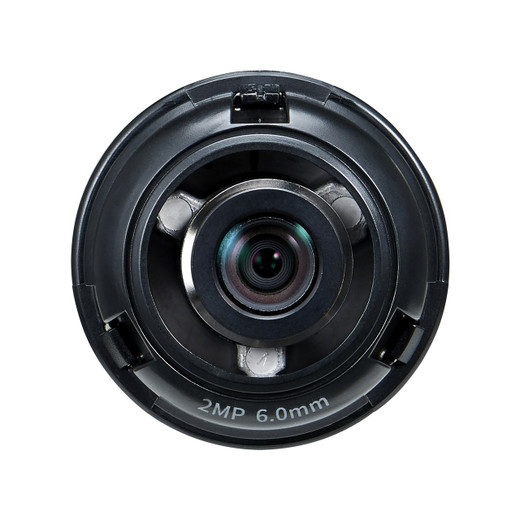

Hanwha SLA-2M6002D 2MP Lens Module

Hanwha SLA-2M6002D 2MP Lens Module

The Hanwha SLA-2M6002D is a precision lens module engineered for the PNM-7002VD dual-sensor IP camera platform. Combining a 1/2.8" 2MP CMOS sensor with a 6.0mm fixed focal lens, this component delivers sharp, detailed imagery across diverse surveillance applications. Built for professional security installations, it ensures reliable performance in demanding monitoring environments requiring consistent image clarity and operational dependability.

Key Features

• 1/2.8" 2MP CMOS imaging sensor for high-resolution capture
• 6.0mm fixed focal lens with F2.0 maximum aperture ratio
• Horizontal field of view: 50.4°, Vertical: 28.8°, Diagonal: 58.1°
• Low-light sensitivity: 0.055 Lux (color at F2.0, 1/30sec)
• Mechanical pan/tilt/rotate capability: -176°~+176° / 0°~74° / -90°~+90°
• Compact form factor: Ø35.5 x 35.9mm, 30g
• Fixed focus design with minimal maintenance requirements
• Black plastic construction for discrete installation

Technical Specifications

The SLA-2M6002D's 1/2.8" sensor paired with its 6.0mm lens delivers a focused, medium-range field of view ideal for targeted surveillance zones. The 50.4° horizontal field of view provides adequate coverage for corridors, hallways, and smaller indoor spaces without excessive wide-angle distortion. The F2.0 aperture supports effective low-light performance, making the module suitable for 24/7 monitoring in variable illumination conditions, including dawn, dusk, and artificially lit environments.

The module's mechanical articulation—with full pan/tilt rotation and independent rotate capability—enables flexible mounting orientations without requiring separate pan-tilt hardware. This integrated adjustability simplifies installation and reduces component count in compact surveillance designs.

Applications

Designed for indoor commercial and institutional security, the SLA-2M6002D excels in environments requiring precise detail capture:

• Corporate office buildings and executive areas
• Retail spaces and point-of-sale zones
• Financial institutions and banking facilities
• Access control entry points and corridors
• Storage areas and inventory zones
• Hospitality and reception spaces

Integration & Compatibility

This lens module is purpose-built for the Hanwha PNM-7002VD platform, ensuring seamless optical and mechanical integration. Its standardized interface simplifies deployment within Hanwha's broader IP camera ecosystem, reducing configuration complexity and support overhead. The fixed focal design eliminates focus drift and calibration issues common with motorized lenses, delivering consistent image quality over extended operational periods.

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

The SLA-2M6002D represents a purpose-built optical solution for fixed-installation surveillance requiring medium-range, high-detail imaging. Its F2.0 aperture and 0.055 Lux sensitivity position it well above entry-level modules, supporting legitimate 24/7 color monitoring in typical indoor lighting without external illumination. The fixed focal design trades zoom flexibility for optical simplicity, stability, and reduced maintenance—a practical trade-off for permanent installations.

The integrated pan/tilt mechanism adds deployment flexibility without significant size or weight penalty. For organizations standardized on Hanwha platforms, this module offers a reliable, low-complexity alternative to external lens systems, with predictable performance and minimal field calibration.
