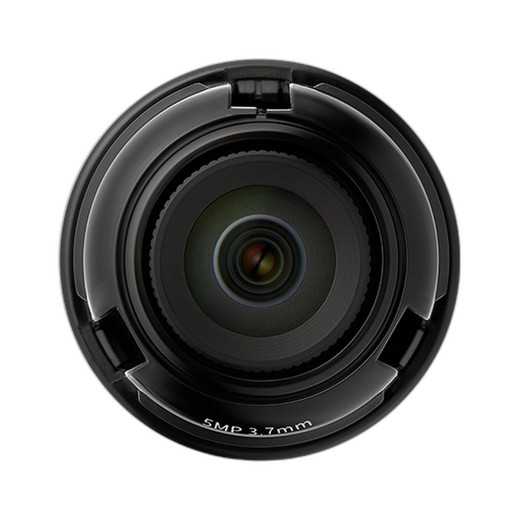

Hanwha SLA-5M7000Q 5MP Lens Module

Hanwha SLA-5M7000Q 5MP Lens Module for PNM-9000VQ

The Hanwha SLA-5M7000Q is a premium 5-megapixel lens module engineered for professional IP surveillance deployments. Designed exclusively for the PNM-9000VQ camera platform, this lens module delivers exceptional image clarity and flexibility across diverse monitoring scenarios, from wide-area coverage to long-range observation.

Key Features

• 5MP CMOS Sensor: 1/1.8" 5MP resolution captures fine details in both day and night conditions
• Selectable Fixed Focal Lengths: Choose from 3.7mm, 4.6mm, or 7.0mm to match your surveillance requirements
• Wide Field of View: 50.7° horizontal and 37.8° vertical (7.0mm option) for comprehensive scene coverage
• Day/Night Capability: Integrated IR-cut filter for seamless color-to-monochrome switching in low-light environments
• Seamless Integration: Purpose-built for PNM-9000VQ compatibility—no additional adapters or modifications required

Technical Highlights

The 1/1.8" CMOS sensor provides high sensitivity and low noise across a wide dynamic range, ensuring usable footage in challenging lighting conditions. The three focal length options allow installers to optimize coverage without requiring multiple camera units. The 7.0mm option (SKU standard) is ideal for mid-range to long-distance monitoring, while the shorter 3.7mm and 4.6mm options support wider views for lobby, entrance, or perimeter applications.

Applications

This lens module is suited for enterprise security deployments including retail facilities, office complexes, transportation hubs, and critical infrastructure monitoring. The flexible focal length selection makes it particularly valuable for integrators managing multi-camera sites with varying coverage needs. Installation in existing PNM-9000VQ systems is straightforward, enabling rapid upgrades or system expansion.

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

The SLA-5M7000Q represents a modular approach to IP surveillance, allowing end-users to standardize on a single camera body while adapting optics to specific site geometry. The selectable focal lengths eliminate guesswork during design—measure the scene, select the appropriate lens, and deploy. The 5MP resolution strikes a practical balance between detail capture and bandwidth efficiency, making this module suitable for systems with moderate storage and network constraints.

The integrated day/night functionality and robust sensor design position this lens module as a reliable choice for 24/7 surveillance operations requiring consistent image quality across lighting transitions.
