Hanwha SHP-1563FW In-Ceiling Flush Mount for PTZ Cameras

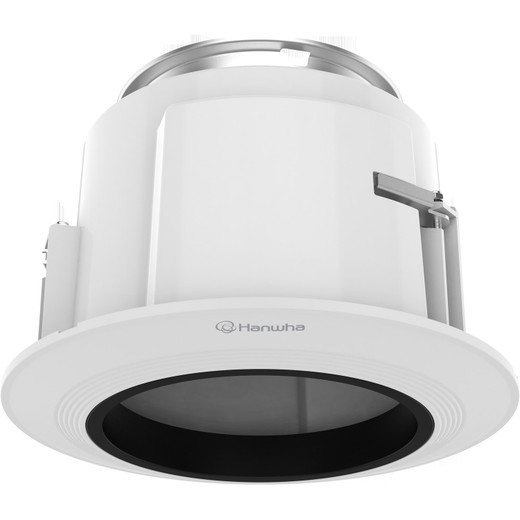

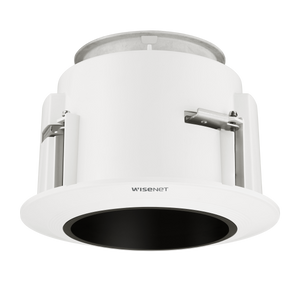

Hanwha SHP-1563FW In-Ceiling Flush Mount

Overview

The SHP-1563FW is a purpose-built in-ceiling flush mount designed to integrate Hanwha PTZ cameras into indoor environments without compromising aesthetics or sightlines. This accessory solves a specific integration problem: mounting a PTZ-Plus camera flush to a drop ceiling while preserving the clean interior appearance required in corporate offices, retail showrooms, and hospitality venues. The low-profile form factor means the mount sits nearly flush with the ceiling plane, eliminating the bulky appearance of exposed pendant housings.

Key Features

• Low-Profile Flush Mount Design: Minimizes ceiling protrusion — critical in facilities where visible surveillance infrastructure conflicts with interior design standards. A recessed mount keeps the camera housing tucked into the ceiling plenum rather than hanging visibly below the tile line.
• Aluminum and Plastic Construction: Durable hybrid material handles repeated installation cycles without flex or vibration. Aluminum provides structural rigidity for PTZ motors; plastic trim rings integrate cleanly with modern drop-ceiling aesthetics.
• White Finish: Matches standard commercial ceiling materials and blends with contemporary office palettes. White eliminates the contrast of black housings that draw attention in neutral interiors.
• Compact Footprint (Φ268 × 190mm / 10.55 × 7.48 inches): Fits standard drop-ceiling tile openings without requiring extensive ceiling modifications. The diameter allows installation in a single tile cutout without compromising structural tile support or requiring custom framing.
• Lightweight (2.65 lbs): Reduces load on ceiling grid and electrical box supports. Drop-ceiling systems typically rate for 2–5 lbs per point load; this mount stays well within safety margins, meaning integrators avoid reinforcement hardware that would delay installation.
• Optimized for PTZ-Plus Cameras: Designed specifically for Hanwha's XNP series PTZ lineup — XNP-9250, XNP-9250R, XNP-8250, XNP-8250R, XNP-6400, and XNP-6400R. Purpose-built compatibility ensures the camera pan-tilt-zoom mechanics operate without binding or vibration artifacts common when PTZ units are mounted on generalist brackets.
• Supports Unobstructed Panoramic Viewing: The flush configuration does not obstruct the camera's pan range. A PTZ mounted in a traditional pendant housing can lose 30–50 degrees of pan movement if the housing blocks lateral motion; flush mounting eliminates this limitation.

Integration and Compatibility

The SHP-1563FW is engineered for Hanwha XNP-series PTZ-Plus cameras only. Verify your specific model (9250, 8250, or 6400 variant) against the compatibility list before ordering — mounting a non-compatible PTZ chassis will result in mechanical interference or misalignment. Installation requires a standard drop-ceiling cutout; no additional electrical modifications are needed if your PTZ camera is already wired and networked. The mount's interface is a mechanical coupling; electrical connections remain independent, routed through ceiling plenums to your PoE switch or recorder.

Integrators deploying PTZ camera systems in spaces where visual discretion matters — upscale retail, executive boardrooms, museum galleries — benefit from the aesthetic advantage here. Standard pendant mounts telegraph surveillance presence; a flush installation suggests environmental monitoring without the security apparatus showing.

Deployment Scenarios

Best suited for interior spaces with 8–12 foot drop ceilings where the camera requires wide pan coverage (lobbies, open-plan offices, retail floors). Spaces with suspended acoustic tile, lay-in grids, or modular ceiling systems are ideal candidates. Avoid installations where structural or fire-code constraints limit ceiling penetrations — coordinate with facilities staff before commitment.

When to Consider Alternatives

If your PTZ model is not listed in the XNP-series compatibility range, this mount will not function reliably. For outdoor or semi-outdoor environments requiring IP-rated weatherproofing, a flush ceiling mount is inappropriate — use a bracketed pendant or wall-mount designed for your climate and IP rating. If your facility requires a wall or corner mount for sightline coverage, explore the Hanwha bracket family for wall-mount or corner options.

Frequently Asked Questions

Q: Is the SHP-1563FW compatible with my XNP-9250R camera?

A: Yes. The SHP-1563FW supports all XNP-9250, XNP-9250R, XNP-8250, XNP-8250R, XNP-6400, and XNP-6400R models. Confirm your exact model number on the camera body or your purchase order before installation.

Q: Can I use this mount outdoors or in wet environments?

A: No. The SHP-1563FW is designed for indoor drop-ceiling installations only. Aluminum and plastic materials are not rated for weather exposure or humidity. For outdoor or semi-outdoor PTZ mounting, consult Hanwha's outdoor bracket lineup.

Q: What ceiling types does the SHP-1563FW work with?

A: Standard suspended (drop-ceiling) grids with 1-1/2 to 2-inch depth support this mount. Drywall, plaster, or solid ceilings require additional backing plates or structural reinforcement — verify with your facilities team before purchase.

Q: How much installation time should I budget for mounting?

A: Once the ceiling opening is cut and the camera is wired and networked, mounting typically takes 15–30 minutes. No special tools are required beyond standard cutout hardware.

Q: Does this mount support the camera's full pan and tilt range?

A: Yes. The flush design does not obstruct pan, tilt, or zoom motion. The camera retains its full mechanical range without binding.

Q: What is the maximum load this mount can support?

A: At 2.65 lbs, the SHP-1563FW and mounted PTZ camera remain well below standard drop-ceiling grid load ratings (typically 2–5 lbs per point). No reinforcement brackets are required for code compliance in typical commercial installations.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SHP-1563FW solves a real integration headache: you need PTZ coverage in a space where a dangling pendant mount looks unprofessional. This is a purpose-built accessory that trades the convenience of a universal bracket for precision fit and clean aesthetics. The 268mm diameter footprint and 190mm depth are engineered specifically for Hanwha's XNP-series PTZ cameras, which means if you're staying within the Hanwha line, compatibility is straightforward — and if you're not, this mount won't work.

Technical Highlights:

• Low-Profile Geometry (Φ268 × 190mm): Sits nearly flush with ceiling tile, eliminating the visual signature of a visible bracket. Standard drop-ceiling systems tolerate this depth without reinforcement — a real advantage on retrofit jobs where structural work is a schedule killer.
• 2.65 lb Weight Specification: Under the typical 2–5 lb per-point load limit for suspended ceiling grids. You avoid conversations with facilities teams about reinforcement plates and code review. This matters on multi-camera deployments where every installation delay adds up.
• Aluminum-Plus-Plastic Hybrid Construction: Aluminum ribbing handles PTZ motor vibration without flex; plastic trim rings integrate with white drop ceilings. This isn't a generalist aluminum mount that looks industrial — it's dressed for the space.

Deployment Considerations:

• Compatibility is absolute: XNP-series cameras only (9250, 8250, 6400 variants). If you're mixing Hanwha PTZ with other brands or older XN-series models, this mount is useless. Verify the full model number before procurement.
• Ceiling Type Matters: This bracket assumes a standard suspended grid. Drywall, plaster, or concrete ceilings require backing plates and structural fastening — add engineering time and cost. Scout the ceiling during the presale walkthrough.
• No Pan Obstruction: Unlike pendant mounts that can block 30–50° of pan range, a flush configuration lets the PTZ operate across its full mechanical envelope. This is a deployment advantage in spaces like retail floors or museum galleries where you need edge-to-edge coverage.

Deploy the SHP-1563FW when aesthetics are non-negotiable and your PTZ camera is confirmed XNP-series. It's a precision accessory, not a universal bracket — the trade-off for clean integration is zero flexibility on model compatibility and ceiling type. For upscale retail, executive spaces, or hospitality where visible security hardware kills the atmosphere, this is the right choice. For industrial warehouses, loading docks, or outdoor applications, look elsewhere.
