IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-317HMWP

Hanwha SBP-317HMWP White Hanging Mount for Panoramic Cameras

White aluminum hanging mount for panoramic cameras with cable storage
- Aluminum construction with RAL9003 white finish resists corrosion indoors/outdoors
- TR20 security screw interface prevents tampering on fixed overhead installations
- Built-in storage cap holds HPoE injectors and fiber converters out of sight
In stock · Ships same business day

$275.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-317HMWS

Hanwha SBP-317HMWS NSF Cap Adapter

NSF-rated cap adapter for Hanwha multi-sensor cameras in food & sanitary environments
- Compatible with PNM-9084RQZ/9085RQZ series cameras via PF 1½ conduit mount
- Aluminum construction with white RAL9003 finish resists moisture and corrosion
- Ceiling and wall mounting for flexible deployment in regulated facilities
Special Order · Ships in 2-3 weeks

$275.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-35PVMW

Hanwha SBP-35PVMW Telescopic Pendant Mount

Telescopic pendant mount for PVM monitors, 3–5 ft range with 360° rotation
- Extends 3 to 5 feet to accommodate varied ceiling heights in surveillance setups
- Full 360° rotation and ±25° tilt for optimal viewing angles without repositioning
- Fits 75×75mm and 100×100mm VESA patterns; aluminum and steel construction
Special Order · Ships in 2-3 weeks

$160.00 $119.99 Save $40.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-390WM2

Hanwha SBP-390WM2 Long Wall Mount Arm, Ivory

417mm aluminum wall arm with integrated cable conduit for extended camera reach
- 417mm (16.4 in) reach positions cameras away from walls without crowding infrastructure
- Aluminum construction resists corrosion in HVAC zones, loading docks, manufacturing floors
- Integrated conduit routes cables through arm; reduces sag and protects wiring
In stock · Ships same business day

$215.00 $161.99 Save $53.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-400WMW

Hanwha SBP-400WMW Outdoor Aluminum Wall & Pole Mount

Dual wall & pole mount, IP66/NEMA 4X, holds 20 kg in coastal environments
- IP66 and NEMA 4X rated; dust and water sealed for harsh outdoor deployments
- 20 kg load capacity supports small-to-medium form-factor surveillance cameras
- Polycarbonate and aluminum construction resists UV, corrosion, and impact damage
In stock · Ships same business day

$317.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-59PVMB

Hanwha SBP-59PVMB Telescopic Pendant Mount

Telescopic pendant mount for PVM monitors, 5–9 ft reach with 360° rotation
- Extends 5 to 9 feet for high-ceiling installations with full 360° rotation
- Tilts −25° down from level to optimize viewing angle and reduce glare
- Dual VESA support (75×75 mm, 100×100 mm) fits multiple monitor sizes
Special Order · Ships in 2-3 weeks

$200.00 $149.99 Save $50.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-59PVMW

Hanwha SBP-59PVMW Telescopic Pendant Mount

Telescopic pendant mount for PVM monitors, 5–9 ft adjustable reach
- Extends 5 to 9 feet for flexible ceiling and overhead positioning
- 360° rotation with +0°/–25° tilt for comprehensive viewing angles
- Fits 75x75mm and 100x100mm VESA patterns; aluminum-steel construction
Special Order · Ships in 2-3 weeks

$200.00 $149.99 Save $50.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-900CMP

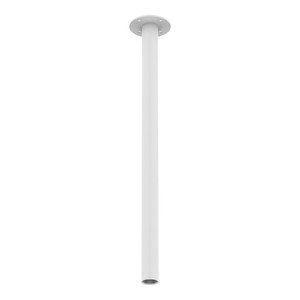

Hanwha SBP-900CMP 900mm Ceiling Mount Pipe

900mm aluminum ceiling pipe for elevated camera positioning
- 900mm length reaches above drop ceilings and suspended obstacles
- Lightweight 1.7 kg aluminum with white finish blends into ceilings
- ø54mm rigid pipe diameter minimizes vibration under camera payload
In stock · Ships same business day

$100.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-900CMW

Hanwha SBP-900CMW 900mm Pendant Ceiling Mount

900mm aluminum pendant mount for discrete ceiling camera placement
- 900mm extension clears obstructions and positions cameras at optimal angles
- White aluminum (RAL9003) blends into drop ceilings and standard installations
- TR30 screw thread connects to Hanwha hanging adaptors; M25 conduit opening
In stock · Ships same business day

$210.00 $157.99 Save $52.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-917PVMB1

Hanwha SBP-917PVMB1 Telescopic Pendant Monitor Mount

Telescopic pendant mount extends 9.5–17 feet for ceiling-mounted displays
- Extends 9.5 to 17 feet with 360° rotation and +7° to +25° tilt range
- Supports VESA 75/100mm monitors up to 35 lbs on Uni-strut systems
- Aluminum and steel construction weighs 14 lbs for straightforward installation
Special Order · Ships in 2-3 weeks

$250.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-917PVMW1

Hanwha SBP-917PVMW1 Telescopic Pendant Mount White

Telescopic pendant mount, 9.5–17 ft range, 35 lb capacity
- Extends 9.5 to 17 ft with 360° rotation and +7° to −25° tilt range
- VESA 75/100 compatible, supports up to 35 lb equipment load
- Aluminum and steel construction, uni-strut mountable, 14 lb weight
Special Order · Ships in 2-3 weeks

$300.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-B-100P

Hanwha SBP-B-100P Gang Box Converter Plate

Single gang box converter plate for XNV-6011 and SNV-6013 cameras
- Mounts directly to standard electrical boxes for space-constrained wall installations
- Compatible with XNV-6011 and SNV-6013 Hanwha IP camera models
- Reduces installation complexity in retrofit and new construction deployments
Special Order · Ships in 2-3 weeks

$39.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-C15H

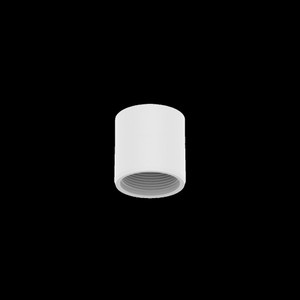

Hanwha SBP-C15H 1.5" Thread Coupler White 4-Pack

1.5" PF thread coupler 4-pack for ceiling mount assemblies, white aluminum
- 1.5" PF-to-PF threading connects bases to adaptors without reducers or custom work
- Lightweight aluminum at 115g per unit resists corrosion in indoor installations
- White RAL 9003 finish blends with ceiling tile and drywall in office environments
In stock · Ships same business day

$80.00 $53.99 Save $26.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-C15NP

Hanwha SBP-C15NP 1.5 Inch Thread Converter

1.5" NPT-to-PF thread converter for Hanwha SBP dome cameras
- Converts male NPT to female PF threads without stacking adapters
- Aluminum body with white powder coat resists corrosion and UV
- Lightweight 280 g design prevents stress on mounting connections
In stock · Ships same business day

$20.00 $13.99 Save $6.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-C15NPS

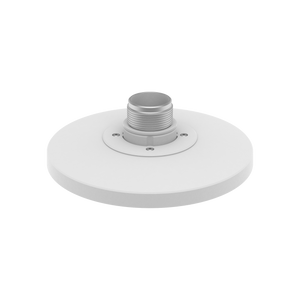

Hanwha SBP-C15NPS Thread Converter 1.5 NPT to PF

1.5 NPT to PF thread converter for Hanwha camera mounting
- Converts 1.5 NPT pipe threads directly to PF camera mount threads
- Eliminates need for multiple adapters in mixed-thread installations
- White form factor thread converter for standard security camera setups
Special Order · Ships in 2-3 weeks

$160.00 $124.99 Save $35.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-C15P

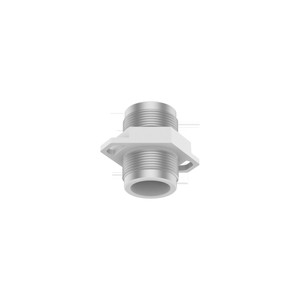

Hanwha SBP-C15P Ceiling Mount Coupler

Aluminum ceiling threaded coupler for extended camera positioning
- Connects compatible SBP mount fixtures (SBP-150CMP, SBP-300CMP, SBP-900CMP)
- Lightweight 230g aluminum construction resists corrosion in indoor ceilings
- White RAL 9003 finish blends with standard suspended grids and drywall
In stock · Ships same business day

$20.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Hanwha SBP-317HMWP White Hanging Mount for Panoramic Cameras

Hanwha SBP-317HMWS NSF Cap Adapter

Hanwha SBP-35PVMW Telescopic Pendant Mount

Hanwha SBP-390WM2 Long Wall Mount Arm, Ivory

Hanwha SBP-400WMW Outdoor Aluminum Wall & Pole Mount

Hanwha SBP-59PVMB Telescopic Pendant Mount

Hanwha SBP-59PVMW Telescopic Pendant Mount

Hanwha SBP-900CMP 900mm Ceiling Mount Pipe

Hanwha SBP-900CMW 900mm Pendant Ceiling Mount

Hanwha SBP-917PVMB1 Telescopic Pendant Monitor Mount

Hanwha SBP-917PVMW1 Telescopic Pendant Mount White

Hanwha SBP-B-100P Gang Box Converter Plate

Hanwha SBP-C15H 1.5" Thread Coupler White 4-Pack

Hanwha SBP-C15NP 1.5 Inch Thread Converter

Hanwha SBP-C15NPS Thread Converter 1.5 NPT to PF

Hanwha SBP-C15P Ceiling Mount Coupler

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
