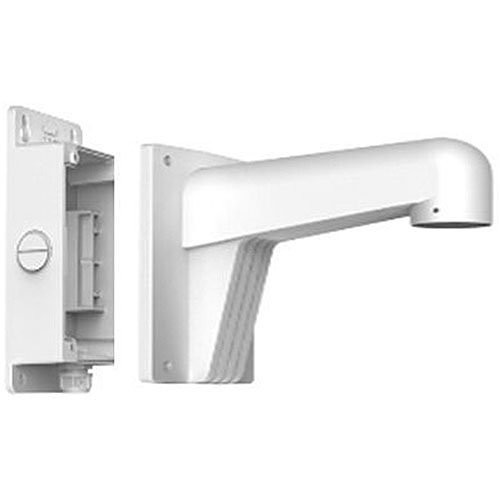

Hikvision WMS Wall Mount with Junction Box – Short
The Hikvision WMS is a professional-grade wall-mount assembly designed to anchor and protect Hikvision pendant cap cameras in both indoor and outdoor deployments. The unit combines a mounting bracket with an integrated junction box — a critical feature when you're wiring multiple cameras across a facility and need to centralize cable protection without running individual conduit to each camera location.
Key Features
- IP66 Junction Box: Seals all cable connections against dust and high-pressure water spray. This matters because exposed RJ-45 terminals and power splices will corrode in wet environments or fail under direct rain. IP66 stops that. Skip this if you're installing in a dry, climate-controlled hallway; grab it for any roofline, courtyard, or loading-dock camera.
- Aluminum Alloy Construction: Lighter than steel but resists corrosion without repainting. Reduces installation fatigue on tall mounts and won't rust if mounted in salt-spray or industrial environments. Typical service life is 5–10 years in moderate climates before any surface degradation.
- Short-Form Factor: Compact profile (exact dimensions not specified in evidence) fits tight spaces — useful where you're mounting between soffit and gutter or in narrow mechanical chases. If you need a longer arm reach or drop, contact the manufacturer for the standard-length variant.
- Universal Hikvision Pendant Cap Compatibility: Works with any Hikvision camera model equipped with a pendant cap connector. This is the standard Hikvision bracket interface, so you're not locked to a single camera SKU. Simplifies spares inventory if you're managing a multi-site rollout.
- Complete Hardware Kit Included: Screws and wall anchors are shipped with the unit. No separate ordering of fasteners. Saves a day or two of procurement cycles on small jobs.
- White Powder-Coat Finish: Neutral aesthetics for retail, office, and campus deployments. Blends into suspended ceilings and light-colored walls. If you need black or stainless for industrial or high-security sites, check the Hikvision accessory catalog for alternate finishes.
Integration & Compatibility
The WMS mounts to standard masonry, drywall, or metal studs via included anchors. For outdoor concrete or brick, use appropriate masonry anchors rated for your wall substrate and camera weight. The junction box accommodates standard RJ-45 and power connectors; cable management inside is basic — no internal cable clips or guides, so pre-stage your wiring before final closure.
Pair this with Hikvision NVRs or a third-party network video management system that supports ONVIF or Hikvision proprietary APIs. The WMS is a passive mounting accessory — it does not process, encode, or restrict video flow.
Frequently Asked Questions
Q: Can I install the WMS outdoors year-round?
A: Yes. The IP66 rating handles rain, dust, and wind-blown moisture. However, sustained freezing temperatures (below −20°C / −4°F) or direct salt spray will accelerate corrosion of fasteners over time. For coastal or arctic climates, verify fastener material with the manufacturer and consider additional protective coatings or stainless hardware.
Q: Is the junction box large enough for multiple cables?
A: The WMS is sized for a single camera's pendant-cap connector, power input, and basic splitter or relay logic. If you're daisy-chaining multiple cameras or running auxiliary sensors, this box will be cramped. Plan your cabling before final assembly.
Q: Does the WMS come with a rain shroud or cable gland covers?
A: Not specified in the evidence. The junction box itself is sealed, but the mounting arm and any exposed connector points rely on the ingress protection of the attached camera. Confirm cable entry sealing with the camera's pendant-cap design before deployment in heavy rain zones.
Q: What's the maximum camera weight the WMS can support?
A: Load rating is not specified in available evidence. Contact the manufacturer or system integrator with your specific camera model to verify structural suitability. Most Hikvision pendant caps (turrets, domes) are under 1 kg, but heavier motorized housings may require a reinforced or standard-length variant.
Q: Can I use the WMS with non-Hikvision cameras?
A: The WMS is designed specifically for Hikvision pendant-cap interfaces. Retrofit with third-party cameras is not recommended without mechanical adapter plates, which are not included and may compromise weatherproofing.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Hikvision WMS short-form wall mount is a straightforward accessory — it's not glamorous, but it solves a real problem: housing camera power and network splices outdoors without leaving them exposed to salt, dust, or UV degradation. The IP66 rating on the junction box is the core value proposition here. That spec means sealed gaskets, drain provisions, and corrosion-resistant internals. In a retail parking lot or industrial loading dock where you're mounting cameras 12–15 feet up, having the junction box at the mount — rather than running individual conduit down to a ground-level cabinet — cuts your materials cost and labor time.
Technical Highlights:
- IP66 Environmental Sealing: Direct-spray water resistance is critical for roofline or courtyard installations. Aluminum alloy resists corrosion better than painted steel, so the box won't degrade if you're in a humid or mild salt-spray climate. However, fasteners will still corrode if exposed metal is used — confirm stainless hardware if deploying in harsh maritime or chemical industrial zones.
- Aluminum Construction Weight Advantage: A lightweight mount reduces installation fatigue and structural loading on masonry surfaces, especially useful when you're positioning cameras 30+ feet high or working on pre-cast or composite facade materials.
- Short-Form Compactness: The short variant solves installation headaches in tight mechanical spaces or soffit/gutter transitions. If you find the arm too short once on-site, you'll need to order the standard-length model — so confirm reach requirements during site survey, not after delivery.
Deployment Considerations:
- Load rating is not published. Always verify the WMS can support your specific camera model before installation. Hikvision pendant-cap turrets and domes typically weigh under 1 kg, but any motorized housing or custom bracket could exceed the mount's load limit.
- The junction box is single-camera sized. If you're clustering multiple cameras on one pole or running auxiliary sensors, plan cabling and splicing in advance — cramped box interiors often require field reorganization later, and that's expensive on tall installs.
Position the WMS at retail entry/exit points, perimeter fence lines, and outdoor loading docks where cable runs exceed 20–30 meters and you need centralized weatherproof cable management without ground-level cabinets or long conduit runs. Skip it for indoor hallway or climate-controlled room deployments — a standard surface-mount bracket will cost less and serve equally well.
