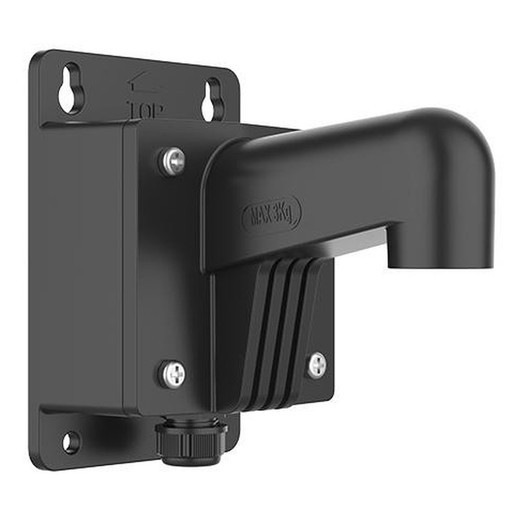

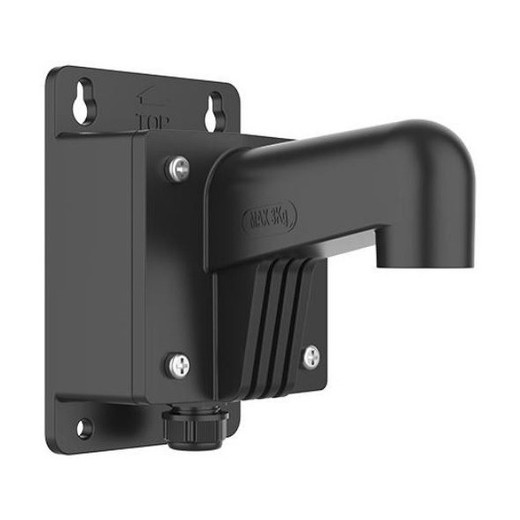

Hikvision WMSB Short Wall Mount with Junction Box
Overview
The Hikvision WMSB is a wall-mounted bracket system that combines camera mounting with integrated junction box functionality. This accessory simplifies multi-camera deployments by consolidating cabling and environmental protection into a single fixture. The WMSB is designed to work with select Hikvision IP cameras and pendant-style enclosures, reducing installation labor and material costs on both small and large surveillance systems.
Key Features
- Integrated Junction Box: Eliminates the need for a separate weatherproof enclosure at the mounting point. Cable splices and connections stay protected inside the integrated box, cutting both parts inventory and on-site assembly time.
- 110 lbs Weight Capacity: Supports most mid-range and compact camera bodies plus associated hardware. This weight budget is sufficient for standard turret, dome, and bullet cameras with 2.8–8mm lenses, but verify the exact camera mass before mounting heavier PTZ or multi-sensor units.
- Aluminum Alloy Construction: Resists corrosion in salt-spray, humid, and industrial atmospheres. Aluminum is lighter than steel, reducing strain on building fasteners, and dissipates heat more efficiently than plastic — useful if the mounting point receives direct sun exposure.
- Waterproof (IP66) Design: Seals the junction area against rain, snow, and spray. IP66 means water jets from any angle won't penetrate; however, it does not protect against submersion or high-pressure washdown environments (those require IP67 or higher). Suitable for exterior building faces, canopy undersides, and light-duty wet-location applications.
- Black Finish: Blends into dark building surfaces and reduces visual clutter on facades. The color choice has no performance impact but matters for aesthetics and subtle installations.
- Compatible with Hikvision Pendant Caps: Works with select Hikvision mounting accessories, reducing the need for field adapters and ensuring consistent cable strain relief across your installation.
Installation & Deployment Context
The WMSB is installed on vertical or near-vertical building surfaces — walls, fascia, bridge columns, and structural supports. The integrated junction box accepts camera feed cables, power leads, and auxiliary connections, then routes them downward or laterally through building chases, conduit, or cable trays. This approach is particularly valuable on large facade deployments where running separate surface-mounted junction boxes at each camera point would create visual clutter and increase parts cost. On retrofit projects where conduit or cable trays are not yet installed, confirm that the building's waterproofing and insulation remain intact around the mounting fasteners.
When to Choose a Different Model
If your camera exceeds 110 lbs or you need to mount heavier panoramic or multi-sensor units, verify weight capacity with the camera manufacturer and consider a reinforced or wall-brace mounting system. If the installation environment involves submersion, high-pressure spray, or cryogenic temperatures, consult Hikvision's outdoor enclosure catalog for a higher IP-rated or temperature-rated solution. For ceiling-mount or pendant-drop installations, a different form factor (pendant-cap assembly or ceiling bracket) is required.
Frequently Asked Questions
Q: Does the WMSB work with all Hikvision cameras?
A: The WMSB is compatible with select Hikvision camera models and pendant caps. Verify mounting bolt patterns and weight limits with the camera documentation before purchasing.
Q: What fasteners and anchors are needed to mount the WMSB to concrete or brick?
A: Fasteners are not included. Use stainless steel or galvanized anchor bolts rated for your wall material (masonry, metal, or wood) and appropriate to the 110 lbs load. Local building codes may specify bolt size and spacing.
Q: Can the junction box be opened for servicing or cable changes after installation?
A: Yes, the integrated junction box is accessible. Ensure water seals are replaced if the box is opened in wet conditions.
Q: Is the WMSB suitable for underground or submersion applications?
A: No. IP66 rating protects against rain and spray but not submersion. For underwater or submersed cabling, use IP67 or higher-rated enclosures.
Q: What is the temperature operating range for the WMSB?
A: Aluminum and sealing materials typically operate from approximately -40°C to +60°C. Verify with Hikvision technical support for extreme-climate environments.
Q: Does the black finish fade or require repainting?
A: Powder-coat finishes on aluminum are UV-resistant and designed for outdoor exposure. Periodic cleaning is recommended; repainting is not typically needed unless cosmetic restoration is desired after many years of exposure.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Hikvision WMSB is a practical infrastructure component that pays off most visibly on facade deployments where you have 6 or more wall-mounted cameras. The 110 lbs weight capacity is adequate for most compact and turret-body cameras, and the integrated junction box eliminates per-camera weatherproof enclosure costs — a material saving when scaling across a retail district or warehouse perimeter.
Technical Highlights:
- Aluminum Alloy Corrosion Resistance: Aluminum offers meaningful life-cycle value in coastal or high-humidity zones where steel mounts corrode or require repainting every 3–5 years. No sacrificial anodes or active maintenance needed.
- IP66 Integrated Junction Box: Keeps cable splices and connections sealed from weather. On a 12-camera installation, this saves roughly $300–600 in standalone weatherproof splice enclosures, plus 4–6 hours of rack assembly and testing labor.
- 110 lbs Capacity Boundary: Sufficient for most 2MP to 5MP domes and bullets with standard 2.8–8mm varifocal lenses. If your camera plus pan-tilt head exceeds 110 lbs, the WMSB becomes a constraint — you'll need a reinforced bracket. Always confirm camera mass before spec-locking.
Deployment Considerations:
- The WMSB is a wall-only mount. Ceiling, pole, and pendant installations require different form factors. Verify your building surface is solid masonry, steel, or concrete before relying on the standard fastening load assumptions.
- IP66 sealing is effective for outdoor rain and spray but does not include thermal insulation. If your junction box sits in direct sunlight, internal cable temperatures can rise significantly in summer months — ensure camera and switch power supplies tolerate the ambient temperature rise.
Best suited for large-scale perimeter surveillance on retail centers, warehouse loading docks, or multi-building campuses where facade consistency matters and junction box consolidation reduces both cost and visual clutter. Not recommended for parking-lot pole mounts or applications requiring more than 110 lbs.
