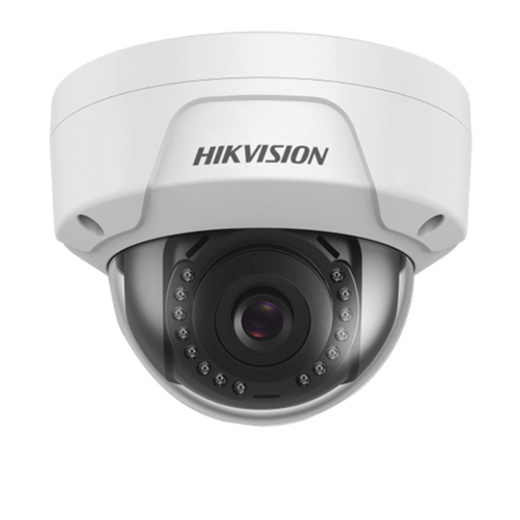

Hikvision ECI-D14F4 (4MP) Outdoor Fixed Dome IR IP Camera

MSRP: $135.00

Add to Cart for Sale Price!

$82.99
Adding to cart… The item has been added
SKU: ECI-D14F4
UPC: 842571119534
Condition: New
Availability: Usually Ships Same Business Day
Warranty: 5-year warranty

Industry Leading Prices

Quantity Discounts
Available

Certified Experts

Pre and Post-sales
Support Available

Free Shipping on Orders Over $499

Same Day Shipping on
Most Orders

Hikvision ECI-D14F4 (4MP) Outdoor Fixed Dome IR IP Camera

MSRP: $135.00

Add to Cart for Sale Price!

$82.99
Description

The Hikvision 4MP Outdoor IR Dome IP Camera is a pinnacle of modern surveillance technology, designed to cater to the demanding needs of outdoor security monitoring. This camera likely features a high-resolution 4MP sensor, delivering crisp and clear images that capture every detail, making it an invaluable asset for security professionals who require precision in their surveillance footage. The integration of IR capabilities ensures that the camera performs exceptionally well in low-light conditions, providing clear images even in complete darkness, typically up to a range of 30 meters, thanks to Hikvision's advanced EXIR technology.

This camera is probably equipped with a durable dome casing, designed to withstand adverse weather conditions, signifying its capability for outdoor installation with an IP67 rating for water and dust resistance. The inclusion of H.265+ compression technology would be expected, enhancing the camera's efficiency by reducing storage and bandwidth requirements without compromising video quality. Such a camera would be ideal for a wide array of applications, from perimeter surveillance to monitoring sensitive areas, where image quality and durability are paramount. The combination of high-resolution imaging, advanced night vision, and robust construction makes the Hikvision 4MP IR Dome Camera a top choice for professionals seeking reliable outdoor surveillance solutions.

Key Features:

  • High-Definition Imaging: Delivers crisp and detailed 4MP resolution footage, providing clear visuals for effective surveillance.
  • Infrared Night Vision: Equipped with powerful IR LEDs, enabling night vision capabilities for round-the-clock monitoring, even in complete darkness.
  • Weatherproof Design: Built to withstand the elements with its IP67-rated weatherproof housing, ensuring reliable operation in rain, snow, and extreme temperatures.
  • Wide Dynamic Range (WDR): Maintains balanced and detailed images in challenging lighting conditions, compensating for backlight and glare to ensure clear visibility.
  • Smart Motion Detection: Utilizes intelligent algorithms to accurately detect motion, reducing false alarms and ensuring timely alerts for suspicious activity.
  • H.265+ Compression: Maximizes storage efficiency by optimizing video compression, reducing bandwidth and storage requirements without sacrificing image quality.
  • Power over Ethernet (PoE): Simplifies installation by allowing both data and power to be transmitted through a single Ethernet cable, reducing wiring complexities.
  • Remote Access: Provides convenient access to live or recorded footage from anywhere via a web browser or dedicated mobile app, facilitating real-time monitoring and playback.

Compatibility:

  • Compatible with Hikvision NVRs and DVRs for seamless integration into existing surveillance systems.
  • Supports ONVIF protocol for interoperability with various third-party devices and software solutions.

Specifications:

  • Resolution: 4 Megapixels (2688 x 1520)
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Weatherproof Rating: IP67
  • WDR: 120 dB
  • Compression: H.265+/H.265/H.264+/H.264/MJPEG
  • Power Supply: 12V DC/PoE (802.3af)

Package Contents:

  • 1 x Hikvision ECI-D14F4 4MP Outdoor IR Dome IP Camera
  • 1 x Mounting Bracket
  • 1 x Installation Guide
  • 1 x Set of Screws and Anchors

Summary: The Hikvision ECI-D14F4 4MP Outdoor IR Dome IP Camera stands out as a superior outdoor surveillance solution, offering high-definition imaging, advanced night vision capabilities, and robust construction for reliable performance in any environment. With features like wide dynamic range, smart motion detection, and remote access, this camera ensures comprehensive security monitoring for businesses of all sizes.

Specifications
Image Sensor: 1/3" progressive scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°
Focal Length & FOV: 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°;4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°
Lens Mount: M12
Iris Type: Fixed
Aperture: F2.0
Supplement Light Type: IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Main Stream: 50 Hz: 20 fps (2560 × 1440);25 fps (2304 × 1296, 1920 × 1080, 1280 × 720);60 Hz: 20 fps (2560 × 1440);30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression: Main stream: H.265/H.264/H.264+/H.265+;Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Region Of Interest (ROI: 1 fixed region for main stream and sub-stream
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate: 8 kHz/16 kHz
Environment Noise Filtering: Yes
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface, ISAPI
User/Host: Up to 32 users. 3 levels: administrator, operator and user
Network Storage: NAS (NFS, SMB/CIFS), ANR
Client: iVMS-4200, Hik-Connect
Web Browser: Plug-in required live view: IE 10+;Plug-in free live view: Chrome 57.0+, Firefox 52.0+;Local service: Chrome 57.0+, Firefox 52.0+
Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch: Auto, Schedule, Day, Night
Wide Dynamic Range (WDR: 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, 3D DNR
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
Built-In Microphone: Yes
Reset Key: Yes
Basic Event: Motion detection, video tampering, exception
Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug;PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension: Ø120 mm × 92.2 mm (4.72" × 3.63")
Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight: Approx. 440 g (1.0 lb.)
With Package Weight: Approx. 680 g (1.5 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: English, Ukrainian
General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
