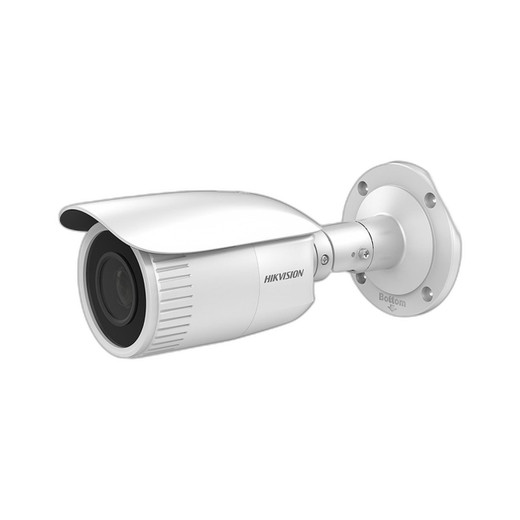

Hikvision ECI-B64Z2 4MP Outdoor Varifocal Bullet Camera

Hikvision ECI-B64Z2 4MP Outdoor Varifocal Bullet Camera

The Hikvision ECI-B64Z2 is a professional-grade 4MP outdoor bullet camera engineered for high-performance surveillance in demanding environments. Built with a 1/3" progressive scan CMOS sensor and motor-driven varifocal lens (2.8–12mm), this camera delivers exceptional clarity and adaptability across diverse monitoring scenarios. Its rugged IP67-rated metal housing withstands extreme weather conditions, making it ideal for perimeter security, critical infrastructure, and large-area coverage applications.

Key Features

• 4MP Resolution (2560 × 1440): Captures fine details for reliable identification and forensic analysis—essential when you need facial recognition or vehicle plate clarity at distance.
• Motorized Varifocal Lens (2.8–12mm): Adjustable 102° to 31° horizontal field of view enables remote focus and zoom configuration without physical camera repositioning. This flexibility eliminates the need for fixed-view camera arrays in changing operational layouts.
• EXIR Technology with 50m Range: 850nm IR illumination delivers clear monochrome imaging in complete darkness (0 Lux). The 50-meter reach covers larger outdoor perimeters than entry-level fixed-focus competitors, reducing total camera count.
• 120dB Wide Dynamic Range (WDR): Balances exposure across high-contrast scenes—sunlit building facades against deep shadows—eliminating overexposed and underexposed dead zones. Critical when a single camera must monitor both bright parking areas and building overhangs.
• IP67 Rating with Extended Operating Range: Sealed against dust ingress and water jets; rated for –30°C to +60°C operation. IP67 means submersion to 1 meter for 30 minutes is acceptable—exceeds typical outdoor rain/snow exposure. No sealed enclosure or additional housing required.
• PoE Powered (IEEE 802.3af): Draws maximum 12.9W via single Ethernet cable, so standard 60W PoE switches power multiple units without strain. Eliminates separate power supplies and conduit runs to outdoor locations.
• H.265+ Compression: Reduces bandwidth and storage costs by up to 50% versus H.264 without perceptible quality loss. On a 24/7 multi-camera recorder, this cuts storage provisioning from 48TB to 24TB—a direct cost multiplier.
• Dual-Stream Encoding: Transmit high-quality main stream for forensic review and low-bandwidth sub-stream for live remote monitoring on constrained networks (mobile, satellite, weak ISP links).
• 6-Channel Simultaneous Live View: Manage multiple camera feeds from a single network connection without protocol overhead, reducing VMS licensing and network card requirements.
• MicroSD Local Storage (up to 256GB): On-board recording for edge storage and redundancy. If your central recorder goes offline, the camera continues recording locally; retrieve footage when connectivity restores.

Image and Network Performance

Color sensitivity of 0.005 Lux (F1.6, AGC enabled) ensures usable color video in twilight conditions—dawn and dusk operations remain identifiable without switching to IR-only mode. Frame rates of 30fps at 1080p or 20fps at native 4MP (60Hz power systems) support real-time monitoring without frame drops during motion events. Advanced processing includes 3D noise reduction and adjustable saturation, brightness, contrast, and sharpness via web interface or iVMS-4200 client software.

Network connectivity spans TCP/IP, HTTP/HTTPS, RTSP/RTCP, FTP, DDNS, UPnP, NTP, and IPv6—enabling flexible deployment in complex IT environments. Alarm inputs and outputs, paired with motion detection and video tampering alerts, trigger linkage actions (FTP upload, email notification, recording activation). Support for up to 32 simultaneous user accounts with role-based access control (administrator, operator, user) ensures enterprise-grade security governance without vendor lock-in.

Integration and Compatibility

The ECI-B64Z2 conforms to ONVIF standard profiles, ensuring compatibility with vendor-neutral network video management systems and NVR platforms. If your facility runs Milestone XProtect, Genetec, or a third-party VMS, this camera integrates without proprietary plugins or codec licensing.

When to Choose a Different Model

If your deployment requires 8MP or higher resolution for ultra-fine forensic detail, consider Hikvision's higher-megapixel variants in the same series. If you need a fixed focal length to reduce cost and simplify maintenance, fixed-lens bullet alternatives deliver equivalent durability at a lower price point. For indoor-only applications or smaller rooms, evaluate indoor-focused models with shorter throw distances and lighter housings.

Mounting and Environmental Durability

Bullet form factor accommodates standard wall or eave mounting via universal bracket (not included in base unit). The metal housing's IP67 rating and extended temperature range eliminate the need for additional protective enclosures in most climates. For extreme temperature zones (below –40°C or above +70°C), verify thermal performance with site-specific testing or consult a camera selection guide.

Frequently Asked Questions

Q: What's the maximum IR range on the ECI-B64Z2?

A: 50 meters (164 feet) at 0 Lux with EXIR 850nm illumination in optimal conditions. Actual range depends on reflectivity of objects in the scene and lens aperture settings.

Q: Can I adjust the lens remotely without visiting the camera?

A: Yes. The motorized varifocal lens (2.8–12mm) allows remote focus and zoom adjustment via the web interface or VMS client software. No physical repositioning required after installation.

Q: Does the ECI-B64Z2 work with standard PoE switches?

A: Yes. The camera draws maximum 12.9W via IEEE 802.3af PoE, so it operates on any standard 60W PoE injector or PoE switch without exceeding power budgets.

Q: What compression formats does the ECI-B64Z2 support?

A: H.265+ (main stream for efficiency), H.264, and MJPEG (for legacy systems or low-bandwidth scenarios). Dual-stream encoding allows simultaneous high-quality and low-bandwidth transmission.

Q: Is there local recording capability if the network goes down?

A: Yes. MicroSD card storage up to 256GB provides edge recording for redundancy. If central recorder connectivity is lost, the camera continues recording locally; footage is retrievable once connectivity restores.

Q: What's the IP rating, and can it survive heavy rain or submersion?

A: IP67 means the camera withstands dust ingress and water jets (6) and brief submersion to 1 meter for 30 minutes (7). It handles heavy rain, snow, and high-pressure washdown. Avoid permanent submersion in water.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ECI-B64Z2 strikes an excellent balance between optical flexibility and robust outdoor durability. The motorized varifocal lens (2.8–12mm) is a standout advantage over fixed-lens competitors, allowing post-installation field-of-view adjustment without repositioning—a significant cost saver in dynamic surveillance deployments. The 120dB WDR and EXIR 50m IR pairing handles both bright daylight (102° FOV wide angle) and complete darkness without image degradation or mode switching artifacts.

Technical Highlights:

• H.265+ Efficiency: Reduces stored data by ~50% versus H.264 on 24/7 multi-camera deployments. At 20fps 4MP, a single 256GB microSD card holds roughly 72 hours of local backup—meaningful redundancy for WAN-disconnected perimeters.
• Dual-Stream Encoding: Main stream (H.265+, 4MP, 20fps) for forensic review; sub-stream (H.264 or MJPEG, lower bitrate) for mobile or satellite uplinks. Avoids the bandwidth tax of storing high-quality streams on resource-constrained edge networks.
• 12.9W PoE Budget: Fits standard 60W PoE Class 3 switches without oversubscription. 8–12 cameras per 60W injector; scales cost-effectively on large perimeter deployments without dedicated power infrastructure.
• 50m EXIR with 850nm: Outperforms passive IR on large open areas (parking lots, fence lines, tank farms). The 50-meter reach cuts total camera count vs. 30m alternatives—real savings on multi-site rollouts.

Deployment Considerations:

• Lens Calibration Required: The motor-driven focus demands proper setup. If installed at an extreme angle (ceiling-mount at shallow pitch), remote fine-tuning may be necessary post-installation. Budget 15–30 minutes for lens calibration after wiring.
• MicroSD Insertion Access: The card slot is on the camera body; verify mounting location allows safe insertion/removal without dismounting. On high eaves, this can complicate maintenance—plan access routes in advance.
• Frame Rate Trade-off at 4MP: Native 4MP caps at 20fps (60Hz power systems); 1080p reaches 30fps. If your VMS requires 30fps at full resolution, this model may not be the fit—consider higher-end variants or accept the 20fps constraint.

The ECI-B64Z2 excels in perimeter and critical infrastructure scenarios where post-installation focus flexibility and extended IR range reduce total system cost and future repositioning expense. Deploy it on fence lines, building overhangs, or parking lots where the 102°–31° zoom range eliminates the need for multiple fixed-view cameras.
