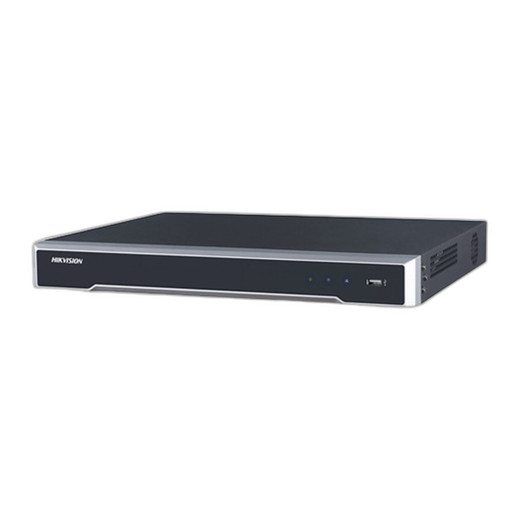

Hikvision DS-7608NI-Q2/8P-8TB 8-Channel 4K NVR with Integrated PoE
The Hikvision DS-7608NI-Q2/8P-8TB is a compact 1U network video recorder engineered for small-to-medium deployments where 4K (8MP) resolution and built-in PoE power matter. This device pairs 8 channels of simultaneous 8MP recording with 8TB of pre-installed HDD storage, integrated PoE delivery across all 8 ports, and H.265+ compression—eliminating redundant power infrastructure at camera locations while cutting storage consumption roughly in half versus H.264. The combination addresses a specific problem: organizations standardizing on higher-resolution IP surveillance without the budget or space for modular systems.
Key Features
- 8MP 4K Recording — Captures video at 8 megapixels (3840×2160 or equivalent), delivering forensic-grade detail for facial identification and license plate reads. Unlike 1080p or 2MP systems, this resolution matters for investigative review across large retail floors, warehouses, or manufacturing areas.
- 8-Channel Integrated PoE (802.3af/at) — All 8 input ports supply up to 15W per channel, eliminating the need for separate PoE injectors or power supplies at each camera. Real benefit: simpler cabling, fewer single points of failure, and direct budget savings on infrastructure hardware.
- 8TB Dual SATA HDD Storage — Pre-installed internal drives support up to 8TB total capacity per disk, with two bay expansion slots for future upgrades. At 8MP with H.265+, expect 5–7 days of continuous 24/7 recording across all 8 channels depending on scene complexity.
- H.265+ Video Compression — Advanced codec reduces file sizes 40–60% compared to H.264, translating directly to extended retention without expanding storage budgets. On a 24/7 multi-camera system, this is not a minor feature—it's a monthly operational savings.
- Dual Output Simultaneous Display — HDMI (4K: 4096×2160 or 3840×2160 @ 30 fps) and VGA support parallel monitoring configurations. Useful for control room environments where you need one output feeding a wall display and another on an operator workstation.
- 8-Channel Synchronous Playback — Review all 8 channels simultaneously during incident investigation, rather than scrubbing through feeds individually. Saves investigation time, particularly in retail loss-prevention or security breach scenarios.
- Human/Vehicle Detection Analytics — Intelligent filtering reduces noise alerts and focuses forensic review on relevant events. Pair this with your VMS rule engine for targeted intrusion or loitering detection without overloading your NOC.
- Two-Way Audio (RCA In/Out) — Supports intercom-style communication to remote locations via microphone and speaker, useful for access control checkpoints or warehouse communication protocols.
Integration & Compatibility
The DS-7608NI-Q2/8P-8TB inputs 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, and lower-resolution streams across mixed camera brands via standard RTSP/ONVIF. Network bandwidth requirement: 80 Mbps incoming and outgoing for real-time streaming and remote access, which fits comfortably on a managed corporate Gigabit Ethernet connection. The single RJ-45 Gigabit port supports TCP/IP, DHCP, DDNS, NTP, and Hikvision Hik-Connect cloud connectivity for off-site monitoring. Decoding performance: 1-channel @ 8MP (30 fps) or 5-channel @ 1080p (30 fps) simultaneously—useful context when configuring playback workloads or live multi-camera review on external monitors.
Power budget: the NVR itself draws ≤80W via external 48V, 2.5A power supply, plus up to 15W per camera channel from the integrated PoE. Operating environment: -10°C to +55°C, 10–90% humidity (non-condensing)—standard for indoor network closets, not rated for outdoor or harsh industrial environments.
When to Choose a Different Model
If you need more than 8 channels, consider a higher-channel variant in the Hikvision network video recorder line. If storage expansion beyond 8TB per disk is critical, evaluate models with additional SATA bay configurations. For harsh or outdoor environments requiring extended operating temperature or higher environmental ratings, this 1U indoor unit is not the right fit.
Frequently Asked Questions
Q: Can I use the DS-7608NI-Q2/8P-8TB with non-Hikvision IP cameras?
A: Yes. The NVR accepts any ONVIF-compliant IP camera—Axis, Dahua, Uniview, Panasonic, and others. The H.265+, H.265, H.264+, and H.264 codec support ensures broad compatibility. Verify your camera's RTSP stream profile matches one of the supported resolutions (8MP down to 1080p) before deployment.
Q: How much storage do I get for 24/7 continuous recording at 8MP?
A: Retention depends on scene complexity and H.265+ compression ratios. On a typical retail or office scene, 8TB provides approximately 5–7 days of continuous 24/7 recording across all 8 channels. High-motion environments (parking lots, highway interchanges) consume storage faster; low-motion scenes (hallways, warehouses at night) extend retention. Use a bandwidth calculator (available from Hikvision or your integrator) to estimate your exact retention period.
Q: Does the DS-7608NI-Q2/8P-8TB support integration with Milestone XProtect or other VMS platforms?
A: Yes, via ONVIF Profile S/T. Integrate the NVR as an ONVIF-compliant recording device in Milestone, Genetec, or other enterprise VMS systems. However, note that the NVR's built-in analytics (human/vehicle detection) operate independently; sophisticated rule engines and AI-driven insights may still require your VMS platform's analytics layer.
Q: What is the maximum bandwidth usage if all 8 channels stream simultaneously at 8MP?
A: The NVR is rated for 80 Mbps incoming and outgoing network bandwidth. Actual usage depends on your camera bitrate settings and codec. H.265+ typically runs 8–12 Mbps per 8MP stream in standard scenes; with 8 channels, you're looking at 64–96 Mbps combined, which requires a managed Gigabit network or traffic prioritization.
Q: Can I expand storage beyond the included 8TB?
A: Yes. The NVR includes two SATA bay slots; each supports up to 8TB per disk. You can replace or add drives to expand total capacity. Confirm drive compatibility with Hikvision's approved HDD list before installation.
Q: What is the physical footprint and weight of the DS-7608NI-Q2/8P-8TB?
A: The 1U chassis measures 385mm wide × 315mm deep × 52mm tall (roughly 15.2 in. × 12.4 in. × 2 in.) and weighs ≤2.6 kg (5.7 lbs), fitting standard 19-inch rack mounts or desktop placement in network closets. Compact form factor is ideal for branch offices and remote locations with limited space.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DS-7608NI-Q2/8P-8TB solves a practical problem for integrators moving small- to mid-market customers from analog or 1080p IP systems to 4K surveillance without requiring a complete infrastructure rebuild. The integrated PoE design eliminates the cabling sprawl typical of legacy deployments, while 8TB of pre-installed storage with H.265+ compression delivers meaningful 24/7 retention on an 8-channel 8MP system. The dual SATA bays mean you're not locked into the initial capacity—future upgrades are straightforward.
Technical Highlights:
- H.265+ Compression at 8MP: Reduces bitrate 40–60% versus H.264, translating to roughly 5–7 days of continuous retention on the included 8TB across all 8 channels. That's a real operational advantage on systems where forensic lookback matters.
- 8-Channel PoE @ 15W per port: Eliminates dedicated power supplies at camera locations. A single 48V/2.5A external supply and your switch's PoE budget become the only power concerns. Simplifies site surveys and reduces field labor on camera installation.
- Decoding Performance (1-ch @ 8MP / 5-ch @ 1080p simultaneous): Meaningful for control rooms where operators need live multi-feed playback alongside recorded stream review. Don't expect to decode all 8 channels at full 8MP simultaneously—this is a recording device first, playback appliance second.
- 80 Mbps Bidirectional Bandwidth: Sufficient for real-time remote monitoring over managed corporate networks. On congested or residential circuits, expect adaptive bitrate scaling or buffering; plan accordingly in your site survey.
Deployment Considerations:
- Storage Math: The 8TB figure assumes consistent H.265+ compression across typical indoor scenes. High-motion environments (loading docks, busy retail floors) burn through storage faster. Use a bandwidth calculator before committing to a retention SLA.
- Thermal & Environmental: The 1U form factor and -10°C to +55°C operating range assume controlled indoor placement (network closets, server rooms). Outdoor enclosures or harsh temperature swings require a different approach.
- Codec Flexibility: While the recorder handles H.265+, H.265, H.264+, and H.264, mixed-codec deployments can fragment your bitrate planning. Standardize on H.265+ for new camera deployments to maximize storage efficiency across the system.
Right fit: retail chains, manufacturing facilities, and enterprise branch offices standardizing on 4K surveillance with straightforward PoE-powered camera plants. Not right for sprawling multi-site deployments requiring tiered recording architectures or for outdoor/mobile surveillance use cases.
