Hikvision DS-7608NI-Q2/8P 8-Channel 4K NVR 12TB

Hikvision DS-7608NI-Q2/8P 8-Channel 4K NVR 12TB

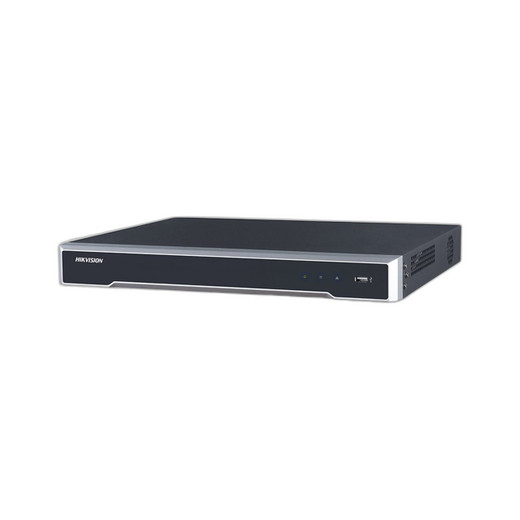

The Hikvision DS-7608NI-Q2/8P-12TB is a professional-grade 8-channel Network Video Recorder engineered for enterprise surveillance deployments. This compact 1U NVR combines exceptional storage capacity with advanced video compression and intelligent analytics, delivering a scalable solution for organizations requiring high-fidelity multi-camera monitoring. With 12TB of pre-installed storage and 8MP (4K) recording capability across all channels, the DS-7608NI-Q2/8P supports extended retention periods and detailed forensic analysis without frequent storage management.

Key Features

• 8MP 4K Recording: Captures ultra-high-resolution video at 8MP across 8 channels, enabling detailed identification and investigation
• 12TB Pre-Installed Storage: Expansible architecture with support for up to 8TB per SATA drive; dual 2 SATA interfaces maximize capacity
• 8-Channel PoE Support: Integrated 8-port PoE eliminates separate power infrastructure; 48V DC 2.5A max power supply
• H.265+ Compression: Advanced codec reduces bandwidth consumption to 80 Mbps incoming/outgoing while maintaining image quality

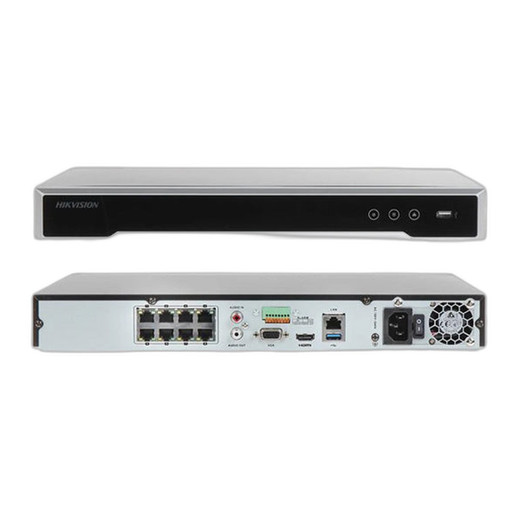

• Dual Display Output: Simultaneous HDMI and VGA output with 4K HDMI support (4096 × 2160 @ 30 Hz) and standard resolution VGA options
• Human/Vehicle Analysis: Integrated smart analytics for object detection and classification across 4 channels
• Synchronous 8-Channel Playback: Review all channels simultaneously for comprehensive incident investigation
• Two-Way Audio: RCA-based bidirectional communication for active monitoring scenarios

Technical Specifications

• Video Input: 8-channel IP video input supporting 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, and legacy resolutions (720p, VGA, CIF, QCIF)
• Decoding Capability: Single 8MP stream at 30 fps or 5 × 1080p streams simultaneously; H.265+, H.265, H.264+, and H.264 codec support
• Bandwidth & Networking: 80 Mbps bidirectional throughput; single 10/100 Mbps RJ-45 Ethernet interface; DHCP, DNS, DDNS, NTP, Hik-Connect, HTTPS, and iSCSI protocols
• Power Consumption: ≤ 15W operating; ≤ 80W peak; IEEE 802.3 af/at compliant
• Operating Environment: -10 to +55°C; 10–90% humidity (non-condensing)
• Physical Form Factor: Compact 1U chassis (385 × 315 × 52 mm); weight ≤ 2.6 kg; includes 2 × USB 2.0 ports

Applications

Ideal for retail, banking, manufacturing, transportation hubs, and enterprise facilities requiring reliable multi-site or multi-floor surveillance with extended storage. The PoE integration and compact 1U form factor suit standard server racks and distributed network deployments. Human/vehicle analytics support loss prevention, access control verification, and incident correlation across moderate-scale installations.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-7608NI-Q2/8P balances performance and operational efficiency. H.265+ compression significantly reduces storage bandwidth compared to H.264, extending the effective retention window of the 12TB capacity—critical for compliance and forensic workflows. The dual SATA interface and microSD support provide flexibility for hybrid local and removable-media archival strategies.

PoE integration streamlines installation labor in new builds and retrofits, while the simultaneous HDMI/VGA output accommodates legacy monitoring setups without additional converters. The 80 Mbps bandwidth constraint should be evaluated against camera bitrates; multiple 8MP streams at 30 fps per channel require careful bitrate budgeting. Decoding performance is reasonable for playback and search but single-channel 8MP at 30 fps—not full-rate multi-channel—suits review rather than live multi-window monitoring.

IEEE 802.3 af/at power delivery supports mid-range PoE cameras; high-power devices (90W+) require supplemental injectors. The integrated smart analytics across 4 channels adds investigative capability without external GPU hardware, though full-channel coverage requires careful ROI planning. Compact dimensions and low power consumption make this unit suitable for space-constrained and energy-conscious facilities.
