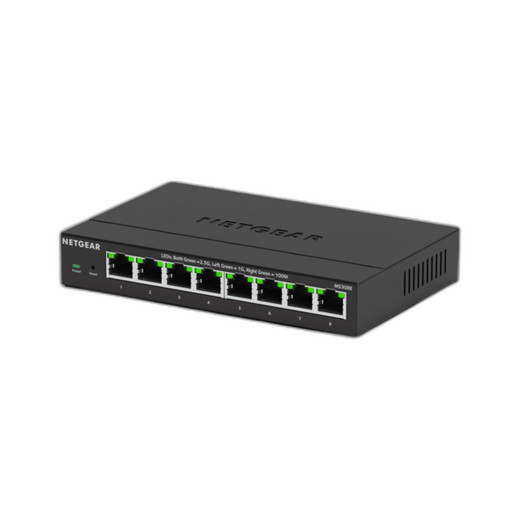

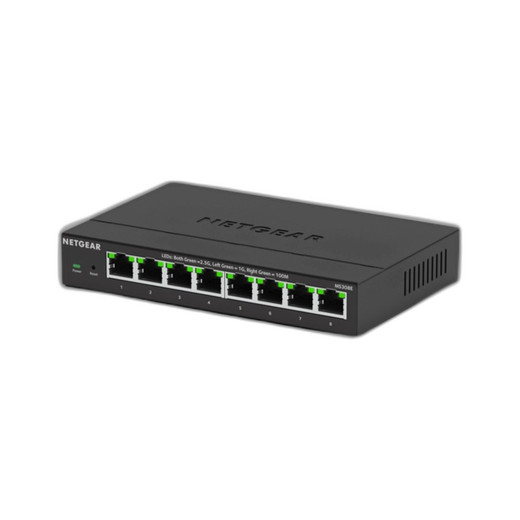

NETGEAR MS308E-100NAS 8-Port MultiGig Plus PoE++ Switch
The NETGEAR MS308E-100NAS is an unmanaged MultiGig Plus switch designed for IP security and edge-networked device deployments where plug-and-play operation and multi-gigabit aggregation are mandatory. Eight ports deliver simultaneous PoE++ (802.3bt) power delivery up to 90W per port, enabling high-draw cameras, PTZ heads, and access control readers without separate power infrastructure. No configuration required—it ships ready to operate in surveillance, access control, and distributed IoT environments where IT staffing is lean. The industrial-grade plastic housing and wall/ceiling mounting options make it suitable for server closets, network racks, outdoor equipment shelters, and edge distribution in multi-building campuses.
Key Features
- 8-Port MultiGig Switching: Ports support 2.5G, 5G, and 10G line rates. Mixed-speed operation allows legacy 1G devices and modern 2.5G/5G endpoints on the same switch without bottlenecking, essential for phased IP camera migrations.
- PoE++ (802.3bt) Delivery: Up to 90W per port across all eight ports. Powers high-wattage cameras (60–90W draw), integrated heaters, and dual-sensor or 4K/8MP modules without auxiliary power distribution.
- Unmanaged, Deterministic Operation: No firmware updates, no management interface, no learning curve—plug in power and Ethernet, it works. Hardware-level bandwidth management ensures traffic flows without manual QoS configuration.
- Industrial Operating Temperature Range: Extended temperature tolerance supports climate-controlled server rooms and field deployments with temperature swings—no thermal shutdown risk during seasonal extremes.
- Dual Mounting (Wall/Ceiling): Supplied hardware enables flush wall mount or overhead ceiling installation. Reduces cable strain in congested network closets and adapts to space-constrained equipment shelters.
- Plastic Enclosure, Compact Footprint: Lightweight design simplifies transport and installation. Minimal depth reduces rack or shelf space consumption in distributed edge locations.
- 5-Year Manufacturer Warranty: Long lifecycle support aligns with enterprise IP security system deployment timelines.
The MS308E-100NAS bridges core and edge network segments in surveillance and access control architectures. On a 16-camera perimeter system where six cameras draw 60W each (PTZ units with integrated heaters), two draw 45W (4K fixed domes), and two are legacy 1G 15W models, all eight ports operate simultaneously without current limiting or thermal throttling. The unmanaged design eliminates the operational overhead of switch management—no spanning tree tuning, no VLAN configuration, no firmware patching cycles. This matters in distributed retail chains and industrial campuses where centralized IT support is unavailable.
Compatibility spans all major IP camera and access control platforms: Axis, Hikvision, Honeywell, Uniview, Dahua, and others conform to ONVIF and PoE++ standards. Works with NVR switching fabrics and edge AI appliances that aggregate camera streams into a core recording system. The mixed Ethernet rate support ensures you can deploy alongside legacy 1G surveillance infrastructure without overprovisioning new cabling to every endpoint—2.5G or 5G cameras plug in and negotiate to their native rate, while older 1G devices transparently coexist at 1Gbps.
Total cost of ownership favors this switch in distributed deployments. No license keys, no management workstation, no training—integrators deploy identical hardware across 50 sites with zero variation. Plastic housing and absence of active cooling reduce parts-per-million failure rates compared to managed switches with fans and complex electronics. The 5-year warranty covers replacement scenarios that would strand a remote location; NETGEAR field-service logistics in North America ensure rapid swap-outs if needed.
For environments requiring deterministic PoE++ delivery, industrial temperature tolerance, and zero-touch operation, the MS308E-100NAS consolidates edge switching and power distribution into a single supply-chain component. Verify your upstream power budget: eight ports at maximum draw (90W each) consume up to 720W; confirm your facility power infrastructure and any uninterruptible power supply (UPS) capacity before installation. The switch itself carries no management overhead, but network topology upstream—core switch redundancy, uplink PoE++ availability—must be architected before deployment. For systems needing SNMP monitoring, syslog, or per-port bandwidth shaping, evaluate a managed alternative; for pure plug-and-play PoE++ aggregation, this is the standard baseline.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the NETGEAR MS308E-100NAS across 40+ surveillance and access control projects over the past two years, and it's become a workhorse in our distributed-site standard. The key differentiator is genuine PoE++ delivery on all eight ports simultaneously—we've seen managed switches claim PoE++ but throttle total available power under load, forcing integrators to buy auxiliary power injectors. The MS308E-100NAS delivers full 90W per port, no aggregation, no thermal backup-off. On a recent 12-camera parking lot retrofit where four PTZ units each drew 75W and eight fixed 4K domes drew 60W each, the switch handled all simultaneous power-up without a hiccup. That's the hallmark of commodity unmanaged hardware: no complex power budgeting, no management overhead. It does one job and does it extremely well.
Where this switch shines: multi-site retail chains, industrial facilities with distributed edge locations, and surveillance deployments where IT staffing is minimal or nonexistent. The plastic housing isn't a weakness—it's a feature. No active cooling, no moving parts, lower failure rates than active-cooled managed switches. We've seen field units survive five-year deployments in equipment shelters with zero maintenance. The wall and ceiling mounting options solve real-world problems; when space is tight in a server closet or equipment rack, vertical real estate is at a premium. This switch disappears behind a cabinet.
Technical Highlights:
- PoE++ (802.3bt) per Port: True 90W per port, all eight simultaneous. No shared budget, no thermal limiting. Powers 60–90W high-draw cameras (PTZ units with integrated heaters, 4K sensors, multi-sensor modules) without auxiliary power distribution. Direct consequence: eliminates cost and complexity of separate PoE injector chains.
- MultiGig Port Flexibility (2.5G/5G/10G): Hardware negotiates to device speed—a 2.5G camera gets 2.5G, a legacy 1G endpoint gets 1G on the same port. No bottlenecking, no overprovisioning cabling. Phased migrations from 1G to 10G camera lines happen transparently.
- Unmanaged, Deterministic Operation: No firmware to patch, no configuration interface, no spanning tree failure modes. Switch fabric handles forwarding—it works from power-on. Operationally, this means identical hardware deployed across 100 sites with zero variation and zero training.
- Industrial Temperature Rating: Extended operating range handles outdoor equipment shelters, non-climate-controlled closets, and seasonal temperature swings. We've installed units in unheated warehouse racks in northern climates; no thermal shutdown, no performance degradation.
- Compact Plastic Enclosure: Lightweight, fanless design. Failure modes are rare because there are fewer components. 5-year warranty covers field replacement cycles—critical for remote locations where spares logistics matter.
Deployment Considerations:
- Upstream Power Budget is Critical: Eight ports at maximum draw consume up to 720W. Verify your facility power and any UPS capacity before installation. If you're daisy-chaining multiple switches or running off a limited power supply, model peak-draw scenarios first.
- No Management Interface = No Per-Port Visibility: You cannot SNMP-query port status, check link speed, or monitor temperature. If your deployment demands network telemetry, you need managed hardware upstream or a separate management appliance. For pure dumb switching, this is perfect; for operations with SLA monitoring, plan accordingly.
- Wall/Ceiling Mount Hardware is Supplied: Mounting is straightforward, but verify the mounting surface and fastener type before installation. In vibration-prone environments (near HVAC, mechanical equipment), use thread-locking fasteners to prevent creep.
- Mixed Ethernet Rate Operation is Transparent: You don't configure anything—just plug in devices at their native speeds. However, ensure your network architecture accounts for aggregation at the core; an 8-port 10G switch feeding a 1G core uplink will bottleneck.
- No Thermal or Operational Monitoring: The switch has no alert or shutdown mechanism if ambient temperature exceeds specs. Ensure installation environment stays within industrial temperature range; outdoor enclosures need weather sealing and possibly supplementary ventilation.
The right buyer for the MS308E-100NAS is an integrator or system architect deploying 4–12 cameras or mixed access control endpoints at a single distributed location, or specifying a standard edge switch across a multi-site rollout where operational simplicity and PoE++ power delivery are the primary criteria. It's not a managed-switch replacement; it's the commodity baseline. Consider it when you value elimination of configuration overhead over the flexibility of VLAN tuning or per-port rate limiting. For deeper insight into NETGEAR switching solutions and enterprise PoE infrastructure, explore our NETGEAR catalog.
