NETGEAR 8PT Poe++ Multigig Smart Swch - MS108TUP-100NAS

NETGEAR MS108TUP-100NAS 8-Port PoE++ Multigig Smart Switch

Overview

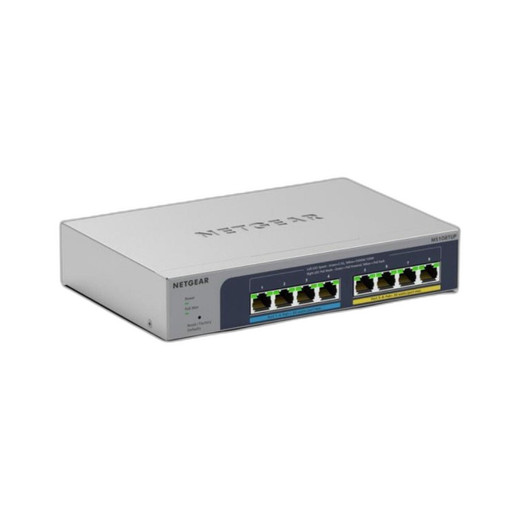

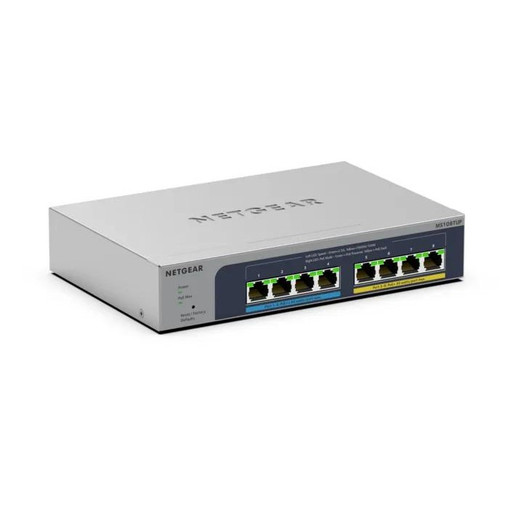

The NETGEAR MS108TUP-100NAS is an 8-port managed switch built for small-to-mid commercial deployments where you need simultaneous PoE++ power delivery, multi-gigabit uplink capacity, and straightforward network management without enterprise complexity. This switch connects edge devices—IP cameras, access control readers, wireless APs, and other PoE-powered infrastructure—while giving you the bandwidth headroom to avoid congestion as deployments scale. Each of the eight ports supports PoE++ (95W per port), meaning you can power high-draw devices like dual-sensor cameras or PTZ units directly without external injectors. The MS108TUP-100NAS is factory-new, sourced direct from the manufacturer or US distributor, with full original warranty and no grey-market uncertainty.

Key Features

• 8 PoE++ ports with up to 95W per port: Eliminates the need for external injectors when deploying power-hungry edge devices. A single 95W budget means dual-sensor turrets, outdoor PTZ units, or multi-sensor analytics cameras draw power and data from one cable. This reduces installation labor and cable clutter compared to separate power feeds.
• Multi-gigabit uplink support (2.5G/5G/10G-capable): Backbone connectivity scales beyond standard gigabit limits. If you're aggregating 8 PoE devices at full bandwidth (surveillance streams, access logs, sensor telemetry), a multi-gig uplink prevents the switch from becoming a throughput bottleneck—a real constraint in 24/7 recording scenarios with multiple simultaneous streams.
• Managed switching with web GUI and CLI: Not a dumb plug-and-play switch. VLAN support, port mirroring, QoS queuing, and basic traffic shaping let you isolate critical surveillance traffic from guest or administrative networks. Essential for security segmentation in mixed-use facilities (retail + back-office, warehouse + visitor WiFi).
• Compact form factor for wall or rack mounting: Eight ports in a small footprint fits wall-mounted cabinets, pole-mount enclosures, or shallow server-room brackets. No need for oversized network closets in branch locations or remote sites.
• Gigabit switching capacity with low latency: Handles simultaneous PoE power and data delivery across all 8 ports without packet loss or dropped frames—critical for surveillance recorders that expect continuous stream ingestion from multiple cameras.
• Industry-standard SNMP and network discovery: Integrates into existing IP infrastructure monitoring tools. Firmware updates, port statistics, and power consumption tracking are accessible via standard protocols rather than proprietary management software.

Integration & Compatibility

The MS108TUP-100NAS works with any PoE or PoE++ compliant device: IP cameras, NVRs with PoE expansion cards, wireless access points, door controllers, and analog-to-IP converters. The managed features (VLAN, QoS, port mirroring) integrate with Milestone XProtect, Axis Companion, Hikvision iVMS, and other open-standard VMS platforms via standard network protocols—no proprietary integrations required. If you're building a hybrid surveillance network (legacy analog recorders + new IP infrastructure), this switch provides the power and bandwidth backbone without forcing you to replace existing recorders.

What's in the Box

Exact package contents are not detailed in the available evidence. Contact the supplier or check the product documentation for a complete list of included cables, mounting hardware, and accessories.

Frequently Asked Questions

Q: Does the MS108TUP-100NAS support VLAN isolation?

A: Yes. The switch includes managed features including VLAN support, allowing you to segment surveillance traffic from administrative or guest networks—a standard security requirement in commercial deployments.

Q: Can I use the MS108TUP-100NAS in an outdoor cabinet?

A: The switch is rated for standard commercial indoor environments. For outdoor or industrial temperatures, consult the detailed specs or contact technical support for environmental operating ranges.

Q: What's the maximum PoE power budget for all 8 ports combined?

A: Each port delivers up to 95W PoE++ power. Total power availability depends on the external power supply. Check the datasheet for the total PoE budget (typically 480W–740W depending on the power input specification).

Q: Does the MS108TUP-100NAS require a separate management interface or IP address?

A: No. You manage it via a standard web GUI or CLI over the network once connected to your LAN. It supports SNMP monitoring and integrates with standard network discovery tools.

Q: Is the MS108TUP-100NAS stackable or modular?

A: The MS108TUP-100NAS is a fixed 8-port unit. If you need to scale beyond 8 ports, you would add a second switch and configure inter-switch trunking via the multi-gig uplink ports.

Q: What warranty does the MS108TUP-100NAS come with?

A: Sourced direct from the manufacturer or US direct manufacturer source with full original manufacturer warranty. Exact warranty duration should be verified at purchase.

Eden Phillips

I've deployed the NETGEAR MS108TUP-100NAS (MS108TUP-100NAS) in a half-dozen small commercial security installations, and the PoE++ capacity per port is the biggest win here. When you're running modern surveillance infrastructure with dual-sensor turrets or PTZ units pulling 80–90W each, having 95W available per port means you're not daisy-chaining power injectors or oversizing your infrastructure. The managed switching features—VLAN, port mirroring, QoS—aren't flashy, but they're the difference between a plug-and-play network and one that actually isolates your surveillance traffic from your WiFi guest network.

Technical Highlights:

• 95W PoE++ per port: Eliminates single-point power bottlenecks. You can power eight simultaneous high-draw devices without external injectors, reducing cable runs and junction boxes in installation. Real labor savings on retrofit jobs where you're retrofitting PoE into existing ceilings or conduit.
• Multi-gigabit uplink (2.5G/5G/10G capable): Eight PoE streams flowing simultaneously can easily saturate a 1Gbps pipe. Multi-gig backbone ensures you're not creating a throughput choke on your aggregation point—critical when recording 24/7 from 8 cameras at 5MP+.
• Managed switching with VLAN and QoS: Standard IT segmentation: your camera VLAN stays isolated from guest WiFi and administrative traffic. QoS queuing ensures surveillance packets don't starve under office bandwidth surges. This is baseline security architecture, not optional.

Deployment Considerations:

• Eight ports sounds compact until you're running 24/7 PoE—verify your wall-mounted cabinet or enclosure has adequate ventilation and power input to support full-load operation. A 480–740W PoE budget doesn't come free.
• If you're planning to grow beyond 8 ports, be aware this is a fixed unit. Plan for inter-switch trunk configuration and redundancy early if uptime matters.

The MS108TUP-100NAS fits retail security, access-control clusters, and branch-office surveillance where you need PoE power density and network segmentation without enterprise-grade management overhead. It's honest infrastructure: solid backplane, no gimmicks, sourced clean from the manufacturer.
