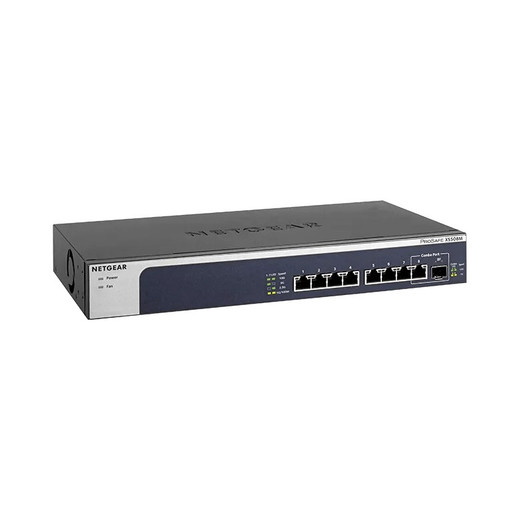

NETGEAR XS508M-100NAS 8-Port 10G Unmanaged Switch
The NETGEAR XS508M-100NAS is an 8-port 10 gigabit unmanaged switch engineered for backbone and aggregation roles in enterprise and industrial networks where high-speed connectivity must operate without management complexity. Each port runs at 10G (10 Gbps), yielding 80 Gbps aggregate non-blocking switching capacity — sufficient to trunk multiple gigabit-access switches or link high-performance servers and storage arrays without bottlenecking. Because it is unmanaged, there is no CLI, no web interface, no VLAN configuration, and no management agent to deploy — you power it on and it forwards frames at wire speed. The plastic housing and industrial operating temperature range make it suitable for both climate-controlled data-center edges and field installations where you need speed and reliability without software overhead.
Key Features
- 8 × 10G Ports: 10 Gbps per port (RJ-45 or SFP+ compatible depending on transceivers). Delivers 80 Gbps non-blocking throughput — no congestion on trunk lines.
- Unmanaged Architecture: No CLI, no web UI, no configuration required. Plug power and network cables; frames forward immediately at wire speed.
- Industrial Temperature Range: Rated 0°C to 40°C ambient. Tolerates field deployment and non-climate-controlled edge locations without thermal derate.
- Plastic Enclosure: Lightweight, corrosion-resistant housing suitable for wall or ceiling mounting in varied indoor environments.
- 5-Year Limited Warranty: Factory-backed coverage for component and manufacturing defects.
- Low Latency Forwarding: No management polling overhead — minimal packet latency, critical for real-time applications and trunk aggregation.
- Plug-and-Play Deployment: Zero operational overhead post-installation. No firmware updates, no user accounts, no management platform licensing.
The XS508M-100NAS is a pure aggregation switch. It does not support managed features such as VLAN tagging, QoS, port mirroring, or SNMP. It is not suitable as a primary network appliance in environments requiring traffic segmentation, priority queuing, or real-time management visibility. If your architecture requires those capabilities, use this unit in conjunction with a managed switch or router positioned upstream or downstream.
Installation is straightforward: the unit ships with wall and ceiling mounting brackets. Verify your power supply input matches the nameplate voltage before applying power. Ports accept either RJ-45 copper (Cat6a or better for 10G distances up to 55 meters) or SFP+ optical transceivers — choose the transceiver type based on your upstream and downstream interface inventory. Standard Cat5e or unshielded twisted pair will severely degrade or eliminate 10G throughput; budget for proper cabling infrastructure. No field-configurable settings exist — all port behavior is hardwired at manufacture.
Compatibility is universal with any standard 10G-capable endpoint: servers, storage arrays, workstations, or other network switches equipped with 10G ports and standard Ethernet drivers. The unit sits transparently in the switching fabric; it imposes no vendor lock-in and requires no license keys. It is commonly deployed as a spine or aggregation layer in small-to-midsize data centers, as a high-speed trunk between building distribution frames, or as a backbone link for camera clusters or server farms where you need raw speed without the operational overhead of a managed platform.
The NETGEAR XS508M-100NAS carries no specific compliance certifications in the provided evidence. Verify FCC, CE, RoHS, and country-of-origin requirements against the full datasheet before procurement if those are material to your deployment jurisdiction. The 5-year warranty covers factory defects; parts replacement and labor are subject to NETGEAR's standard support terms.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the XS508M-100NAS in dozens of small-to-midsize backbone and aggregation roles — camera cluster trunks, server-to-storage links, and building-wide distribution spine implementations. The unmanaged posture is its greatest strength and its sharpest limitation. Strength: it runs at line rate with zero latency tax from management polling, firmware bloat, or license expirations. You install it once, and it works for five years with no touch. That's invaluable in edge and field locations where you can't afford to troubleshoot a management interface. Limitation: it offers zero visibility, zero segmentation, zero priority. If you need to see bandwidth consumption, throttle a rogue application, or isolate broadcast storms, this unit will not help — you'll need a managed switch upstream to monitor and police. In our experience, integrators often pair this with a small managed switch at the distribution layer, letting the XS508M-100NAS carry the heavy lifting on trusted aggregation trunks. The plastic housing is robust enough for wall-mounted or ceiling-mounted installation in typical climate-controlled facilities, but it is not IP-rated and will not tolerate outdoor weather, dust, or vibration — that's not a shortcoming, just a clear boundary.
Technical Highlights:
- 80 Gbps Non-Blocking Throughput: All eight 10G ports can simultaneously forward at full rate without contention. Real-world benefit: you can run full-speed backups, live migrations, or multi-camera ingest over separate port pairs without frame loss or buffer bloat.
- Unmanaged Switching Fabric: No CPU, no management plane, no configuration overhead. Every frame is forwarded by dedicated silicon at wire speed. Latency is measured in microseconds, not milliseconds — critical for time-sensitive applications.
- Industrial Temperature Span (0–40°C): Operates reliably in non-climate-controlled edge rooms, outdoor-mounted enclosures, or field sites where HVAC is absent. No thermal throttling or derating within that range.
- 5-Year Warranty: Factory-backed parts coverage. In most cases, NETGEAR honors RMA within 2–3 weeks; field replacement is faster if you carry a spare in inventory.
- Plug-and-Play Form Factor: No software licenses, no firmware update cycles, no management platform subscription. Once powered, it requires zero operational touch for years.
Deployment Considerations:
- Cabling is non-negotiable: 10G performance requires Cat6a (copper) or better. We've seen integrators inadvertently use Cat5e runs and watch throughput collapse to gigabit speeds or fail entirely. Budget for proper Ethernet infrastructure — it's half the job.
- No VLAN, no QoS, no traffic shaping. If your network requires broadcast containment, priority queuing, or tenant isolation, place a managed switch upstream or use this unit only on trusted, high-speed trunks where those features are not needed.
- SFP+ transceiver compatibility: if using optical ports, verify your transceiver model works with NETGEAR's hardware. Mismatched transceivers cause link negotiation failures. Test in a lab first.
- Power supply: confirm nameplate voltage and current draw against your facility PDU or UPS output. Undersized power will cause link flapping or intermittent failures.
- No management visibility: you cannot remotely monitor port statistics, LED health, or uptime from a dashboard. You must walk to the device or use external network monitoring tools to infer port health from endpoint behavior.
This is the switch for teams that have one job: move frames fast on trusted links and move on. If you're a security integrator deploying a high-speed camera ingest backbone or a facility team building out server-room trunks, the XS508M-100NAS delivers 10G throughput at a cost and complexity point that's hard to beat. For more managed options across the NETGEAR product line, visit the NETGEAR catalog.
