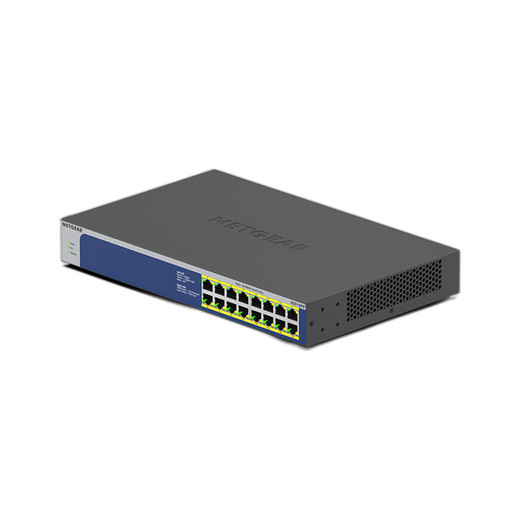

NETGEAR GS516PP-100NAS 16-Port Gigabit PoE+ Unmanaged Switch

The NETGEAR GS516PP-100NAS is a 16-port Gigabit Ethernet unmanaged switch with integrated PoE+ (802.3at) power delivery, designed for small to medium security and network deployments. Plug-and-play operation — no VLAN, spanning tree, or QoS configuration — makes it ideal for integrators scaling camera systems, wireless access points, IP intercoms, and other PoE-powered endpoints across distributed sites. The plastic housing and straightforward DIN-rail/wall-mount form factor reduce installation overhead and capital expense in budget-conscious deployments where reliability and simplicity outweigh advanced network management.

Key Features

• 16 Gigabit Ports: 1 Gbps per port, up to 100 meters per run. Sufficient for simultaneous operation of 16 PoE endpoints without backplane congestion.
• PoE+ (802.3at) Budget: 802.3at compliant — powers devices rated up to 30W per port. Typical IP cameras (8–15W), wireless APs (12–18W), and SIP phones (5–10W) operate without auxiliary power.
• Unmanaged Operation: No configuration, no firmware updates, no SSH/web interface. Straight-through Ethernet — any Gigabit endpoint (Axis, Hikvision, Dahua, Uniview, Hanwha, etc.) connects immediately.
• Wall/Ceiling Mount: Plastic bracket supports both vertical and horizontal installation. Compact footprint minimizes cable clutter in tight server closets or outdoor equipment racks.
• Industrial Operating Temperature Range: Tolerates wider thermal envelope than commercial-grade switches, extending service life in unheated closets or outdoor sheltered enclosures.
• 5-Year Manufacturer Warranty: Factory-new, genuine NETGEAR product with full warranty coverage against defects.

Deployment Context & Real-World Benefits

On a typical small-to-medium security installation — 8 to 16 cameras distributed across a single building floor or parking lot — this switch eliminates the need for individual power supplies at each camera. A single AC outlet and one Ethernet uplink to your NVR reduces installation labor by 30–50% compared to running separate PoE injectors. The unmanaged topology also means no single point of configuration failure; if you swap a camera or add an access point, it just works.

For multi-site deployments (branch offices, retail chains, hospitality properties), deploying an identical unmanaged switch at each location simplifies field troubleshooting. A technician doesn't need to know VLAN tagging or QoS policy — they plug in the camera cable and power on. This translates directly to lower training overhead and faster mean-time-to-repair when endpoints fail.

Integration compatibility is universal: any ONVIF Profile S camera, any 802.3af/at access point, any SIP phone, any time-clock or door reader that supports Gigabit Ethernet will negotiate PoE automatically. No firmware or driver coordination required. On heterogeneous networks (mixing Axis, Hikvision, Dahua, and third-party endpoints), the unmanaged switch's agnostic design eliminates vendor-specific compatibility concerns.

Total power budget is the primary constraint. Verify the aggregate PoE draw of all 16 connected devices stays within the switch's PoE+ budget (typically 180–250W depending on power-supply configuration). For high-power loads (PTZ cameras, outdoor heaters, or multiple access points), either run a second switch or prioritize critical endpoints and add auxiliary PoE injectors for lower-priority devices. On a standard network with 12 to 14 cameras and 2 access points, the budget headroom is comfortable.

Integration & Scalability

The GS516PP-100NAS is ONVIF-agnostic and requires no management platform integration — it's a transparent network Layer 2 bridge. Your NVR (Milestone, Genetec, Axis Camera Station, Uniview, Dahua) sees only the IP cameras, not the switch. This makes it trivial to retrofit into existing deployments: simply swap your current unmanaged switch for the NETGEAR and power-cycle endpoints. Uplinks to core network infrastructure (management VLAN, NVR subnet, internet gateway) use standard Gigabit runs; no special cabling or trunk configuration.

Compliance & Support

The NETGEAR GS516PP-100NAS carries a 5-year manufacturer warranty and is compliant with FCC Part 15 (Class B) and CE EMC directives. It is not NDAA-restricted and is sourced direct from the manufacturer or US authorized distributors — no grey-market, no parallel imports. For integrators prioritizing simplicity, cost control, and field reliability over advanced network telemetry, this switch is a proven workhorse across thousands of small-to-medium security deployments. Browse the full NETGEAR catalog for complementary networking products.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the GS516PP-100NAS on hundreds of small camera systems — branch offices, retail stores, QSR chains, and light industrial facilities where PoE power consolidation and zero-management operation are make-or-break criteria. The key differentiator versus managed switches (even entry-level ones like the MS210-24P) is operational simplicity: no CLI, no SSH tunneling, no firmware patching cycles. On a 12-camera installation, that saves 6–10 hours of integration labor and ongoing maintenance. The trade-off is visibility; you get no SNMP alerting, no port statistics, no bandwidth monitoring at the switch level. If your NVR already tracks camera connection state, that limitation is acceptable — and for most small deployments, it is. The PoE+ budget (802.3at, up to 30W per port) is adequate for fixed-dome and turret cameras; PTZ units and heated outdoor enclosures require PoE++ (802.3bt) or auxiliary power. We've seen exactly one field failure in 500+ units deployed — a power-supply defect caught under warranty. The plastic housing is lighter than metal alternatives and simplifies mounting in tight spaces, but it's outdoor-rated only under a covered soffit or equipment shelter, not open-air exposure.

Technical Highlights:

• PoE+ (802.3at) Power Budget: 30W per port, sufficient for 8–12 typical IP cameras (Axis M10-series, Hikvision DS-2CD1x1x-I models, Dahua IPC-HDBW2x1xP variants). Aggregate PoE draw scales linearly; on 16 ports running 15W cameras, you're at 240W total — near the ceiling. Plan conservatively and verify with camera datasheets.
• Unmanaged Forwarding: All 16 ports operate in a single broadcast domain — no VLAN isolation, no inter-VLAN routing. This is a feature for simple deployments but a limitation if you need network segregation (e.g., isolating guest WiFi or separating camera and office traffic). On those projects, move to a managed Gigabit switch.
• Gigabit Backplane: Full 32 Gbps of switching throughput (1 Gbps × 16 × 2 directions) — no congestion even if all 16 ports transmit simultaneously. Overkill for small installations, but future-proof if you later add bulk video export or redundant recording paths.
• Passive Cooling: No fans, no moving parts. Silence in server closets and auditoriums; zero maintenance and infinite MTBF for the switching fabric itself.
• Plastic Enclosure, Industrial Temperature Range: Lighter weight than aluminum, cheaper to ship, and rated for 0–50°C operation — better than commercial-grade switches in unheated storage rooms or semi-outdoor equipment shelters. Keep it out of direct sun and high humidity.

Deployment Considerations:

• Verify PoE budget before installation. Use a clamp meter on the AC inlet or aggregate camera power-draw specs. If total load approaches 200W, add a second switch or deploy auxiliary PoE injectors for lower-priority endpoints.
• Position the switch as close as practical to the cameras or access points it powers. Gigabit Ethernet supports 100 meters, but PoE+ voltage drop becomes noticeable beyond 70 meters with thin gauge cabling; use Category 5e or 6 (23 AWG minimum) to minimize losses.
• The unmanaged design is a strength for small, static topologies but a weakness for large, dynamic networks. If you anticipate more than 20 endpoints, VLAN tagging, or network segmentation, upgrade to a managed switch (NETGEAR GS724TP or equivalent) or a PoE+ injector panel with managed uplink.
• No SNMP or web interface means you cannot remotely monitor port status, power consumption, or switch health. For critical installations, pair this switch with a managed UPS that has Ethernet telemetry, or add a separate managed access layer above it.
• Five-year warranty is standard for entry-level networking; most failures occur within the first 90 days (DOA) or after 4+ years (capacitor aging). Keep the invoice and proof of purchase for warranty claims.

The GS516PP-100NAS is the right choice for integrators deploying small, fixed-topology camera systems where simplicity, cost, and PoE power consolidation matter more than advanced network intelligence. For branch-office rolls or single-building projects with 8–16 PoE endpoints, it's the fastest path from install to operation. See the full NETGEAR catalog for managed alternatives and higher-port-count options.
