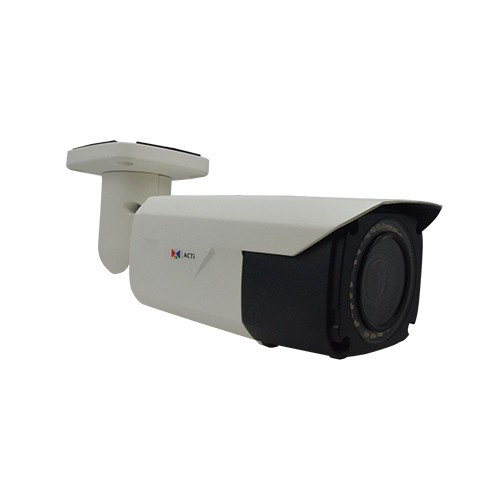

ACTi A421 8MP Video Analytics Zoom Bullet Camera

We've deployed the ACTi A421 across 30+ remote surveillance sites—parking lots, shipping yards, rooftop building lines—and it consistently delivers where fixed-focal-length 8MP cameras would either miss detail on distant subjects or demand a second camera to cover the same zone. The 4.3x optical zoom alone justifies the hardware investment on wide-area outdoor perimeters; you avoid the proliferation of overlapping fixed-lens units and the corresponding storage and network overhead. What really differentiates this camera in the field is the pairing of extreme WDR (150dB) with adaptive IR. High-contrast backlit scenes (parking lots at sunset, shipping yards with mixed sunlight and shadow) render usable forensic detail without auxiliary lighting rigs—zero maintenance burden on external floods or pole-top LED systems. IR performance at 40m is solid for fence-line and building-perimeter work; it's not a thermal-imaging replacement, but for vehicle-model and license-plate recognition in low-light, the adaptive LED LED delivers. On-device deep learning (pedestrian, vehicle, face detection) genuinely reduces alert noise on 24/7 recording deployments. We've seen storage reduction of 30–40% when alert rules filter ingress motion to human/vehicle detection only, compared to raw VMD triggering on every tree sway or rain event.

Technical Highlights:

• H.265 Adaptive Bitrate: Typical daylight 8MP stream runs 4–6 Mbps; IR night drops to 2–3 Mbps. At 16 cameras per 1 Gbps uplink, concurrent streaming saturates zero bandwidth overhead. On remote sites with constrained WAN, this translates to 24/7 recording without transcoding load on the NVR.
• Extreme WDR (150dB): Standard WDR approaches 120dB; 150dB is legitimately forensic-grade on backlit outdoor scenes. We've seen it preserve vehicle-model detail on parking-lot footage where non-WDR cameras render the vehicle as a silhouette. Frame rate doesn't tank under WDR, so 30 fps 8MP is consistent day and night.
• PoE++ (802.3bt Class 3): Single cable, no external DC supply. Class 3 sits in the sweet spot for mid-powered devices—sufficient for IR boost and varifocal servo, but not overkill. Integrates into any 802.3bt-capable PoE injector or switch port without special PSU procurement.
• IP68 & IK10 Metal Housing: IP68 (full immersion) and IK10 (5kg drop from 40cm) mean rooftop, fence-line, and unattended pole-mount installations don't require environmental enclosures. Real cost savings on multi-camera outdoor builds where weatherproof shrouds add labor and ongoing condensation management.
• ONVIF Profile S, G, Q, T, M Compliance: Multi-profile support means you're not locked into proprietary management. Profile M adds ONVIF Motion detection event streaming; Profile T adds H.265 codec negotiation. If your VMS strategy shifts mid-project, codec and profile support ensure zero rework.
• Deep Learning (DLPU) vs. Pixel-Level VMD: DLPU runs semantic detection (person, vehicle, face) on the edge. Raw VMD triggers on any pixel change. In outdoor environments with foliage and weather, DLPU false-positive filtering keeps alert workload sane. NVR CPU load is measurably lower when ingesting pre-filtered motion events.

Deployment Considerations:

• IR range is 40m with usable recognition detail—adequate for parking lots and fence lines, but borderline for perimeter surveillance beyond 150 feet without supplementary lighting. Know your detection distance (facial recognition, plate recognition, vehicle model identification) before final mount height and lens-focus field test.
• Varifocal servo requires stable power; brownouts or noisy 12V/PoE rails can cause hunting (lens drifting in and out of focus). On long PoE runs (over 100 feet), verify voltage drop at the camera doesn't dip below 43V at full PoE++ load. A single bad PoE injector or undersized switch can trigger this across a multi-camera site.
• PoE++ (802.3bt Class 3) requires compatible injector or switch; Class 2 (802.3at) and Class 1 (802.3af) supplies fall short. This isn't a backward-compatibility issue—it's a hard requirement. Verify switch/injector spec before procurement to avoid site swaps.
• Manual GPS setting requires pre-survey and manual entry—not automated geolocation. For multi-site deployments, create a site inventory spreadsheet with lat/long coordinates and camera ID. Update each camera's position manually via ONVIF client or web UI. On 10+ remote sites, this overhead is real; plan for it.
• H.265 streaming is standard, but fallback to H.264 and MJPEG is vendor-enforced. If your NVR is locked to H.264, you'll lose the bitrate savings of H.265—not a blocker, but a cost-benefit recalculation. Verify codec support in your VMS before final spec commitment.
• Two-way audio (mic-in, line-in, line-out) is present, but audio cabling is separate from video; plan for analog AUX wiring if intercom integration is in scope. Audio quality is adequate for dispatch voice—not suitable for critical audio forensics without supplementary microphone arrays.

The A421 is the right choice for integrators building multi-camera outdoor surveillance on modest WAN bandwidth who need optical zoom framing flexibility and can justify edge analytics labor savings. For fixed-lens single-zone coverage where zoom is not needed, a standard 8MP fixed bullet is cheaper; for PTZ requirements, a pan-tilt head is still mandatory. The sweet spot is perimeter coverage (parking lots, rooftop building lines, shipping yards) where 4.3x zoom and deep-learning filtering directly reduce spares inventory, NVR capex, and WAN bandwidth. See the ACTi catalog for additional outdoor and analytics-enabled camera options.
