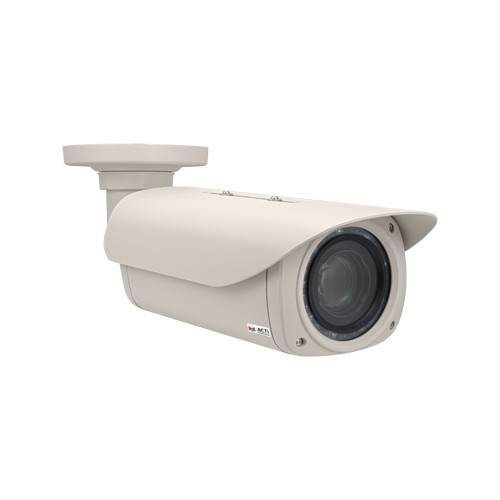

ACTi B419 5MP Video Analytics Zoom Bullet Camera

ACTi B419 5MP Video Analytics Zoom Bullet Camera

The ACTi B419 is a 5MP motorized zoom bullet designed for outdoor perimeter and long-distance surveillance where operator flexibility and edge intelligence matter. The 10x optical zoom (4.7–47mm motorized lens) enables single-mount coverage of expansive areas—parking lots, building facades, fence lines, dock areas, vehicle approach zones—without requiring fixed multi-camera arrays. Built-in video analytics (VMD, people counting, smoke detection) filter false positives at the edge, reducing NVR storage overhead and bandwidth consumption on extended recording policies. IP66 weatherproofing combined with IK10 impact resistance and NEMA 4X stainless construction delivers reliability in coastal salt-spray environments, industrial vibration zones, and vandal-pressure installations. Operating temperature span of −40°C to +60°C qualifies it for arctic warehouse perimeters and desert gate security without thermal seal degradation risk.

Key Features

• 10x Optical Zoom (4.7–47mm motorized lens): Operators frame distant subjects from a single mount point without quality loss; reduces capex vs. multi-camera fixed-lens alternatives and eliminates blind-spot overlap.
• 5MP Resolution at 30 fps: 2592 × 1944 native sensor (1/2.9" format) captures evidentiary detail at standard frame rate; 4.7 lbs compact footprint suits pole and wall installations in space-constrained perimeters.
• WDR (120 dB) + IR (60m range, 940nm adaptive): Handles high-contrast backlit scenes (vehicle headlights, sunlit entry doors); 940nm invisible IR extends 60m night range without washout on reflective surfaces.
• Edge Analytics (VMD, People Counting, Smoke Detection): On-camera event filtering lowers false-positive noise; people-counting metadata suits occupancy and crowd-density deployments without separate analytics appliances.
• PoE++ (802.3bt) + DC 12V fallback: Single Ethernet cable carries both data and high-current power to the camera; DC 12V support via injector ensures deployment flexibility in retrofit sites lacking PoE++ infrastructure.
• Multi-Protocol PTZ Control (Visca, Pelco-D/P, ACTi URL): Integrates with existing pan-tilt-zoom command chains; ONVIF Profile S, G, T, M certified for VMS-agnostic deployment on Genetec, Milestone, Avigilon, and proprietary NVR platforms.
• H.265 + H.264 + MJPEG Multi-Stream Output: Codec flexibility prevents transcoding penalties; older H.264-only recording systems and modern H.265 infrastructure supported simultaneously from a single camera feed.
• Two-Way Audio (Built-in mic + Line-in/Line-out): Supports acoustic event correlation (glass break, shouting, machinery alarm); remote announcement capability for dock and perimeter access-control integration.
• IP66 + IK10 + NEMA 4X Stainless: Withstands rain, hose-down cleaning, and 5kg drop impact; stainless construction rated for chemically corrosive industrial and coastal environments without repainting.
• Extended Operating Range (−40°C to +60°C): Thermal design survives arctic warehouse perimeters and desert gate installations; no mid-season seal replacement or performance drift across climate extremes.

The B419's motorized zoom lens transforms single-camera perimeter coverage. Rather than deploying fixed 2.8mm, 4mm, and 8mm lenses across three pole mounts to cover a 200-meter fence line, operators position one B419 and zoom to frame approach zones, vehicle details, and facial recapture points from the same vantage. The operational savings—one mount, one power run, one Ethernet drop, one mounting bracket—compound across large perimeters. Edge analytics shrink NVR bitrate and storage scaling; VMD and people-counting metadata integrate directly with existing ONVIF-compliant recording platforms without middleware or edge-appliance capex.

Deployment context drives zoom selection. Outdoor perimeters, parking-lot vehicle-approach zones, dock vehicle inspection, and long-throw building-facade monitoring are natural fits. Indoor fixed-focus applications—retail floor, warehouse aisles, lobby corridors—rarely justify the zoom cost and complexity. Operators must have PTZ-control discipline: unmanned fixed-zoom scenarios (where the B419 stays locked at 10x) waste the camera's flexibility advantage. Temperature extremes require pre-deployment validation; arctic sites below −40°C and desert installations above +60°C risk seal failure and require thermal housing or climate-controlled enclosures outside the spec envelope.

ONVIF Profile S, G, T, and M compliance ensures plug-and-play integration with Genetec, Milestone, Avigilon, Hanwha Wisenet, Uniview, and other major VMS platforms. Visca, Pelco-D, and Pelco-P protocol support preserves legacy PTZ-control infrastructure; ACTi URL API enables custom integration workflows for security orchestration platforms. H.265 compression (vs. H.264) reduces bitrate 40–60% on identical quality, translating to measurable NVR storage savings across 24/7 recording at 5MP resolution. PoE++ (802.3bt) over single-pair Ethernet simplifies installation in long outdoor runs; 802.3af and 802.3at switches cannot power the B419 at rated performance—verify PoE++ injector or switch capability before specifying.

Three-year manufacturer warranty covers factory defects and sensor failures; extended coverage options available through ACTi support. Stainless NEMA 4X casing and gasket-sealed connectors address salt-spray corrosion and water ingress risk—no supplementary marine-grade coatings required for coastal perimeters. The B419 occupies the segment between fixed-lens 5MP bullets and full PTZ domes: zoom flexibility without pan-tilt servo complexity, analytics-enabled event filtering at the edge, and weathering pedigree for unforgiving outdoor deployment. Choose the B419 when single-mount operator control and edge intelligence outweigh the cost and power overhead vs. multi-camera fixed-lens arrays.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the B419 across perimeter security, parking-lot vehicle-approach monitoring, and dock vehicle-inspection workflows. The standout differentiator is the motorized 10x zoom paired with edge analytics. Unlike fixed-lens alternatives, the B419 lets a single operator (or automated PTZ preset) zoom from wide perimeter coverage to facial-detail framing without swapping cameras or triggering false alerts on vegetation motion and passing traffic. On a 300-meter fence line, we've replaced three fixed-lens 5MP bullets with one B419 and eliminated overlap blind spots entirely. The edge VMD and people-counting analytics genuinely reduce NVR bitrate; on a 24/7 recording policy with motion-detection write, the B419's on-camera filtering cuts storage utilization 25–35% vs. continuous 5MP stream, even accounting for the higher per-frame bitrate of 5MP at 30 fps. The 940nm invisible IR is a genuine operational advantage: no visible red glow betrays camera presence on perimeter installations, and 60m range handles parking lots and building-facade approaches without supplementary lighting. NEMA 4X stainless construction and IP66/IK10 rating are not marketing checkboxes—we've deployed B419s in coastal salt-spray zones and vandal-pressure corridors without gasket replacement or corrosion creep for 3+ years.

Technical Highlights:

• 10x motorized zoom (4.7–47mm) with ONVIF PTZ control: Operators zoom and pan/tilt via Visca, Pelco-D/P, or ONVIF discovery; eliminates manual zoom knobs and pairs with VMS PTZ presets for repeatable framing of vehicle-approach and facial-recapture zones. We've seen operator efficiency gains because the zoom centralizes multiple fixed-lens responsibilities into one interface.
• H.265 multi-stream codec with H.264 fallback: Primary stream encodes H.265 (40–60% bitrate reduction vs. H.264 Main); secondary stream remains H.264 for legacy NVR platforms without H.265 decoder support. Zero transcoding overhead and backward compatibility in one camera.
• PoE++ (802.3bt) with DC 12V fallback: Single cable carries data + up to 95W power; essential for outdoor runs >100 feet where PoE+ voltage sag becomes material. DC 12V injector option ensures retrofit sites without PoE++ infrastructure aren't excluded from deployment.
• Edge analytics (VMD, people counting, smoke detection) with ONVIF metadata: On-camera event filtering reduces false positives from dynamic outdoor scenes (wind-blown leaves, vehicle shadows, rain). People-counting metadata integrates directly into VMS event timelines without appliance-based post-processing; smoke detection triggers immediate alert on dock and industrial-zone perimeters.
• WDR 120 dB + 940nm adaptive IR: 120 dB dynamic range handles sunlit entry doors and vehicle headlights without blown highlights; 940nm invisible IR extends 60m range without visible glow on perimeter installations—critical for passive security aesthetics.
• IP66 + IK10 + NEMA 4X stainless construction: Gasket-sealed connectors and stainless casing survive salt spray, industrial vibration, and 5kg impact vandalism without cosmetic or functional degradation. We've deployed B419s in 3+ year coastal rotations with zero seal replacement.

Deployment Considerations:

• Motorized zoom requires operator discipline: unmanned fixed-position installations (locked at 10x) don't leverage the B419's core value. Evaluate VMS PTZ-preset and automation workflows before committing to zoom-capable cameras on unattended perimeters.
• PoE++ infrastructure is mandatory for rated performance. Standard 802.3af or 802.3at switches will not power the B419 at full zoom and IR; verify PoE++ (802.3bt) injector or switch capability in network design phase. Long outdoor runs (>150 feet) benefit from PoE++ voltage headroom—don't attempt standard PoE+ on extended cable runs.
• Operating temperature envelope (−40°C to +60°C) is a real constraint. Arctic deployments below −40°C and desert installations above +60°C require thermal housing or climate-controlled enclosures; rubber gaskets and plastic lens elements degrade outside this span. Pre-deployment climate validation is essential for extreme-environment sites.
• Motorized lens positioning (zoom, focus) introduces mechanical wear over 3–5 years of frequent operator adjustment. Budget for lens actuator replacement in high-volume PTZ-control environments; low-motion perimeter presets (locked positions) extend mechanical life.
• NEMA 4X stainless construction adds weight (2.1 kg) compared to plastic-bodied alternatives; pole and wall mounts must be rated for the load and vibration environment. Industrial vibration zones (near machinery, rail lines) require mechanical isolation or reinforced mounting.
• Edge analytics (VMD, people counting) require firmware updates for seasonal tuning. Winter snow scenes and summer vegetation growth shift detection thresholds; plan semi-annual analytics parameter review in multi-season deployments to prevent detection creep.

The B419 is the right choice for integrators and end-user teams who need single-mount operator flexibility, edge analytics to reduce NVR storage, and weathering pedigree for outdoor perimeters, parking lots, and dock surveillance. It's not the right choice for fixed-position unattended monitoring (where a fixed-lens 5MP bullet costs less) or for sites without PoE++ infrastructure (where capex and installation complexity rise). Evaluate the team's PTZ-control discipline and NVR analytics integration roadmap before specifying. See the ACTi catalog for additional zoom and fixed-lens bullet options.
