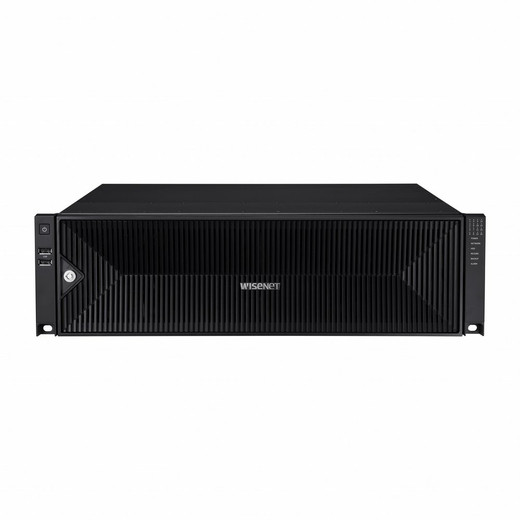

Hanwha PRN-3200B4-32TB 32-Channel 8K NVR
The Hanwha PRN-3200B4-32TB is an Intel-based 32-channel 8K network video recorder engineered for large-scale IP surveillance deployments. With support for up to 32MP resolution per channel and 400 Mbps recording bandwidth, this enterprise-grade NVR delivers the performance and reliability required for data centers, distributed surveillance networks, and mission-critical security integrations. Built with dual RAID 5/6 support and automatic recovery capabilities, it provides license-free recording with fault tolerance across demanding surveillance environments.
Key Features
- 32-channel network camera input supporting up to 32MP resolution per channel
- 400 Mbps recording bandwidth in both distributed and RAID mode
- H.265, H.264, MJPEG, and WiseStream codec support for flexible compression
- Dual-stream recording with normal, scheduled, event, and bookmark modes
- 16 fixed internal SATA HDDs (up to 10TB per drive) with RAID 5 & 6
- Automatic Recovery Backup (ARB) for enhanced fault tolerance
- Dual HDMI display outputs: 4K @ 30Hz and 1080p @ 60Hz
- Up to 36-division multi-screen display with dynamic layout and clone mode
- Web UI 2.0 with no plugin requirement for remote access
- 64 Mbps simultaneous playback across all 32 channels
- Support for up to 4 simultaneous users (1 local, 3 remote)
Technical Performance
The PRN-3200B4-32TB delivers 400 Mbps recording bandwidth during normal RAID operation, with 320 Mbps maintained during RAID degrade or rebuild scenarios. H.265 compression enables efficient storage utilization across the 32-channel architecture, while dual-stream recording ensures simultaneous high-quality archival and real-time playback. Dynamic event handling supports pre/post-event recording, and the system accommodates resolution ranges from 32MP down to CIF for granular quality control per channel or event type.
Display & Access
Dual HDMI configuration provides 4K primary display at 3840×2160 @ 30Hz and secondary 1080p display at 1920×1080 @ 60Hz. Local multi-screen viewing supports 1/2H/2V/3V/4/6/8/9 layout configurations, while clone mode and expand mode offer flexible operational dashboards. The plugin-free Web UI 2.0 enables remote monitoring with up to 80 simultaneous remote connections, supporting intuitive playback and search functions across all 32 channels at 64 Mbps aggregate bandwidth.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PRN-3200B4-32TB represents a purpose-built solution for organizations managing large-scale surveillance infrastructure. The 32-channel, 32MP-capable architecture with 400 Mbps recording bandwidth addresses high-density deployments without performance compromise. RAID 5/6 with Automatic Recovery ensures business continuity in multi-drive failure scenarios—critical for facilities where downtime impacts security posture or compliance.
The H.265 codec support reduces storage cost per terabyte while maintaining 8K-class image fidelity. Support for 4 simultaneous users with plugin-free Web UI simplifies IT management and reduces deployment friction in corporate environments. This platform is ideal for organizations requiring fault-tolerant, license-free recording at enterprise scale without proprietary codec restrictions.
Ideal Applications
- Enterprise data centers and server facilities
- Large retail chains and distribution centers
- Transportation hubs and logistics networks
- Government and critical infrastructure sites
- Multi-site distributed surveillance networks
