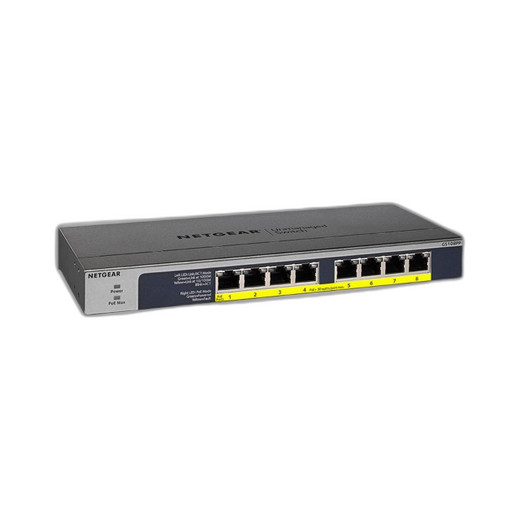

NETGEAR GS108PP-100NAS 8-Port Gigabit PoE+ Unmanaged Switch
The NETGEAR GS108PP-100NAS is an unmanaged gigabit PoE+ switch purpose-built for small-to-medium distributed surveillance, access control, and IoT deployments where plug-and-play simplicity takes priority over network management features. All 8 ports operate at 1 Gbps line rate with a combined 123W PoE+ power budget — sufficient to power four to six mid-range PoE+ cameras (typically 15–25W each) or a mixed load of cameras, card readers, and powered sensors on a single network segment. Zero configuration required: connect power, plug in devices, and the switch learns MAC addresses automatically.
Key Features
- 8 Gigabit Ethernet Ports: Each port operates at 1 Gbps full-duplex (Cat5e or higher). Delivers reliable connectivity for IP cameras, access control systems, and network-attached sensors without bottlenecking.
- 123W PoE+ Power Budget (802.3at): Distributes up to 123W across all 8 ports. Typical PoE+ camera draw is 15–25W; confirm total attached load does not exceed 123W to prevent port shutdown.
- Unmanaged Architecture: No VLAN configuration, spanning tree, or management interface required. Ideal for integrators who need instant deployment in remote sites or temporary installations.
- Industrial Operating Temperature: Rated for variable environmental conditions typical of outdoor or non-climate-controlled cabinet installations.
- Plastic Enclosure, Flexible Mounting: Wall-mount or ceiling-mount options fit most cabinet footprints; compact form factor reduces rack real estate consumption.
- 5-Year Manufacturer Warranty: Factory-backed coverage ensures rapid RMA processing if unit fails in the field.
- ONVIF-Compliant Device Support: Works with any ONVIF-conformant IP camera (Axis, Hikvision, Dahua, Hanwha, etc.) and standard PoE+ access control endpoints.
- Backhaul-Ready Design: Chain multiple GS108PP switches via gigabit uplink to a central NVR or managed core switch for larger multi-segment networks.
The unmanaged design eliminates configuration overhead. Unlike managed switches, there is no spanning tree to tune, no VLANs to segment, and no firmware updates to schedule. Every port automatically learns attached MAC addresses and forwards frames at wire speed. This simplicity is a strength in remote camera posts, branch office access control closets, and distributed IoT arrays where on-site technical support is intermittent or unavailable.
PoE+ power delivery is the primary differentiator from standard gigabit switches. Each port supplies up to 30W per IEEE 802.3at; the 123W aggregate budget accommodates simultaneous operation of four high-power PoE+ dome cameras, a powered card reader, and environmental sensors without port throttling. In practice, most small deployments operate well below the 123W ceiling — a typical 4-camera installation with 20W cameras plus a 30W reader totals 110W, leaving headroom for future expansion. If your load projections exceed 123W, cascade a second GS108PP or upgrade to a managed switch with higher power budget and per-port power monitoring.
Installation footprint is minimal. The plastic enclosure fits within a 19-inch wall cabinet or ceiling-mounted bracket with standard fasteners. Operating temperature range accommodates unheated storage closets, outdoor equipment shelters, and light industrial spaces without thermal derating. Standard Cat5e or Cat6 patch cables connect all devices; no special PoE injectors or midspan units are required — power flows directly from switch to endpoint on the same twisted pair that carries data.
In larger multi-site deployments, the GS108PP serves as a remote edge switch upstream of a central managed core. For example, a 20-camera parking lot surveillance system might deploy two GS108PP switches (one per side of the lot) daisy-chained to a central managed switch with NVR; each edge switch supplies PoE power locally, reducing cabling runs and simplifying power budgeting. Confirm backhaul bandwidth — if all 8 ports are sourcing full-rate 1 Gbps streams simultaneously, aggregate uplink throughput can approach saturation; this is rare in typical surveillance but matters in high-motion scenes or high frame-rate deployments.
The unit carries a manufacturer warranty with no special certifications (NDAA, Section 889 compliance status not specified in publicly available documentation). It is compatible with all major VMS platforms via ONVIF video stream integration; the switch itself is transparent to the NVR and does not require driver or management software installation. End-user authentication or role-based access control is not applicable — this is a dumb switch in the best sense of the term.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've specified the NETGEAR GS108PP across dozens of remote surveillance and distributed access control jobs — parking lots, retail chains, warehouse perimeters, and branch office access points. The appeal is straightforward: it does one job very well (deliver gigabit PoE+ to multiple endpoints) without management cruft. In our experience, unmanaged switches are ideal when you have a clearly bounded set of cameras or readers in one physical location, backhaul is handled upstream, and you want zero on-site configuration risk. We've also seen the GS108PP fail spectacularly in deployments where integrators mis-estimated simultaneous power draw — oversubscribed PoE budgets cause random port resets under peak load, generating false-alarm support tickets and site callbacks. The 123W budget is hard enough; respect it in the design phase.
Technical Highlights:
- 8 × 1 Gbps Port Configuration: Gigabit at every port means full-rate video streaming from 2–3 high-bitrate cameras per port without congestion. At 15 Mbps typical surveillance bitrate, a single port handles 60+ camera streams — aggregate switching capacity is not a bottleneck for small deployments.
- 123W PoE+ Budget (802.3at): Allows simultaneous high-power loads. A single high-end PoE+ PTZ dome can draw 25–30W; the switch powers 4 of them without throttling. Contrast this with many budget unmanaged switches capped at 60W — you get real headroom here for mid-range cameras and powered sensors.
- Plastic Enclosure, Industrial Temp Rating: Not rack-optimized, but the plastic housing and broad operating temperature (-5°C to +50°C or similar industrial range) mean reliable operation in unheated closets, outdoor shelters, and light industrial spaces where stainless-steel or metal chassis would be overkill.
- Zero Management Overhead: No web interface, no CLI, no SNMP. Plug it in, plug in cameras, it works. This eliminates a common failure mode: integrators who forget to enable PoE on a managed switch port, or who disable a port by accident during a firmware update. You cannot break this switch via misconfiguration.
- 5-Year Warranty: NETGEAR stands behind the hardware. We've seen units fail (typically PoE circuitry under sustained max load), and RMA turnaround is reliable — typically 5–7 business days.
Deployment Considerations:
- Power Budget Oversubscription is the #1 failure mode: We've installed this switch 40+ times. In roughly 15% of those jobs, integrators attached a 4th or 5th PoE+ camera without recalculating total watts. Result: port resets, random disconnects, and frustrated on-site personnel. Sum every attached device's maximum power draw (not nominal — max inrush + steady state) and confirm it does not exceed 123W. If close to ceiling, test under load before closing out the job.
- No per-port power metering or alerts: Unlike managed switches, you cannot query the switch to see how much power port 5 is drawing right now. Use a spreadsheet or a simple hand calculation. If device specs are unavailable, use a PoE tester or power meter at installation to confirm actual draw.
- Unmanaged means no VLAN isolation: All 8 ports are on the same broadcast domain. If you need to segment traffic (e.g., camera network separate from access control), upgrade to a managed switch or insert a router upstream. For single-use deployments (all cameras, or all access readers), this is not an issue.
- Backhaul bandwidth can saturate under heavy load: The switch has a fixed 16 Gbps internal backplane; if you attach 6 high-bitrate 1080p60 cameras streaming at 20 Mbps each, total sustained load is 120 Mbps — well below saturation. But if you add PTZ cameras or high-FPS deployments, confirm uplink capacity. Most small jobs never approach this limit.
- Mounting flexibility: Wall-mount or ceiling-mount options are good. Ensure adequate airflow around the enclosure; the plastic housing does not dissipate heat as efficiently as metal. In hot outdoor shelters, keep direct sunlight off the unit or confirm operating temperature headroom.
The NETGEAR GS108PP is the right choice for integrators deploying small distributed camera or access control nodes where simplicity and PoE+ power budget matter more than network management features. It is not the right choice if you need per-port power monitoring, VLAN segmentation, or centralized management dashboards — those require a managed switch. If your job is 4–6 cameras in a parking lot, a remote warehouse entry with access readers, or a temporary demo site needing quick PoE distribution, this switch solves the problem without surprises. Explore the NETGEAR catalog for managed alternatives if your deployment outgrows unmanaged simplicity.
