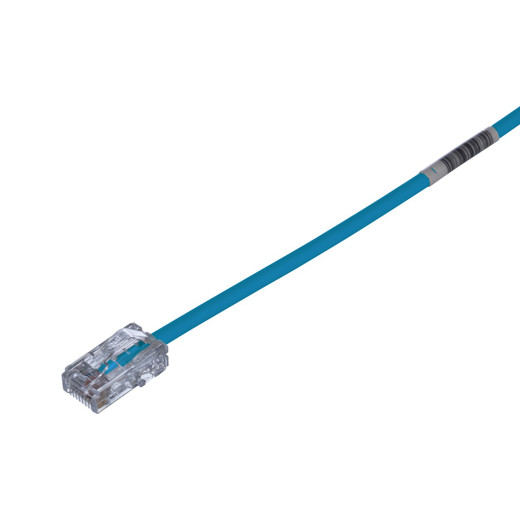

Panduit UTP28CH7BU Cat 5e 28 AWG Patch Cord

The Panduit UTP28CH7BU is a 7-foot Cat 5e UTP patch cord engineered for high-density installations where cable management and port identification matter. Its 28 AWG stranded copper construction measures just 0.150" in diameter—nearly 40% thinner than standard 24 AWG patch cords—enabling cleaner rack builds and improved airflow in congested cabinets. The integrated RapidID barcode system provides unique cable identification for automated port mapping, eliminating manual tracing during moves, adds, and changes. Integrators deploying IP camera networks, datacenter server connectivity, or PoE-powered access systems gain both installation efficiency and long-term maintainability.

Key Features

28 AWG slim profile (0.150" diameter) reduces bundle congestion by 40% vs. standard 24 AWG patch cords

Tangle-free latch design prevents snags on adjacent cables during installation and removal

Pre-installed RapidID barcode enables automated port mapping with Panduit RapidID software

Centered de-embedded plug and integral pair manager optimize electrical performance

100% factory tested for wire map, NEXT, and return loss across 1–100 MHz

Supports PoE++ (802.3bt Type 3/4) for high-power IP cameras, access points, and endpoint devices

Construction follows Panduit's TX5e design standard: unshielded twisted pair (U/UTP) with stranded 28 AWG conductors terminated to Pan-Plug modular connectors on both ends. The centered de-embedded plug geometry ensures consistent insertion loss and return loss performance, while the integral pair manager maintains twist integrity right up to the termination point—critical for maintaining Cat 5e headroom in Gigabit Ethernet and PoE applications. Blue PVC jacket is rated CM/LSZH for plenum and riser installations. Performance exceeds ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D specifications across the full 1–100 MHz bandwidth, with compliance to IEC 60603-7, UL 1863, and CAN/CSA-C22.2 standards. Wiring is compatible with both T568A and T568B schemes.

Deploy this cable in scenarios where space constraints and cable identification drive installation complexity: IP surveillance systems with 48-port PoE switches feeding patch panels, datacenter top-of-rack switches connecting to 1U servers, branch office VoIP installations requiring PoE delivery to desk phones and door intercoms, or access control panels linking to PoE-powered locks and readers. The 28 AWG diameter advantage becomes pronounced in cabinets running 20+ parallel cables—reduced bundle cross-section improves airflow around switch ASICs and simplifies routing through vertical cable managers. The tangle-free latch uses a low-profile release tab that disengages cleanly from neighboring cables, preventing the frustration of stuck plugs in dense patch fields.

The RapidID barcode system differentiates this cable from generic Cat 5e patch cords by embedding a scannable unique identifier directly on the cable jacket. During installation, scan each cable's barcode and log the connected ports using Panduit's RapidID mobile app or PC software—this creates a persistent port-to-cable database that eliminates manual tracing during troubleshooting or MAC events. For integrators managing multi-building IP camera deployments or datacenter environments with frequent server re-provisioning, RapidID converts a 15-minute tone-and-probe exercise into a 30-second database lookup. This cable ships in 10-packs, with each unit individually serialized for inventory tracking and warranty purposes.
