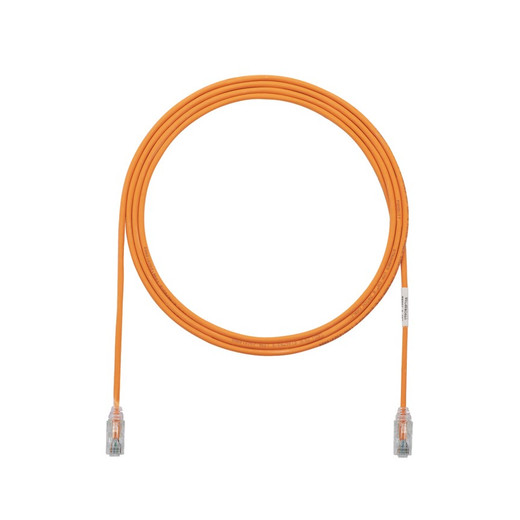

Panduit UTP28SP7OR 28AWG Cat 6 Patch Cord 7ft Orange

Panduit UTP28SP7OR TX6-28 Cat 6 UTP Patch Cord

The Panduit UTP28SP7OR delivers Cat 6 performance in a compact 28 AWG form factor engineered for high-density IP surveillance and structured cabling installations. This 7-foot orange patch cord combines stranded copper construction with Panduit's tangle-free latch design and integrated RapidID barcoding, solving three common installer pain points: cabinet congestion, snag-prone terminations during MACs, and undocumented port assignments. Built to exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards, it supports Gigabit Ethernet, 802.3bt Type 4 PoE (up to 100W in 24-cable bundles), and VoIP deployments where airflow and cable management matter.

Key Features

• 28 AWG stranded copper construction — 0.150" (3.8mm) diameter reduces bundle size by ~40% vs. standard 24 AWG patch cords for improved airflow in high-density racks and IDF closets
• Patented tangle-free latch with snag-resistant boot prevents catches on adjacent cables during moves/adds/changes, eliminating the #1 cause of accidental disconnects in live camera and PoE switch environments
• Pre-installed RapidID barcode enables one-scan port documentation with Panduit's RapidID mobile app — critical for multi-building IP surveillance projects requiring as-built records and MAC order compliance
• Full 802.3bt Type 3/Type 4 PoE support — tested to 100W (Type 4) in 24-cable bundles and 90W (Type 3) in 48-cable bundles, suitable for PTZ cameras, multi-sensor panoramics, and 802.11ax access points without voltage drop concerns
• Exceeds Cat 6 performance specs with centered de-embedded plug design and integral pair manager — verified NEXT, return loss, and wire map on every cord to eliminate field failures from marginal terminations
• CM/LSZH dual-rated jacket meets NEC Article 800 and low-smoke zero-halogen requirements for mixed commercial/healthcare/transport installations where both flame spread and toxic fume regulations apply

The TX6-28 series addresses a longstanding trade-off in structured cabling: standard 24 AWG patch cords deliver robust conductors but create airflow-blocking cable masses in 48-port switch stacks, while thin 28 AWG designs historically sacrificed PoE current capacity or failed to meet Category 6 margins under real-world bundle conditions. Panduit's approach uses stranded 28 AWG conductors with oversized pair lay and a centered plug geometry that maintains the 250 MHz bandwidth and alien crosstalk performance required by TIA-568.2-D, even when 48 cords share a vertical cable manager. The result: installers can run high-density IP camera distribution switches (24–48 PoE+ ports feeding corridor cameras at 25–30W each) without the heat buildup or insertion-loss penalties that plague cheaper thin-gauge patch cords. Each cord ships with factory-installed RapidID labels carrying a unique serialized barcode; when scanned with Panduit's free iOS/Android app during installation, the software logs the switch port, destination device MAC, installation date, and technician ID into a cloud-hosted asset database — eliminating the manual spreadsheet documentation that typically gets skipped on fast-track buildouts and becomes a liability during tenant MACs or after-hours troubleshooting.

Deploy the UTP28SP7OR in IP surveillance IDF closets feeding 12–24 ceiling-mount cameras per floor, access control server racks patching controllers to PoE injectors, or AV equipment rooms where HDMI-over-IP encoders and Dante audio endpoints demand guaranteed Gigabit throughput with minimal cabinet depth. The 7-foot length suits standard rack-to-patch-panel runs in 42U and 45U cabinets (typical vertical cable manager to mid-rack switch span), inter-rack patching in adjacent bays, and under-floor cross-connects in raised-floor datacenters where excess cable slack creates tripping hazards or blocks tile removal. The tangle-free latch uses a low-profile boot that slides past neighboring connectors without snagging — a measurable time-saver during MAC orders where technicians routinely disconnect/reconnect 10–15 ports per change window and traditional snagless boots catch on every adjacent plug. Orange jacket color follows TIA-606-B administration standard for demarcation extensions or non-building cabling, making it ideal for visually segregating IP camera networks from IT data VLANs in converged wiring closets, or marking PoE-dedicated switch uplinks to avoid accidental cross-patching with non-PoE distribution switches.

The UTP28SP7OR carries cULus listing under UL 1863 and CAN/CSA-C22.2 No. 214, meets all IEC 60603-7 modular connector mechanical/electrical specs, and ships RoHS-compliant for integration into LEED and BREEAM-certified building projects. Panduit's 100% performance testing regime — every single cord tested for wire map, NEXT, and return loss before packaging — eliminates the 2–5% field failure rate common with batch-tested commodity patch cords, translating to zero truck rolls for "bad cable" diagnostics on IP camera or access point installations where the cord is often the last component suspected. For commercial security integrators managing 50+ camera installs with tight punchlist deadlines, and IT contractors facing airflow audit failures in over-cabled IDFs, the combination of verified performance, built-in asset tracking, and space-saving design makes this the practical choice over generic Cat 6 patch cords that meet the spec sheet but fail the install environment.
