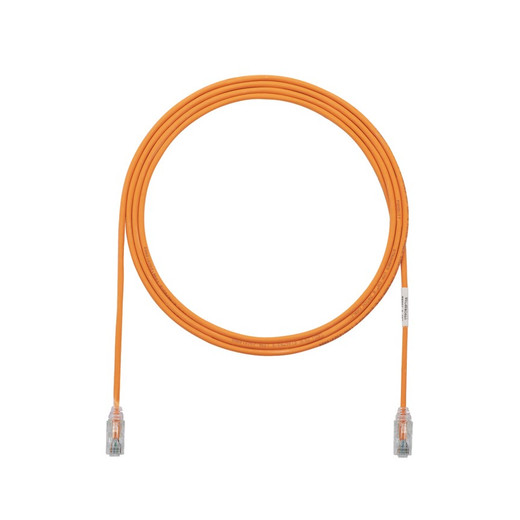

Panduit UTP28SP2OR 2-ft 28AWG Cat 6 Patch Cord Orange

Panduit UTP28SP2OR Cat 6 UTP Patch Cord

The Panduit TX6-28 UTP28SP2OR is a 2-foot Category 6 unshielded twisted pair patch cord engineered for high-density datacenter and telecommunications installations where cabinet space and airflow are critical. Its 0.150-inch (3.8mm) diameter 28 AWG stranded copper construction reduces bundle diameter by approximately 25% compared to standard 24 AWG cords, allowing you to route more cables through congested pathways, maintain bend-radius compliance in tight spaces, and improve rack cooling efficiency. The patented tangle-free latch design eliminates the snagging and breakage common during moves/adds/changes, and the orange jacket provides instant visual identification for VLAN segmentation or circuit tracing. Factory-terminated with Panduit's centered de-embedded modular plugs and integral pair managers, each cord ships with pre-installed RapidID barcodes for automated port mapping and asset tracking.

Key Features

• 28 AWG stranded copper construction — 0.150" diameter reduces bundle volume, improves airflow in densely packed racks and cabinets
• Patented tangle-free latch — prevents snags on adjacent cables during installation and service, speeds MAC operations without plug damage
• RapidID barcode integration — pre-applied asset tracking labels work with Panduit RapidID software for automated port documentation and circuit tracing
• 100% factory performance tested — every cord verified for wire map, NEXT, and return loss; ships with individual test report
• Centered de-embedded plug with integral pair manager — maintains pair geometry through termination, ensures consistent 550 MHz performance to TIA-568.2-D Category 6 spec
• CM/LSZH dual-rated jacket — meets NEC Article 800 plenum alternative requirements and low-smoke zero-halogen standards for international deployments
• IEEE 802.3bt Type 3/4 PoE compliant — supports 60W/100W PoE delivery in 24-cable bundles without derating (48-cable bundles support 802.3af/at)

This cord is built on Panduit's Pan-Net stranded 28 AWG U/UTP cable, which exceeds ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801 Class E channel performance requirements when installed per manufacturer guidelines. The centered de-embedded plug design positions the PCB traces to minimize pair untwist at the termination point, a critical factor in maintaining NEXT margins above 40 dB at 250 MHz. The integral pair manager inside the plug boot holds each pair in its correct geometry through the transition from cable to contacts, preventing the pair-skew and impedance discontinuities that cause return loss failures in field-terminated solutions. Every cord undergoes automated wire-map, near-end crosstalk, and return loss testing before shipping; Panduit includes the serialized test report with each carton. The patented tangle-free latch uses a low-profile tab design that sits flush with the plug body, eliminating the catch points that break standard latches when you pull cables through crowded patch panels or bundle wraps. The latch release is accessible from the top, so you can depress it with one finger while pulling the cord straight back — no twisting or angling required.

In datacenter top-of-rack and end-of-row switch deployments, the 28 AWG cable diameter directly impacts cabinet density and cooling. A 48-port switch patched with standard 24 AWG cords typically generates a 3–4 inch diameter bundle blocking the front or rear airflow path; the same 48 cords in 28 AWG reduce the bundle to roughly 2.5 inches, often the difference between maintaining manufacturer-specified airflow and triggering thermal shutdown warnings. The reduced diameter also eases bend-radius compliance in the tight 90-degree turns common at cabinet entry points and vertical managers — you can route these cords through standard 2-inch finger ducts without exceeding the 1-inch (4× cable diameter) minimum bend radius. The RapidID barcodes work with Panduit's port-mapping software to automate MAC documentation: scan the barcode at each end of the cable run, and the software logs the connection in your DCIM database, eliminating the manual spreadsheet tracking that causes 30–40% of all tier-1 trouble tickets. The orange jacket color follows TIA-606-B administration standard recommendations for demarcation circuits or designated VLANs; pair it with other TX6-28 colors (blue, yellow, green, red, etc.) to implement a consistent visual layer-identification scheme across your infrastructure.

The cord supports Gigabit Ethernet (1000BASE-T), Fast Ethernet (100BASE-T), ATM up to 1.2 Gb/s, VoIP, analog/digital video, and IEEE 802.3bt Type 3 (60W) and Type 4 (100W) Power over Ethernet installations per the TIA-1096-A standard — critical for high-power devices like PTZ cameras, multi-radio access points, and LED lighting controllers. In PoE applications, bundle size directly affects conductor heating: TIA-1096-A allows 24-cable bundles of 28 AWG at ambient temperatures up to 45°C without derating for Type 3/4, and 48-cable bundles for lower-power 802.3af/at (25.5W). The CM/LSZH jacket is cULus Listed under UL 1863 and meets CAN/CSA-C22.2 No. 214 for use in air-handling spaces as a plenum alternative; the LSZH rating satisfies IEC 60332-1 and 60754 flammability and smoke-toxicity requirements common in European and Asia-Pacific tenders. Panduit backs the cord with its standard manufacturer warranty when installed per TIA-568 guidelines. For integrators managing IP camera networks, access control panels, or converged building-automation systems where cabinet density, PoE power delivery, and rapid troubleshooting are non-negotiable, this 2-foot 28 AWG patch cord provides the field-proven reliability and installation efficiency that keeps projects on schedule and service calls to a minimum.
