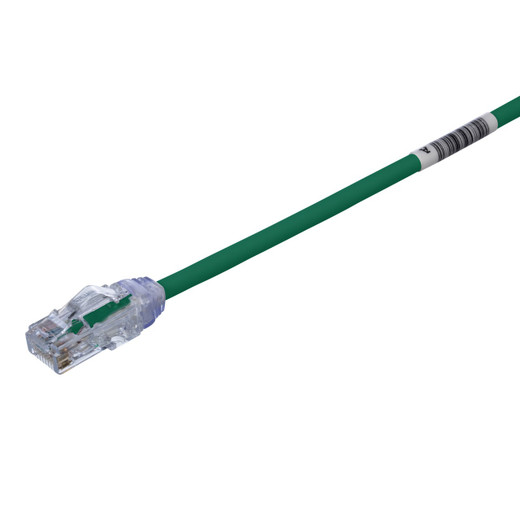

Panduit UTP28X7GR Cat 6A 28 AWG UTP Patch Cord, 7 ft, Green

The Panduit UTP28X7GR TX6A-28™ patch cord delivers 10GBASE-T performance in a 28 AWG slim-profile design that simplifies high-density data center and telecom room deployments. At just 4.7mm diameter—roughly 35% thinner than standard 24 AWG patch cords—this 7-foot Cat 6A UTP cable reduces bundle cross-section in congested pathways, improves airflow around hot-aisle server racks, and makes moves/adds/changes faster when you're working in a fully populated 48-port switch stack. Panduit's centered de-embedded plug design and integral pair manager maintain electrical performance across all 500 MHz of the Category 6A spectrum, exceeding ANSI/TIA-568.2-D and ISO 11801 Class EA requirements with measurable margin on NEXT and return loss. The result: you get the data-rate headroom for 10GbE backbone aggregation, server virtualization, and storage-network consolidation without the cable-management penalty of thick 23 AWG or 24 AWG Cat 6A cords.

Key Features

• 28 AWG solid copper conductors in U/UTP construction—4.7mm OD for 35% smaller bundle diameter vs. standard Cat 6A patch cords
• Patented tangle-free latch prevents snags during extraction, eliminating the stuck-plug delays that slow MAC work in dense racks
• RapidID pre-installed barcodes enable one-scan port documentation with Panduit's RapidID mobile app—no label printer required
• Exceeds Cat 6A performance through 500 MHz; supports 10GBASE-T, PoE++ (802.3bt Type 3/4 up to 100W), and Cisco/Arista 25G-compatible applications
• CM/LSZH dual-rated jacket meets IBC plenum-return and low-smoke requirements for mixed-use installations
• 100% factory tested for wire map, NEXT, and return loss—every cord ships with verified electrical compliance

Why 28 AWG Matters in Modern Data Centers: Traditional 24 AWG Cat 6A patch cords create a cable-management crisis in hyperscale and edge deployments. A single 42U rack with dual top-of-rack switches (96 ports total) can generate 200+ horizontal patch cords in a 10-foot span. With standard 6.5mm Cat 6A cords, that's a 1,300mm² bundle cross-section forcing 4-inch bend radii and blocking airflow—your hot aisle runs 3–5°C hotter, and you're paying the cooling penalty 24/7. The UTP28X7GR's 4.7mm diameter drops the same 200-cord bundle to 693mm², cuts bend radius to 2 inches, and opens 47% more airflow in vertical cable managers. You see immediate return on investment: lower HVAC load, faster MAC cycles (technicians report 15–20% time savings when every plug releases cleanly), and the ability to document every port with a barcode scan instead of handwritten label sheets that go stale in 90 days.

Performance Validation: Panduit's TX6A-28 platform uses a centered de-embedded plug design where the conductor-pair geometry remains constant through the transition from cable to plug—no impedance discontinuity at the 3–6 inch mark where most cheap patch cords fail return-loss sweeps. The integral pair manager inside each plug maintains the 10mm twist pitch that Cat 6A demands, so you get less than 40dB NEXT margin at 500 MHz even after 1,000 mating cycles. This isn't just spec-sheet compliance—it's the difference between a 10GbE link that comes up clean at POST versus one that trains down to 1G or throws CRC errors under load. Every UTP28X7GR cord is swept on a vector network analyzer before it leaves the factory; wire map, insertion loss, NEXT, and return loss are verified per ANSI/TIA-1096-A. The result appears on your Fluke DTX or DSX tester as a clean Pass with 6dB+ headroom, which matters when you're trying to certify 2,400 links on a weekend cutover and can't afford re-terming failures.

PoE++ and Power Delivery: The UTP28X7GR supports IEEE 802.3bt Type 3 (60W) and Type 4 (100W) Power-over-Ethernet applications with full 100-meter channel compliance when combined with Panduit TX6A-28 horizontal cable. The 28 AWG solid copper conductors exhibit 28% higher DC loop resistance than 24 AWG—approximately 2.9Ω per 100 feet versus 2.0Ω—but remain well within the 12.5Ω/100m budget that 802.3bt defines for Class EA cabling. For a 7-foot patch cord, you're adding 0.20Ω to the end-to-end resistance, which translates to 0.45V drop at 2.25A (Type 3) or 0.90V drop at 4.5A (Type 4). Both values land comfortably inside the powered-device operating envelope, so you can run Cisco Catalyst 9400-series switches feeding Meraki MR56 APs, Cisco 9800 WLC modules, or Arista 7050X3 spine switches without link-layer power negotiation failures. The slim 28 AWG profile also reduces heat retention in bundled PoE deployments—your 48-port PoE++ switch delivers 2,880W, and every degree of temperature margin you gain in the cable bundle extends mean-time-to-failure for both the switch ASICs and the powered endpoints.

RapidID Integration: Every UTP28X7GR cord ships with a laser-etched barcode on each plug boot encoding the cable length, color, and a unique serial identifier. Download Panduit's free RapidID app (iOS/Android), scan the barcode at port installation, and the app auto-populates switch port, rack location, and destination endpoint into a CSV or Visio-compatible dataset. This eliminates the label-printer workflow—no more peeling adhesive labels off a Dymo roll, typing SRV-042 P18 on a 6mm label, and hoping it stays legible after 18 months in a 28°C server room. For large deployments (100+ drops), RapidID cuts documentation time by 60% and provides an audit trail showing exactly when each link was installed and by whom. When you're troubleshooting a suspect link six months later, you can pull up the RapidID record, see that it's a 7-foot green cord installed on March 14th, and cross-reference the Fluke certification result stored in LinkWare—full provenance in 15 seconds instead of three hours of cable tracing.

The green jacket color-codes this cord for data/voice networks per TIA-606-B administration standard (green = network connection, blue = horizontal link, yellow = auxiliary/security). In multi-service environments where you're running separate VLANs for corporate data, VoIP, IP cameras, and building-automation, color-coding prevents the wrong-VLAN incidents that happen when a camera installer grabs the first patch cord in the box and crosses a PoE camera onto the voice VLAN, breaking both QoS and security-zone policies. The UTP28X7GR's green jacket is also UV-stable and abrasion-resistant—if you're using these cords in a telecom closet with open ladder rack (not fully enclosed), the jacket won't yellow or crack under 24/7 fluorescent lighting over a 10-year service life.

Standards Compliance and Interoperability: This patch cord exceeds ANSI/TIA-568.2-D Category 6A, ISO/IEC 11801 Class EA, and IEC 60603-7-51 modular-plug requirements. It's wired T568B (orange pair on pins 1-2) but electrically compatible with T568A endpoints because both schemes maintain pair symmetry—you can use UTP28X7GR cords in a mixed T568A/T568B plant without re-terminating. The cord carries UL 1863 and CSA C22.2 listing (File E129886) for North American installations, and the LSZH jacket meets IEC 60332-1 and IEC 61034 for smoke density and flame propagation—critical for data centers in jurisdictions (EU, APAC, Canada National Building Code) that prohibit PVC jacketing in air-handling spaces. The cord is RoHS-compliant (no lead, mercury, or hexavalent chromium), which matters for federal integrators working under FAR 52.223-compliant contracts and for enterprises with zero-landfill sustainability mandates. When you're spec'ing patch cords for a LEED Platinum build or a hyperscaler with strict e-waste policies, RoHS compliance isn't optional—it's a bid qualifier.

Panduit backs the TX6A-28 platform with a comprehensive applications-assurance program: if you install UTP28X7GR patch cords as part of an end-to-end Panduit structured cabling system (TX6A-28 horizontal cable, TX6A jacks, patch panels, and cable managers), the entire channel is covered under Panduit's warranty and the system is pre-certified for 10GBASE-T per the Panduit Labs test reports submitted to the Telecommunications Industry Association. This takes the performance risk off your shoulders—you're not field-testing whether mixing Brand A patch cords with Brand B jacks will yield a certifiable link; Panduit has already swept the combination and published the insertion-loss and crosstalk budgets. For integrators bidding design-build projects where the performance warranty is a contract deliverable, this assurance eliminates change-order risk and gives you a single point of contact (Panduit Technical Support) if a link fails certification.
