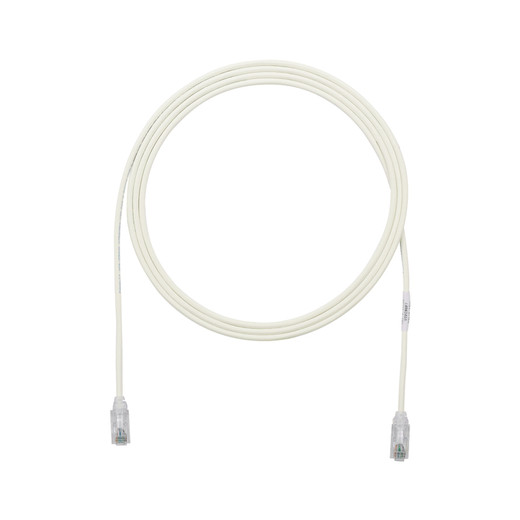

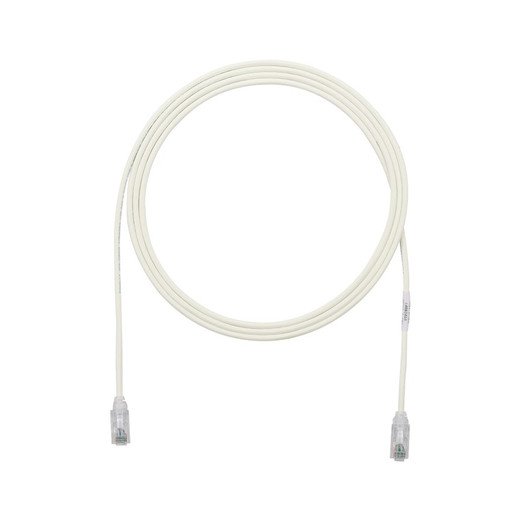

Panduit UTP28SP7GY 7ft Cat 6 Patch Cord
Overview
The Panduit UTP28SP7GY is a 7-foot, 28 AWG Category 6 unshielded twisted pair (UTP) patch cord. Its compact 3.8mm diameter and stranded conductors simplify routing in high-density environments. The cord features a patented tangle-free latch that prevents snags, streamlining moves, adds, and changes. This patch cord is suitable for high-speed data applications including Gigabit Ethernet, VoIP, and digital video, and is rated CM/LSZH for flammability compliance.
Compatibility
This UTP28SP7GY patch cord is designed to exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards up to 250 MHz. It supports 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, digital video, and VoIP systems. It is also rated to support IEEE 802.3af/802.3at PoE applications with up to 48 cables in a bundle, and IEEE 802.3bt types 3 and 4 (PoE++) with up to 24 cables in a bundle, ensuring reliable power delivery for connected devices.
Installation Notes
The cable construction is U/UTP, meaning it is unshielded with four unshielded twisted pairs. The conductor gauge is 28 AWG, and the conductors are stranded for flexibility. The cord is terminated with high-performance modular plugs and features an integral pair manager. The flammability rating is CM/LSZH (Communications Multipurpose/Low Smoke Zero Halogen), meeting specific safety requirements for plenum or riser installations. It is cULus Listed and UL 1863 and CAN/CSA-C22.2 compliant.
