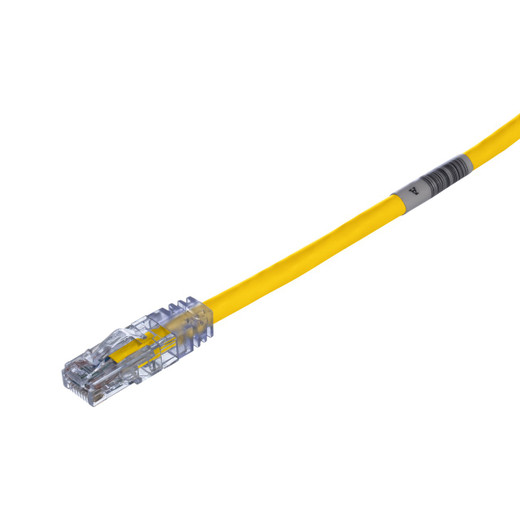

Panduit UTPSP7YLY Cat 6 7ft Yellow Patch Cord

Panduit UTPSP7YLY Cat 6 24 AWG UTP Patch Cord, 7 ft, Yellow

High-density rack and cabinet installations demand patch cords that won't snag during moves, adds, and changes. The Panduit UTPSP7YLY TX6 PLUS Cat 6 UTP patch cord delivers 7 feet of 24 AWG stranded copper connectivity with a patented tangle-free latch that prevents hook-ups on adjacent cables and speeds release in tight spaces. Pre-installed RapidID barcodes simplify port mapping and documentation—critical for integrators managing hundreds of drops across enterprise IT closets, security NVR racks, or converged infrastructure deployments. Yellow jacket provides instant visual identification in color-coded structured cabling schemes.

Key Features

• Patented tangle-free latch prevents snags on adjacent cables and ensures fast, one-handed release in congested patch panels
• RapidID barcode pre-installed on each cord for automated port mapping and asset tracking via Panduit's RapidID software
• Slender strain relief boot enables routing in high-density applications where space between jacks is minimal
• 100% factory tested for wire map, NEXT, and return loss—every cord ships with verified performance
• Centered de-embedded plug design and integral pair manager maintain geometry through the termination for consistent electrical performance
• 24 AWG stranded construction provides flexibility for repeated flexing in movable equipment and frequent repatching

This patch cord exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E requirements across the full 1–250 MHz spectrum, supporting 10BASE-T, 100BASE-T, 1000BASE-T, and 10GBASE-T Ethernet over limited distances as specified in IEEE standards. The U/UTP (unshielded twisted pair) construction is suitable for environments where EMI is controlled and flexibility is prioritized. The centered plug design maintains pair geometry through the termination, reducing return loss and crosstalk—performance characteristics that matter when you're running PoE++ (802.3bt Type 3/4) at 60–90 watts to PTZ cameras or Wi-Fi 6E access points. Stranded 24 AWG conductors tolerate repeated flexing better than solid-core alternatives, making this cord the right choice for equipment that moves (mobile carts, temporary setups) or patch panels subject to frequent repatching. CM flame rating meets plenum-free horizontal and equipment-room applications; for air-handling spaces, spec the CMP-rated variant instead.

Seven-foot length is a common fit for intra-rack connections—NVR to top-of-rack switch, PoE injector to midspan, or camera to wall-mount PoE extender—without excess slack that clutters cable trays. Yellow jacket integrates into TIA-606-B color-coding standards: assign yellow to a specific VLAN (guest network, cameras, building automation), a topology layer (access vs. distribution), or a service type (data vs. VoIP). The RapidID barcode eliminates manual label printing and application; scan the cord during installation, and Panduit's software auto-populates your port schedule with serial number, length, and deployment location. This traceability is invaluable during troubleshooting (which cord feeds which camera?) and audit cycles (proving installed category rating for insurance or compliance). Wired to be compatible with both T568A and T568B schemes, so the cord works regardless of your organization's standard or the equipment's factory preference. Supports IEEE 802.3af (15.4W PoE), 802.3at (30W PoE+), and 802.3bt Type 3 (60W) / Type 4 (90W) PoE++, covering the full range of powered devices from basic IP phones to high-power PTZ cameras and multi-radio access points.

Panduit's TX6 PLUS platform is a field-proven solution in enterprise and institutional networks where uptime and documentation standards are non-negotiable. The tangle-free latch isn't marketing—it's a mechanical advantage when you're working in a 48-port patch panel at arm's length in a crowded MDF. The slender boot profile lets you pack cables tighter without forcing connectors at an angle that degrades performance or breaks the latch. Ships in cartons of 10; order in multiples to match switch port counts and avoid mid-job shortages. For installations requiring plenum rating, lengths beyond 7 feet, or shielded construction for high-EMI environments, Panduit's TX6 PLUS family offers matching variants under different MPNs—but for standard equipment-room and horizontal runs where you need a reliable, traceable, tangle-resistant cord that handles PoE++ without a second thought, the UTPSP7YLY is the spec.
